Double Acting Pneumatic Cylinder Valve Oil Automatic Emergency Stop Work Lock
Double Acting Pneumatic Cylinder Valve Oil Automatic Emergency Stop Work Lock
Specifications
Brand Name :
BRANDO or OEM
Model Number :
10A-5, 10A-5R, 10A-5V, 10A-5K
Certification :
ISO, CE
Place of Origin :
Ningbo, China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
15 workings day after payment
Packaging Details :
Bubble bag, Carton, Wooden case
Part Name :
Pneumatic cylinder with solenoid valve
Material :
Aluminum
Acting type :
Double acting
Voltage :
AC220V
Maximum Stroke :
1500
Working pressure :
0.15--0.9 MPa
Description

Double Acting Pneumatic Cylinder Valve Oil Automatic Emergency Stop Work Lock

Features
• Application of new seal material and buffer structure
• Low start pressure
• Stable operation
• Fine tightness
• Long service life
• Head and rear cover are specially electrophoresis-coated
• Beautiful appearance
• Widely used in automatic devices, e.g. light industry, chemical industry, textile, electron, machinery, etc

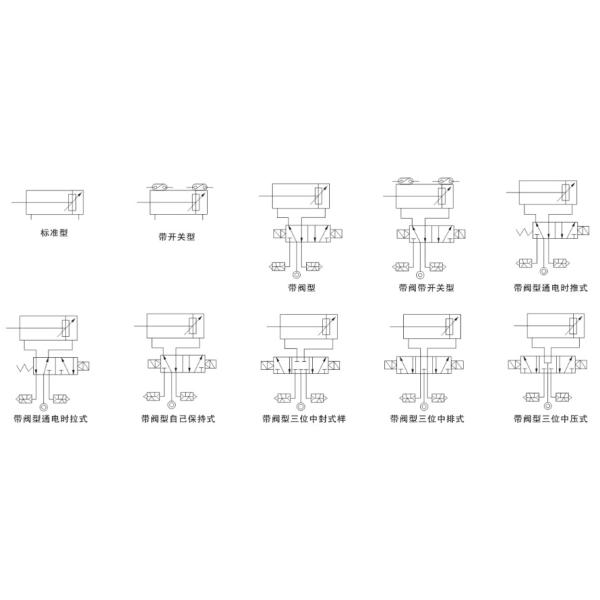

Symbol

Double Acting Pneumatic Cylinder Valve Oil Automatic Emergency Stop Work Lock

Parameters:

Cylinder types

 10A-5, 10A-5R 10A-5V, 10A-5K
Bore Diameter(mm) 32 40-80 100-320 32 40-80 100-320
Max Stroke (mm) 500 800 1500 500 800 1500
Working pressure (mpa) 0.15--0.90
Pressure resistance (mpa) 1.0
Speed range (mm/sec) 50--700 50--500
Temperature range (℃) -10---60
Working medium air, dry air
Oil no need
Cushion two side adjustable
Cushion stroke 20 25 20
Min Stroke Instal Limited 10A-5R 10A-5V 10A-5K
Min Stroke TC 125 75 125
Min Stroke Instal 120 165 165
Min Stroke Other 30 50 50
Min Stroke Instal 110 165 165

Internal Structure

Double Acting Pneumatic Cylinder Valve Oil Automatic Emergency Stop Work Lock

No. Part Name Material No. Part Name Material
1 Nut Carbon steel 11 Wear ring
2 Piston rod S45C Chrom plated 12 Magnet
3 Fron o-ring NBR 13 O-ring NBR
4 Bush 14 Piston o-ring NBR
5 Head cover Aluminum 15 Seat Aluminum
6 Cushion o-ring NBR 16 Lock assembly
7 O-ring NBR 17 Rear cover Aluminum
8 Body Aluminum 18 Bolt Carbon steel
9 O-ring NBR 19 Nut Carbon steel
10 Seat Aluminum

More photos of cylinder production:

Double Acting Pneumatic Cylinder Valve Oil Automatic Emergency Stop Work Lock

Packaging:

Double Acting Pneumatic Cylinder Valve Oil Automatic Emergency Stop Work Lock

Welcome your any question, we will response at once!
