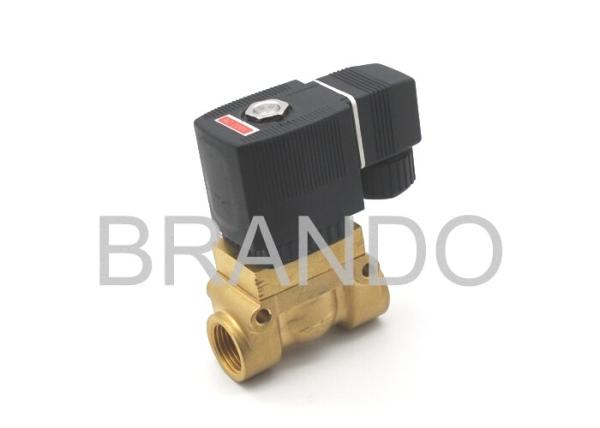

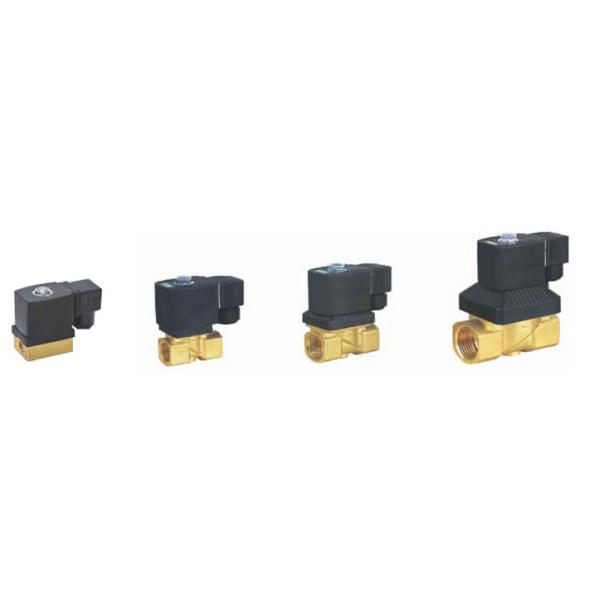

Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material
Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material
Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material
Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material
Specifications
Brand Name :
BRANDO or OEM
Model Number :
6213
Certification :
CE ISO
Place of Origin :
Ningbo, China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
3 working days after receive payment
Packaging Details :
Inner box, carton, pallet
Part name :
Burket type 6213 series solenoid valve
Type :
2 Way 2 Position
Port size :
G1/4", G3/8", G1/2", G3/4", G1"
Body material :
Brass
Voltage :
12v DC, 24v DC, 110v AC, 220v AC
Description

Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material

Specification:
1, Port size: 1/4 " ~2 "
2, Working Medium: gas, water, oil, weak acid & alkali
3, Valve Body: Brass
4, Valve Control Style: NC (normal close) or NO(normal open)
5, Orifice Size: 10,13,20,25,40,50mm
6, Working Pressure: 0.03~1.0MPa / 0.07~1.6MPa
7, Seal Material: NBR,EPDM,VITION
8, Ambient Temperature: -10~55°C
9, Medium Temperature: -10~90°C
10, Voltage: DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, 50/60HZ

Parameter:

Part No. 6213-02 6213-03 6213-04 6213-04 6213-06 6213-06 6213-08
DN 10 14 25
Port Thread G1/4" G3/8" G1/2" G1/2" G3/4" G3/4" G1"
Working pressure 0.03--0.1 MPa
Ambient temperature ℃ -10~55°C
Medium temperature ℃ -10~90°C
KV value m³/h 2 3.6 8.3 8.3 11 11
Power AC (VA) 14
Power DC (W) 8
Frequancy ≥1 ≥0.5
Voltage AC:50HZ 24V 36V 110V 220V DC:24V 12V

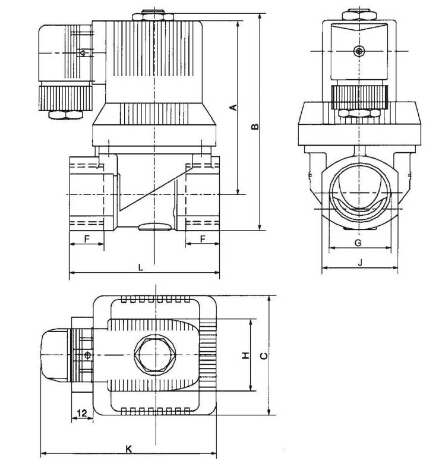

Overall Dimensions:

Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material

Part Number G C F L J A B H K
6213-02 G1/4" 38 14 50 26 71 85 35 71
6213-03 G3/8" 38 14 50 26 71 85 35 71
6213-04 G1/2" 38 14 50 26 71 85 35 71
6213-04 G1/2" 45 16 58 31 82 96 35 80
6213-06 G3/4" 45 16 58 31 82 96 35 80
6213-06 G3/4" 65 18 82 41 96 117 35 90
6213-08 G1" 65 18 82 41 96 117 35 90

Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material

Welcome your any question, we will response at once.

We also have many types solenoid valve, welcome your ask!

Electric Water Diverter Pneumatic Cylinder Valve 6213-06 Burket Type Brass Body Material
