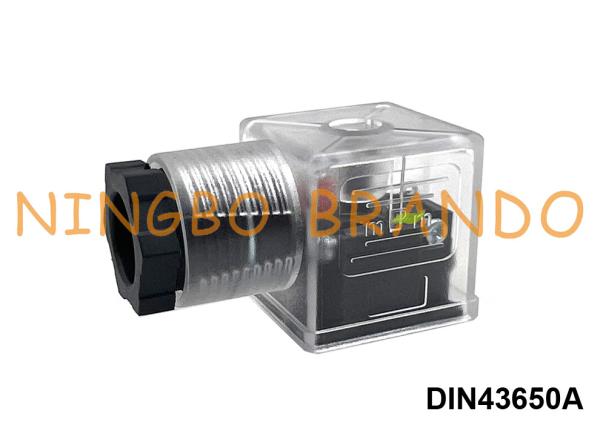

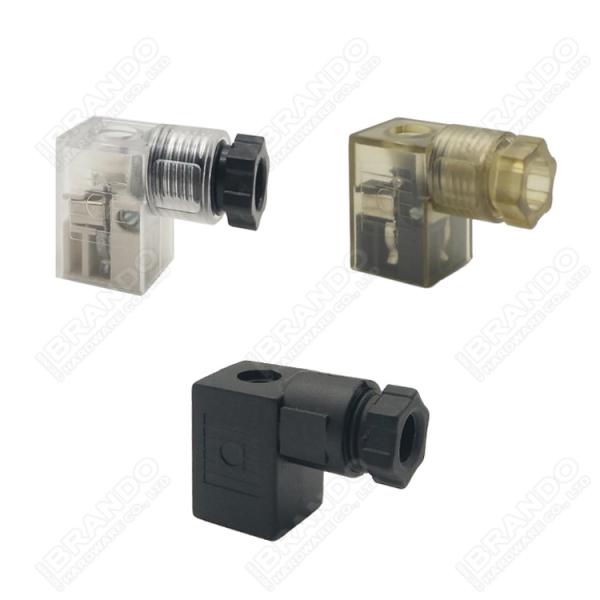

DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A
DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A
Specifications
Brand Name :
BRANDO
Model Number :
DIN43650A
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
1000000 pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
DIN 43650 Connector
DIN 43650 Type :
DIN 43650 Form A
Protection Class :
IP65
Pole Format :
2+1GND, 3+1GND
Current Rating :
10A
Contact Resistance :
≤5mΩ
Distance :
18mm
Fixing Screw :
M3x28
Max Conductor Section :
3x1.5mm²
Working Voltage :
AC380V, DC300V
Description

DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A

DIN 43650 solenoid connectors are durable valve connectors used across a wide range of industrial applications. They're not affected by voltage surges or electro-magnetic interference.

DIN 43650 solenoid connectors are available in three formats: Form A, Form B or Form C. They're made to function within certain voltage limits. There are also three gasket options available for DIN connectors: NBR Profile, NBR Flat or EPDM Flat, each with different characteristics. While NBR rubber is an oil-resistant material, EPDM rubber isn't as resilient against oils but can cope better with ozone, heat and adverse weather conditions. Male and female solenoid connectors are available and they're designed with different enclosure locks to choose from.

Technical Data of DIN43650A Solenoid Valve Connector:

DIN 43650 Type
DIN 43650 Form A
Termination Method
Screw
Contact Spacing
18mm
Number of Poles
2 Poles + Ground, 3 Poles + Ground
Current Rating
10A
Contact Resistance
≤5mΩ
Fixing Screw
M3x28mm
Max Conductor Size
3x1.5mm²
Gasket
NBR
Protection Class
IP65
Working Voltage
AC380V, AC220V, AC110V, AC24V, DC24V, DC12V

Dimension of DIN43650A Solenoid Coil Connector:
DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A

Product Video of DIN43650A Solenoid Valve Connetor:

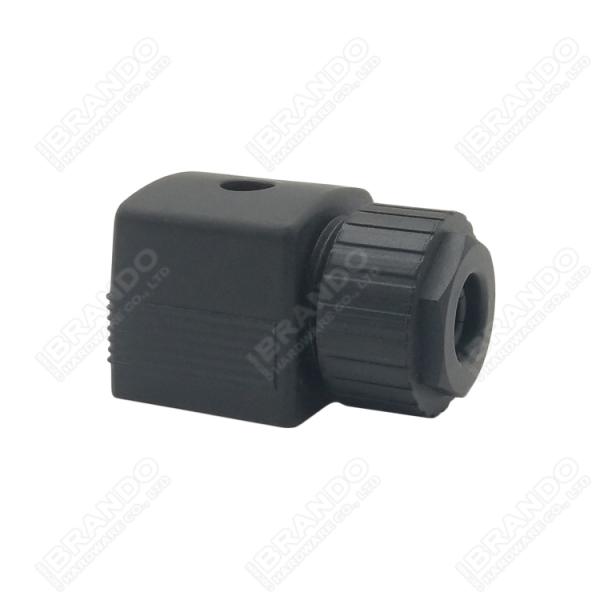

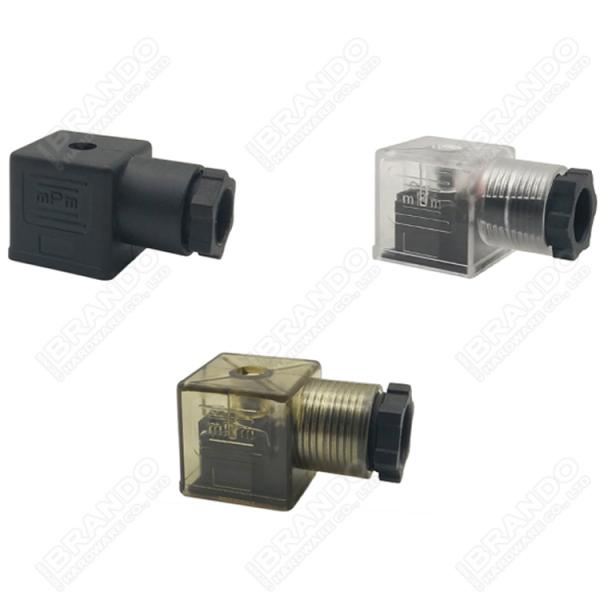

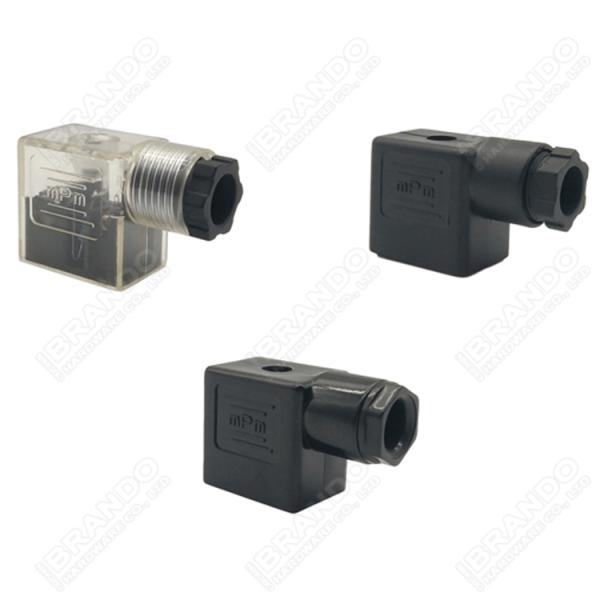

More Solenoid Valve Coil Connectors for you to choose:

DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A
DIN43650A DIN43650B DIN43650C
DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A

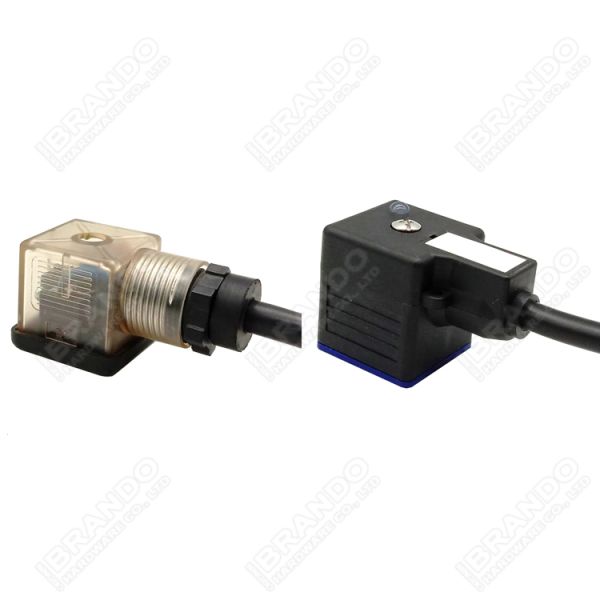

Waterproof With Cable Other

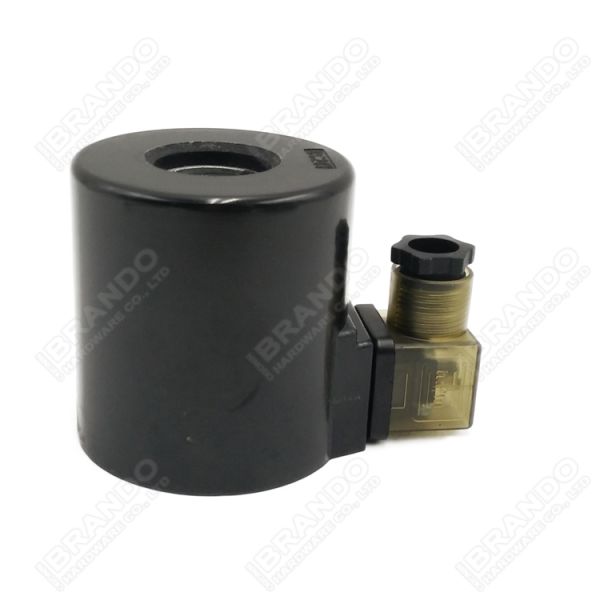

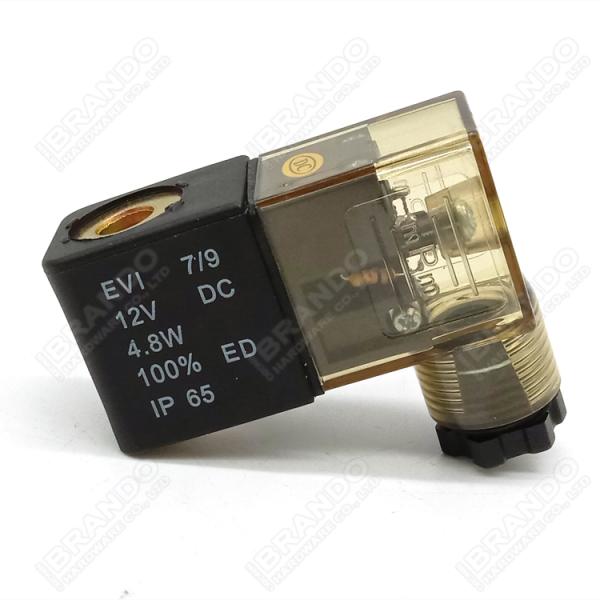

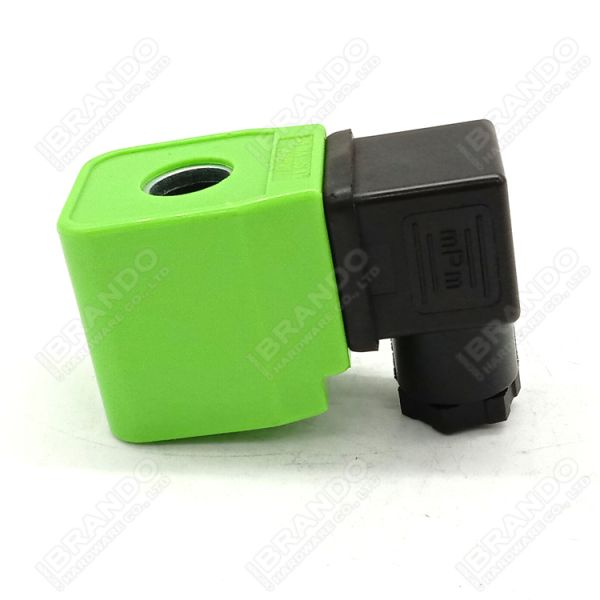

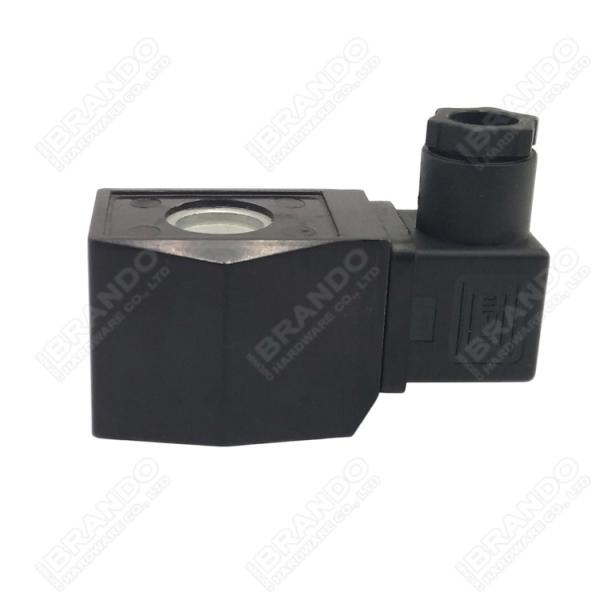

More Solenoid Valve Coils for you to choose:

DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A DIN43650A Solenoid Valve Coil Connector Transparent DIN 43650 Form A
Pneumatic Solenoid Valve Coil Pulse Valve Solenoid Coil Water Solenoid Valve Coil Hydraulic Solenoid Valve Coil

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
