CU Series Pneumatic Air Cylinders Free Mounting Bore Diameter 6mm 10mm 16mm
CU Series Pneumatic Air Cylinders Free Mounting Bore Diameter 6mm 10mm 16mm
Specifications
Brand Name :
BRANDO or OEM
Model Number :
CU
Certification :
CE ISO
Place of Origin :
NINGBO, CHINA
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000PCS PER MONTH
Delivery Time :
7 working days after payment
Packaging Details :
Bubble bag, wooden carton, pallet
Part Name :
CU series pneumatic cylinder
Material :
SS304, Aluminum
Standard or Non-standard :
Standard
Structure :
Plunger Cylinder
Power :
Pneumatic
Acting type :
Double acting
Description

CU Series Pneumatic Air Cylinders Free Mounting Bore Diameter 6mm 10mm 16mm

Product features:

1. Mounting dimensions comply with ISO(International standard),Non-lubricated(avoiding oil-

fog pollutioin);
2. Mainly made in aluminum alloy,light weight,small size
3. Cylinder tube and front and back cover are connected by male and female threads,can

dismouting and repaired;
4. The seal material with high temperature resistance is adopted to guarantee the normal

operation of cylinder are 150°C;
5. We offer the free samples for the buyer .

Parameters:

Bore Diameter 6 10 16 20 25 32
Acting Type Double acting/ Single acting spring return/ Single acting spring extend
Wroking Medium Clean air
Working pressure 1--7 bar
Guaranteed pressure 10 bar
Working temperature 5--60℃
Cushion type rubber cushion
Port Size M5x0.8 G 1/8

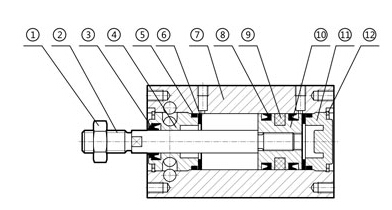

Internal Structure

CU Series Pneumatic Air Cylinders Free Mounting Bore Diameter 6mm 10mm 16mm

No. Part Name Material
1 Nut Carbon steel
2 Piston rod Stainless steel
3 Piston rod seal NBR
4 Head cover Aluminum
5 Seal NBR
6 Piston seal TPU
7 Body Aluminum
8 Y shape seal NBR
9 Magnet
10 Piston Aluminum
11 Rear cover Aluminum
12 Clip Stainless Steel

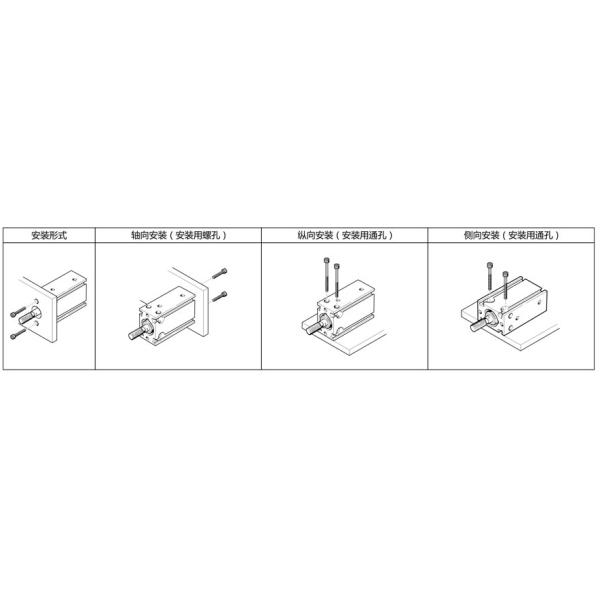

Installation:

CU Series Pneumatic Air Cylinders Free Mounting Bore Diameter 6mm 10mm 16mm
