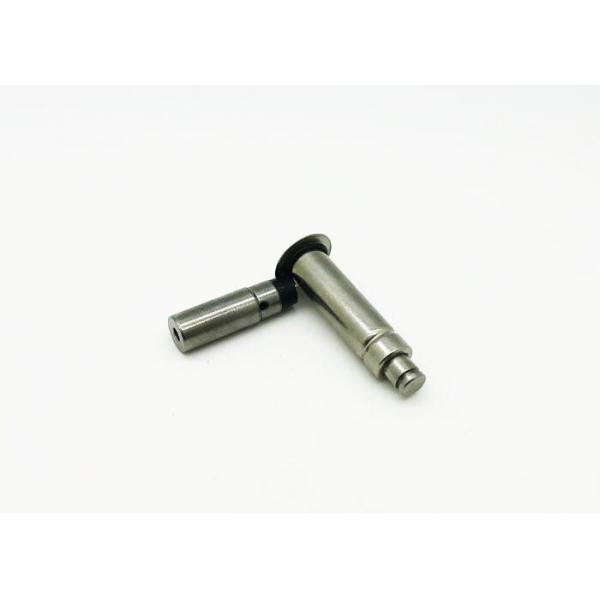

O-Ring Circular Seat Solenoid Stem With No Thread /Cylindrical Movable Core with Rubber Band

Application of BAPC212050501

1.Used for Assembling with solenoid coil and other kits

2.After assembling,this type solenoid valve can be used for dust collector device

The dust collector solenoid valve is a compressed air switch for the dust removal system of the pulse bag filter. Controlled by the output signal of the pulse injection controller, the filter bag is injected one by one and the resistance of the dust collector is kept within a set range

to clean the dust to ensure the processing capacity and efficiency of the dust collector

Other types of solenoid valve

Know more specification of BAPC212050501

1.Brand:BRANDO

2.NO,:BAPC212050501

3.Tube out diameter:12.0mm

4.Tube height:50.5mm

5.Item weight:37g

6.Standard or no:Standard

7.Voltage:Both AC/DC

8.Movable core height:36.2mm

9.Solenoid armature height:52.3mm

10.Depth:32.4mm

11.Material:stainless steel SS304 and NBR/viton

Viton:Fluorine-containing rubber has various types according to fluorine content, i.e. monomer structure; hexafluoride fluorine rubber is superior to silicone rubber in high temperature resistance, chemical resistance, resistance to most oils and solvents (except ketones and esters), weather resistance and ozone resistance, but with terrible performance in cold condition; generally used for locomotives and other products. Seals used in chemical plants have a temperature range of - 20 ~260 C. Low temperature resistant seals are available for use at - 40 C, but the price is high.

How to choose the correct solenoid stem for solenoid valve you need

1.The selection of solenoid valves should first follow the four principles of safety, reliability, applicability and economy in turn, followed by the selection according to six aspects of field working conditions (pipe parameters, fluid parameters, pressure parameters, electrical parameters, action mode, special requirements).

Solenoid valve work Advantage

Solenoid valves are the most frequently used control elements in fluidics. Their tasks are to shut off, release, dose, distribute or mix fluids. They are found in many application areas. Solenoids offer fast and safe switching, high reliability, long service life, good medium compatibility of the materials used, low control power and compact design.
