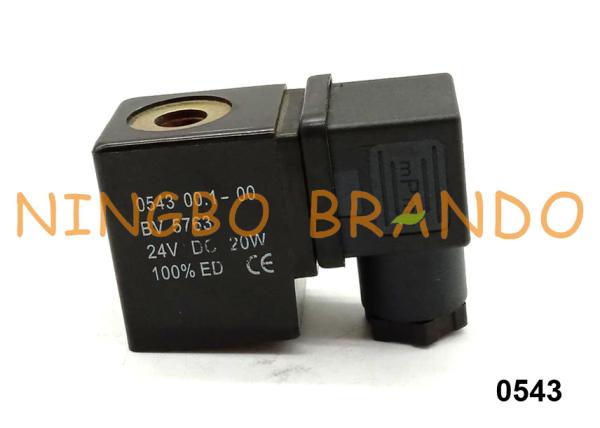

Nass Magnet Type Solenoid Coil 0543 12VDC 24VDC 24VAC 110VAC 220VAC
Nass Magnet Type Solenoid Coil 0543 12VDC 24VDC 24VAC 110VAC 220VAC
Specifications
Brand Name :
BRANDO
Model Number :
BB14542004
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
1000
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve Coil
Connector :
DIN43650A
Protection Class :
IP65
Insulation Class :
F, H
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power :
20W, 12W, 13W, 22VA, 15VA
Description

Nass Magnet Type Solenoid Coil 0543 12VDC 24VDC 24VAC 110VAC 220VAC

This solenoid coil is same with Nass Magnet solenoid coil 0543, which is popularly used in Shako solenoid valves, like PU220A, PU225A, SPU225A, PU225S series. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Coil Power: 20W, 12W, 13W, 22VA, 15VA. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve.

Dimension & Data of 0543 Solenoid Coil, Armature:

Nass Magnet Type Solenoid Coil 0543 12VDC 24VDC 24VAC 110VAC 220VAC

BRANDO Model
BB14542004
Ordering Code
0543
Voltage
220VAC, 110VAC,
24VDC, 12VDC
Power
20W, 12W, 13W, 22VA, 15VA
Other voltage and power can be customized
Connector
DIN43650A


Nass Magnet Type Solenoid Coil 0543 12VDC 24VDC 24VAC 110VAC 220VAC

BRANDO Model
BAPC214548001
Function
2 Way Normally Closed
Tube Material
Stainless Steel
Seal Material
NBR, EPDM, FKM

Ordering Code of 0543 Solenoid Coil:

Code No Voltage

Frequency

(Hz)
Power
W/VA
113-030-0042 24VDC 2,0
113-030-0045 48VDC 2,1
113-030-0032 48VDC 1,6
113-030-0032 220VAC 50 6,4
113-030-0032 230VAC 50 6,6
113-030-0032 240VAC 50 5,7
113-030-0278 12VDC 6,0
113-030-0026 24VDC 6,1
113-030-0029 24VAC 50 10,8
113-030-0029 24VAC 60 9,6
113-030-0036 110VAC 50 11,1
113-030-0036 120VAC 60 11,7
113-030-0033 220VAC 50 10,8
113-030-0044 12VAC 50 19,3
113-030-0044 12VAC 50 17,1
113-030-0027 24VDC 11,0
113-030-0039 24VAC 50 17,9
113-030-0039 24VAC 60 15,6
113-030-0037 110VAC 50 17,6
113-030-0037 120VAC 50 18,3
113-030-0034 220VAC 50 18,1
113-030-0034 240VAC 60 18,9
113-030-0033 240VAC 50 11,4
113-030-0047 12VDC 15,0
113-030-0028 24VDC 15,0
113-030-0040 24VAC 50 21,8,
113-030-0040 24VAC 50 19.4
113-030-0043 48VAC 50 26,2
113-030-0043 48VAC 50 23,2
113-030-0052 48VAC 50 19,0
113-030-0052 48VAC 50 16,6
113-030-0038 110VAC 50 24,8
113-030-0049 110VAC 50 21,7
113-030-0049 110VAC 50 19,2
113-030-0038 120VAC 50 26,1
113-030-0041 195VDC 16,6
113-030-0035 220VAC 50 22,0
113-030-0050 230vAC 50 21,4
113-030-0050 230VAC 50 19,0
113-030-0031 240VAC 50 17,9
113-030-0035 240VAC 50 23,2

Video of 0543 Solenoid Coil:

BRANDO Solenoid Valve Coils Production Video:
