Specifications
Brand Name :
BRANDO
Model Number :
BAPC211037301
Certification :
CE
Place of Origin :
Ningbo CHINA
MOQ :
200
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
4000 pcs per day
Delivery Time :
Negotiation
Packaging Details :
Decades a box,then put into carton
Standard or no :
Standard
Color :
silvery
Seat type :
pentagon
Type :
3/2 way NC
Seal :
NBR
Connection :
Thread
Description

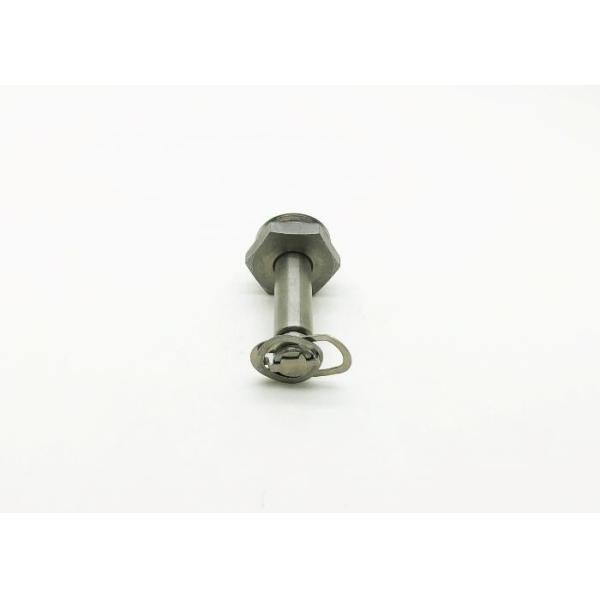

Stainless Steel,Pentagon Seat With Thread Connection Solenoid Stem With Interior Spring

Component

1.Two clips fixs with upper screw

2.Armature plunger tube

3.Movable core includes internal spring and NBR

Solenoid stem shape feauture

1.With two clips fix with upper screw,more delicate than other solenoid stems

2.Plane Groove design of armature

3.Stainless steel,so this item has comparable conductivity

4.Large pentagon silvery thread seat as a connection

5.Cylindrical movable core with embed NBR and internal Spring.And with no vertical grooves

This item's application

Mainly used for dust-removing equipment solenoid valve

The dust collector solenoid valve is a compressed air switch for the dust removal system of the pulse bag filter. Controlled by the output signal of the pulse injection controller, the filter bag is injected one by one and the resistance of the dust collector is kept within a set range

to clean the dust to ensure the processing capacity and efficiency of the dust collector
Work principle of dust collector valve:

The diaphragm divides the pulse solenoid valve into two chambers. When the compressed air is switched on, the compressed air enters the back chamber through the throttle hole. At this time, the pressure of the back chamber will press the diaphragm to close the output port of the valve, and the pulse solenoid valve is in a "closed" state. The electric signal of the pulse injection controller makes the armature of the pulse solenoid valve move, the vent of the back chamber of the valve opens,then the back chamber loses pressure rapidly and the diaphragm moves backward, the compressed air is injected through the outlet of the valve, and the pulse solenoid valve is in the "open" state. The electric signal of pulse jet control device vanishes and the armature of pulse solenoid valve is reset. The outlet of the back chamber is closed, and the pressure of the back chamber rises to make the diaphragm close to the valve outlet, and the pulse solenoid valve is in the "closed" state.

Detail instruction

Brand BRANDO NO. BAPC211037301
Voltage AC/DC Tube out diameter 11.0mm
Tube height 37.3mm Item weight 62g
Depth 33.6mm Movable core height 37.1mm
Color Silvery white Type 2/2 normally closed
Connection Thread and groove Pressure Normal
Standard or no Standard Temperture Normal

Material and specification could be customized if you have speical requirements

Detail item show

Thread Connection Solenoid Stem Stainless Steel Pentagon Seat With Interior Spring

We are professional plunger tube manufacturer,guarantee product quality 100%.With Problems and challenges,can inqury us and give your best solution
