Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35
Specifications
Brand Name :
BRANDO
Model Number :
2W350-35
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
30000pcs per month
Delivery Time :
2 days
Packaging Details :
Pvc bag, box, carton
Code :
2W350-35
Body :
Brass
Pipe Size :
1 1/4"
Voltage :
AC220V, AC110V, DC24V, DC12V
Seal :
NBR
Diaphragm :
NBR
Description

Direct Acting Low Power Consumption 1 1/4 Inch Port Size Nominal Diameter DN35 Orifice 35mm Steam Solenoid Valve 2W35-35

low price 220V 2W series electric solenoid water valve 2W350-35

Feature of electric solenoid water valve

1. Direct Acting

2. Have both Normally cosed and open

3. Fit for Air, water.

4. Port size: BSPT 1-1/4"

5. Voltages: DC12V, 24V, AC110v, 220V, 380V

6. Thread connection: BSPT, BSPP or NPT.

7. Large flow.

Electric solenoid water valve 2W350-35 Characteriscs

1. Valve body material: brass

2. Port size: 1-1/4"

3. MOQ=1

4. The direct-acting type diaphragm structure without pressure to open to extend the using field.

5. Have DIN43650A, water proof, explosion proof solenoid valves coils to meet the different working environment.

Specifications of Solenoid Valve 2W350-35:

Product Description
electric solenoid water valve
Fluid
air, water
Port size
1/8"~2"
Fluid pressure
0~10 bar
Diaphragm material
NBR, EPDM, Silicon or Viton
Power
DC 18W, AC18VA

Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35

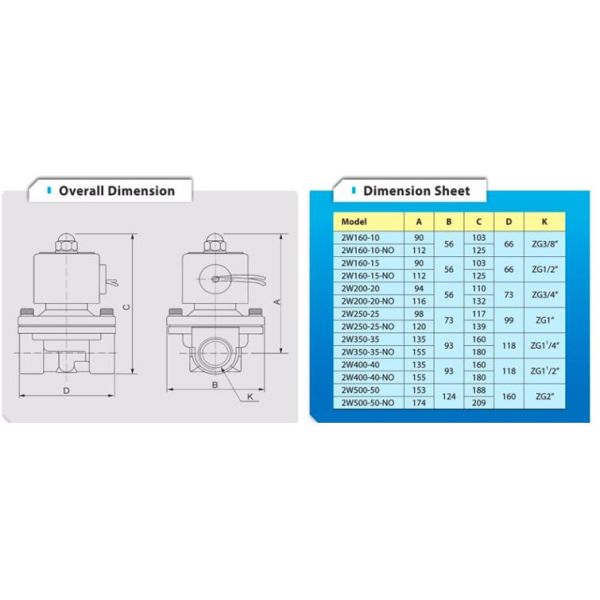

Overall Dimensions of Electromagnetic Valve 2W350-35:

Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35

Quality Principle:

1. We have the strict material purchasing management system to make sure all materials are good.

2. High quality and advanced machines to make sure all the dimensions are accurate.

3. 100% quality test to make sure every product in good performance.

4. Standard export packing to protect the goods in shipment.

5. Fast response to your inquiry.

Packaging:

Direct Acting 2 Way 2 Position Solenoid Valve / Steam Solenoid Valve 2W35-35

Pls contact us if you have any requirement.
