Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body
Specifications
Brand Name :
BRANDO
Model Number :
2W200-20
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs per week
Delivery Time :
2 days
Packaging Details :
PVC bag, box, carton, pallet
Code :
2W200-20
Orifice :
20mm
Pipe :
3/4"
Body :
Brass
Voltage :
220 VAC, 100 VAC, 24 VAC, 24 VDC, 12 VDC
Solenoid :
Copper
Description

2W200-20 3/4 Inch Pipe Size Brass Body 2-Position 2-Way Normally Closed Flying Leads Solenoid Fluid Control Valve

Description of Solenoid Valve 2W200-20

Product Features:

1.Indirect acting (internal pilot) and normally closed type 2/2 way solenoid valve. It can change direction quickly and has large flow.
2.It is compact, small and lightweight. It is easy to install and dismantle;
3.The valve body is made of brass. Its coil has a heat resistance classification of Class B. The standard seal material is FPM-F. Please contact us if other material is required.
4.The protection class of the is IP65 and there is a choice for grommet or terminal electrical entry.

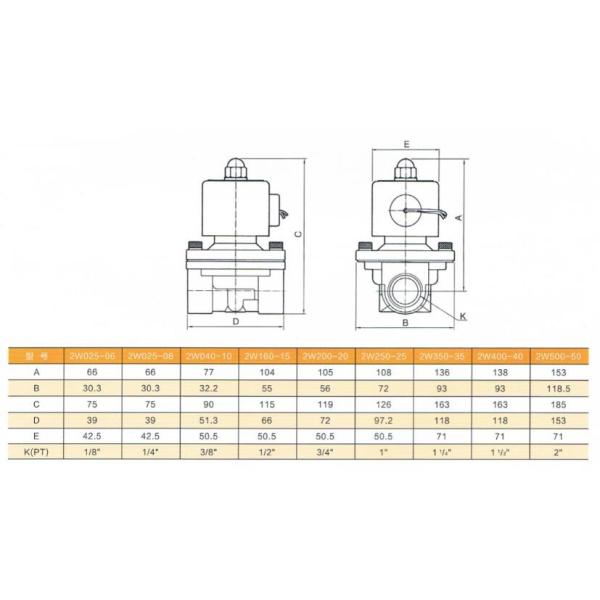

Dimensions of Solenoid Valve 2W200-20:

Flying Leads Solenoid Fluid Control Valve 2 Position 3/4 Inch Pipe Size Brass Body

Additional Informations of Brass Water Solenoid Valve 2W200-20:

Acting Type Piloted, Normally Closed
Actuator Size
Product Series 2W: brass fluid control valve
Brand BRANDO
Body Material Brass
Orifice Size 20mm
Port Size 3/4"
Thread Type G
Valve Type Single Solenoid, 2 Port (2 Way), 2 Position
Voltage AC 220V
Electrical Entry Terminal
Pilot Type Internal

Technical Parameters of Brass Fluid Control Valve 2W200-20:

Model: 2W200-20

Working Medium: Air,Water,Oil,gas

Operation: Direct Acting

Acting Type: Normally Closed

Orifice Size(mm): 20

CV Value: 4.8

Port Size: 3/4″

Operation Fluid Viscosity: 20 CST Below

Operating Pressure: Air:0~1.0Mpa, Water:0~0.7Mpa, Oil:0.9Mpa

Max. Pressure Resistance: 1.0Mpa

Operating Temperature: NBR for -5 ~80℃ and VITON for -5~150℃

Voltage Range: ±10%

Material of Body: Brass

Material of Oil Seal: NBR or VITON
