Specifications
Brand Name :
BRANDON
Model Number :
CA45DD
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
800 pcs per day
Delivery Time :
Negotiation
Packaging Details :
PVC bag and box and carton
Body, Cover, Nut :
Alum Die Cast CA313
Seal Retainer :
M.S Galvabond
Seal :
Nitrile
Bleed Pin :
Turned Aluminium
Diaphragm Ass'y :
Buna N / Nitrile
Spring :
304 Stainless Steel
Description

Two Diaphragms 2/2 Way Normally Closed Dresser Nut Goyen Type Pneumatic Plulse Valve CA45DD 200/240 VAC

Pneumatic pulse jet valve CA45DD is a type of compression fitting body pulse valve, the connecting size from 3/4" to 1 1/2", mostly designed for dust baghouse cleaning system, with fast repsonse of opening and closing characteristic.

CA45DD Pulse jet valve is high performance diaphragm valve with dresser nut ports and availble with integral pilot or as remotely piloted valve, outlet at 90 degree to inlet.

Installation of Pneumatic Pulse Jet Valve CA45DD:

For your safety do not pressurise system until all valves and pipes are fully secured. Do not attempt to remove a fitted valve while dust collecting system is under pressure.

1, Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

2, Ensure tank and pipes are free from dirt, rust or other particular

3, Ensure supply air is clean and dry

4, Mount valve to inlet pipes and blowtube to valve, tighten dresser nuts.

5, Tanks and pipes must be independently supported from valve.

6, Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only)

7, Apply moderate pressure to system and check for installation leaks.

8, Fully pressurise system

9, Test fire and listen for proper actuation and crisp pulse noise

Goyen Type Pneumatic Pulse Jet Valve CA45DD Characteristics and Performance:

NOM.SIZE PORT SIZE NUMBER OF DIAPHRAGMS FLOW PRESSURE RANGE TEMPERATURE RANGE
MM IN KV CV kPa (psi) NITRILE SEALS VITON SEALS
45 40 1.5 2 44 51 30 (5) -860(125) -40(-40) TO 82 (179.6) -29(-20.2) TO 232(449.6)

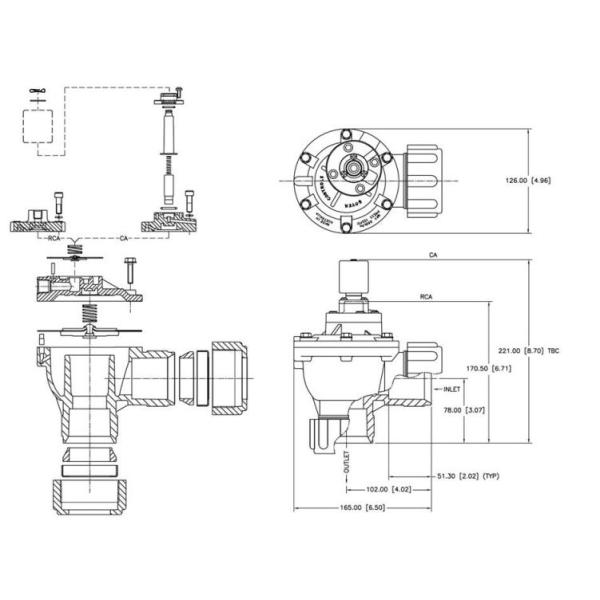

CA45DD Pnuematic Pulse Jet Valve Dimensions and Constructions:

Aluminium Die Casting Goyen Dust Collector Valves Dresser Nut Series CA45DD
