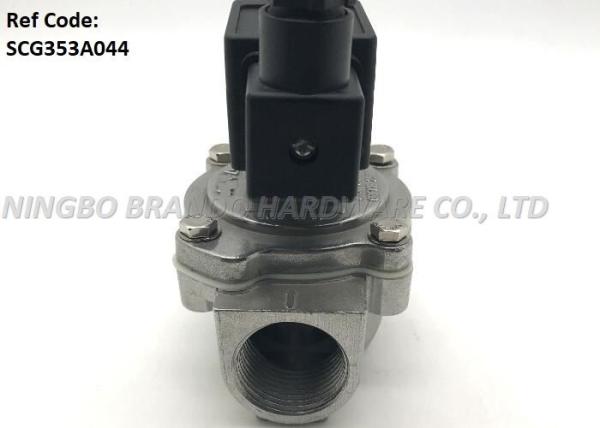

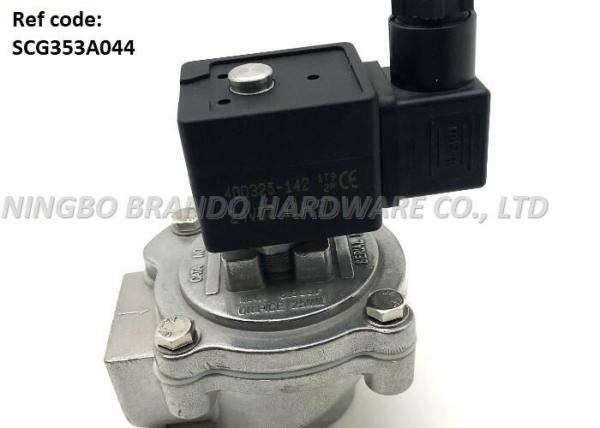

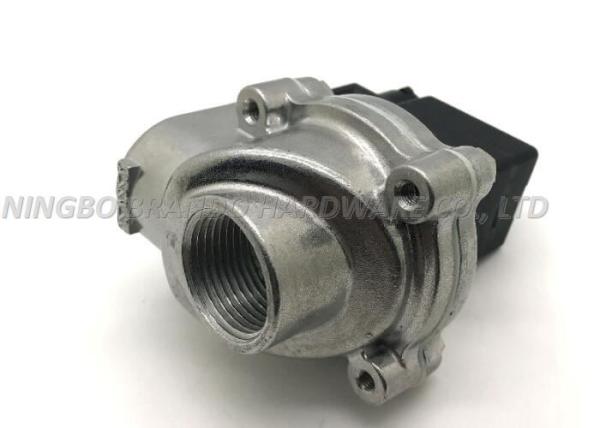

1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve
1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve
1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve
1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve
1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve
1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve
1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve
1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve
Specifications
Brand Name :
BRANDO
Model Number :
SCG353A044
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pcs per week
Delivery Time :
Negotiation
Packaging Details :
Brown box, carton, pallet
Port Size :
G1
Voltage :
220V AC, 110V AC, 24V DC
Orifice :
27mm
Diaphragm :
White TPE
Fluid :
Air
Application :
Dusto Collector System
Description

1 Inch Threaded Body Pneumatic Pulse Valve SCG353A044 With White TPE Diaphragm

Pulse Valve SCG353A044 Short Description:

Voltage: 24/DC, 115/50, 230/50, 24/50

Manufacturer: NINGBO BRANDO HARDWARE CO., LTD

Orifice Size (DN): 27mm

Body: Aluminium

Seal Material: NBR

Flow Coefficient KV (m3/h): 17

Flow Coefficient KV (l/min): 283

Operating Pressure Differential (BAR): 0.3-8.5

Media: Air

Pipe Size: G1

Weight (kg): 0.65

Pulse Valve SCG353A044 Features:

1, Two position, two way, normal close switch, magnetic solenoid water valve.
2, Dust Collector Pulse Solenoid Valves
3, Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
4, Used to control automatically the air in the pipeline.

Construction of Pulse Valve SCG353A044:

Diaphragm Pulse Valve SCG353A044 Body Aluminium
Diaphragm Pulse Valve SCG353A044 Core Tube SS304
Diaphragm Pulse Valve SCG353A044 Core and Plugnut 430FR
Diaphragm Pulse Valve SCG353A044 Core Spring SS304
Diaphragm Pulse Valve SCG353A044 Seal and Disc NBR nitrile
Diaphragm Pulse Valve SCG353A044 Diaphragm TPE, white
Diaphragm Pulse Valve SCG353A044 Shading Ring Copper
Diaphragm Pulse Valve SCG353A044 Coil Insulation Class F
Diaphragm Pulse Valve SCG353A044 Connector Spade plug (cable Ø 6 - 10 mm), ISO 4400
Diaphragm Pulse Valve SCG353A044 Electrical Safety IEC335

Dimensions of Pulse Valve SCG353A044:

1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve

A: 75mm

B: 45mm

C: 27mm

D: 51mm

E: 89mm

F: 75mm

G: 39mm

H: 92mm

J: 113mm

K: 130mm
