DIN43650C Overmolded Cable Solenoid Valve Connector With LED
DIN43650C Overmolded Cable Solenoid Valve Connector With LED
Specifications
Brand Name :
BRANDO
Model Number :
DIN43650C-CB
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Plastic Bag, Box, Carton, Pallet
Product Name :
Connector
Type :
DIN43650C
Contact Distance :
9.4mm
Pole Number :
2P+E, 3P+E
Protection Class :
IP67
Working Voltage :
AC, DC
Cable Length :
1 meter (can be customized)
Led Indicator :
With
Description

DIN43650C Overmolded Cable Solenoid Valve Connector With LED

BRANDO produces DIN 43650 connectors and other special style connectors. DIN 43650 connectors are commonly used to supply power to solenoid valves, which widely used in Hydraulic, Pneumatic, Electrical Appliance industry, etc.

Features:

1. Wide range of DIN43650 industry standard form A, B, C types, special on request
2. Protection class: IP65, IP67
3. Multiple connector circuits specifications for optional, LED; LED/VDR; Rectifier
4. A variety shell color: black, brown and transparent

Technical Data:

DIN Type DIN43650C
Contact Distance 9.4mm
Number of Poles 2 Poles + Ground, 3 Poles + Ground
Nomical Current 10A
Contact Resistance ≤5mΩ
Fixing Screw M3x28mm
Max Conductor Size 3x0.75mm²
Protection Class IP67
Working Voltage

AC, DC
Cable Length 1 meter (can be customized)

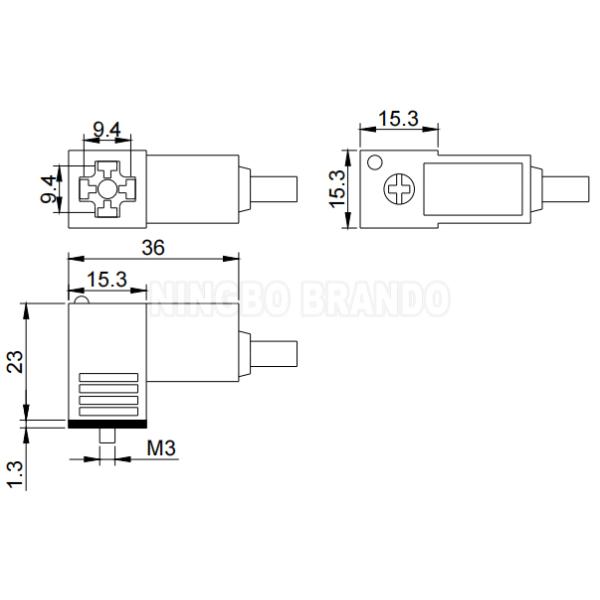

Main Dimension:

DIN43650C Overmolded Cable Solenoid Valve Connector With LED

More DIN 43650 Connectors:

DIN43650C Overmolded Cable Solenoid Valve Connector With LED DIN43650C Overmolded Cable Solenoid Valve Connector With LED DIN43650C Overmolded Cable Solenoid Valve Connector With LED
DIN43650A DIN43650B DIN43650C
DIN43650C Overmolded Cable Solenoid Valve Connector With LED DIN43650C Overmolded Cable Solenoid Valve Connector With LED DIN43650C Overmolded Cable Solenoid Valve Connector With LED
Waterproof With Cable Other
