5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
Specifications
Brand Name :
BRANDO
Model Number :
5404
Certification :
CE, ISO
Place of Origin :
China, Ningbo
MOQ :
5 pc
Price :
$27 to $ 40 per pc
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
50000 pcs per month
Delivery Time :
4 to 7 working days
Packaging Details :
Box, Carton, Pallet
Port Size :
1/4'', 3/8'', 1/2''
Orifice Size :
12mm
Function :
3 Way, Normally Opened
Operation :
Servo-Assisted Piston
Body Material :
Brass
Seal Material :
PTFE + FKM
Pressure Range :
1 to 50 Bar
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''

Technical Data of 5404 Solenoid Valve:​

5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''

Model No

Port Size

(inch)

Orifice Size

(mm)

Kv Value

(m³/h)

Pressure Range

(bar)

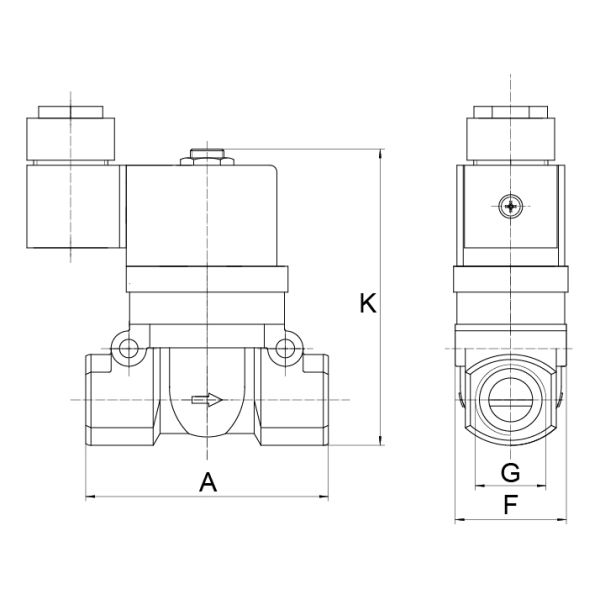

 Body Material Seal Material Coil Voltage Dimension
A F K
2 Way Normally Closed, Servo-Assisted Piston
5404 1/4'' 13 1.7 1 to 50 bar Brass PTFE+FKM

12VDC

24VDC

24VAC

110VAC

220VAC

 72 32 97/106
3/8'' 13 1.7 72 32 97/106
1/2'' 13 1.7 72 32 97/106
3/4'' 20 7 1 to 40 bar 92 60 128
3/4'' 25 11 92 60 128
1'' 25 11 92 60 128
2 Way Normally Open, Servo-Assisted Piston
5404-NO 1/4'' 13 1.7 1 to 40 bar Brass PTFE+FKM

12VDC

24VDC

24VAC

110VAC

220VAC

 72 32 103
3/8'' 13 1.7 72 32 103
1/2'' 13 1.7 72 32 103

BRANDO Solenoid Valve Production Video:

More High Pressure Solenoid Valves for you to choose:

Brass Solenoid Valves
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
MAX 50 bar MAX 50 bar MAX 50 bar MAX 50 bar
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
MAX 50 bar MAX 70 bar MAX 120 bar MAX 200 bar

Stainless Steel Solenoid Valves
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
MAX 50 bar MAX 50 bar MAX 50 bar MAX 100 bar
5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2'' 5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
MAX 120 bar MAX 160 bar MAX 200 bar MAX 300 bar
