018F6757 24V 018F6701 220V Refrigeration Solenoid Valve Coil
018F6757 24V 018F6701 220V Refrigeration Solenoid Valve Coil
Specifications
Brand Name :
BRANDO
Model Number :
BB15045010
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Refrigeration Solenoid Valve Coil
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power :
21VA, 10W, 18W
Connector :
Terminal box
Protection Class :
IP67
Insulation Class :
H
Coil Type :
BE024AS, BE048AS, BE115AS, BE230AS, BE240AS, BE380AS, BE024BS, BE115BS, BE220BS, BE110CS, BE230CS, BE012DS, BE024DS
Ordering Code :
018F6707, 018F6709, 018F6711, 018F6701, 018F6702, 018F6703, 018F6715, 018F6710, 018F6714, 018F6730, 018F6732, 018F6756, 018F6757
Description

018F6757 24V 018F6701 220V Refrigeration Solenoid Valve Coil

This solenoid is used for danfoss refrigeration solenoid valve. Ordering Code: 018F6707, 018F6709, 018F6711, 018F6701, 018F6702, 018F6703, 018F6715, 018F6710, 018F6714, 018F6730, 018F6732, 018F6756, 018F6757; Coil Type: BE024AS, BE048AS, BE115AS, BE230AS, BE240AS, BE380AS, BE024BS, BE115BS, BE220BS, BE110CS, BE230CS, BE012DS, BE024DS; Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC; Power: 21VA, 10W, 18W; Connector: Terminal Box; Protection Class: IP67; Insulation Class: H.

Ordering Code of Solenoid Coil:

Coil type
Supply voltage
Power

Frequency

(Hz)

Ambient

temperature
Ordering Code
BE-coils with terminal box
BF-coils with cable
BE024AS
24V AC
10W
21VA
50
80
018F6707
018F6257
BE048AS
48V AC
018F6709
018F6259
BE115AS
115V AC
018F6711
018F6261
BE230AS
220V-230V AC
018F6701
018F6261
BE240AS
240V AC
018F6702
018F6252
BE380AS
380V-400V AC
018F6703
018F6253
BE024BS
24V AC

60
018F6715
018F6265
BE115BS
115V AC
018F6710
018F6260
BE220BS
220V AC
018F6714
018F6264
BE110CS
110V AC
50/60
50
018F6730
018F6280
BE230CS
230V AC
018F6732
018F6282
BE012DS
12V DC
18W
DC
018F6756
BE024DS
24V DC
018F6757

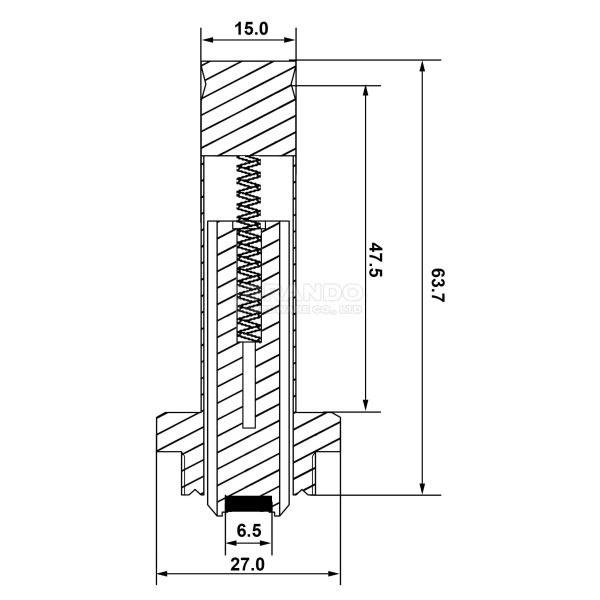

Dimension & Data of BE Coil & Armature:

018F6757 24V 018F6701 220V Refrigeration Solenoid Valve Coil

BRANDO Model
BB15045010
Coil Type
BE
Voltage
12VDC, 24VDC,
24VAC, 110VAC, 220VAC
(50/60Hz)
Power
21VA, 10W, 18W
Connector
Terminal Box
Protection Class
IP67
Insulation Class
Class H

018F6757 24V 018F6701 220V Refrigeration Solenoid Valve Coil

BRANDO Model
BAPC215047522
2 Way or 3 Way
2 Way
NC or NO
NC
Plunger Tube Material
Stainless Steel
Moving Core Material
430FR
Shading Ring Material
Copper
Seal Material
PTFE
Seat Type
Thread
