Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V
Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V
Specifications
Brand Name :
BRANDO
Model Number :
16.7CAB
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
5pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
7 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Solenoid Valve
Working Media :
Steam, Hot Water, Oil, etc
Port Size :
1/8'', 1/4'', 3/8''
Orifice Size :
1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
Body Material :
Brass
Seal Material :
PEEK
Media Temperature :
-60 to +300℃
Working Pressure :
0 to 40 bar
Operation :
Direct Acting
Function :
2 Way Normally Closed
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V


Product Features:

1. Working Media: Steam, Hot Water, Oil, etc
2. Working Pressure: 0 to 40 bar
3. Medium Temperature: -60 to +300ºC
4. Port Size: 1/8'', 1/4'', 3/8''
5. Orifice Size: 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
6. Body Material: Brass
7. Seal Material: PEEK
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:

Model No
Port Size
Orifice Size
Cv
Min Pressure
Max Pressure
Body
Seal
Voltage
16.7CAB010B01
1/8''
1.0mm
0.05
0 bar
40 bar
Brass
PEEK
12VDC
24VDC
24VAC
110VAC
220VAC
16.7CAB015B01
1/8''
1.5mm
0.08
30 bar
16.7CAB020B01
1/8''
2.0mm
0.14
20 bar
16.7CAB025B01
1/8''
2.5mm
0.23
17 bar
16.7CAB030B02
1/4''
3.0mm
0.3
13 bar
16.7CAB040B03
3/8''
4.0mm
0.6
7 bar
16.7CAB050B03
3/8''
5.0mm
0.65
5 bar
16.7CAB060B03
3/8''
6.0mm
0.8
4 bar

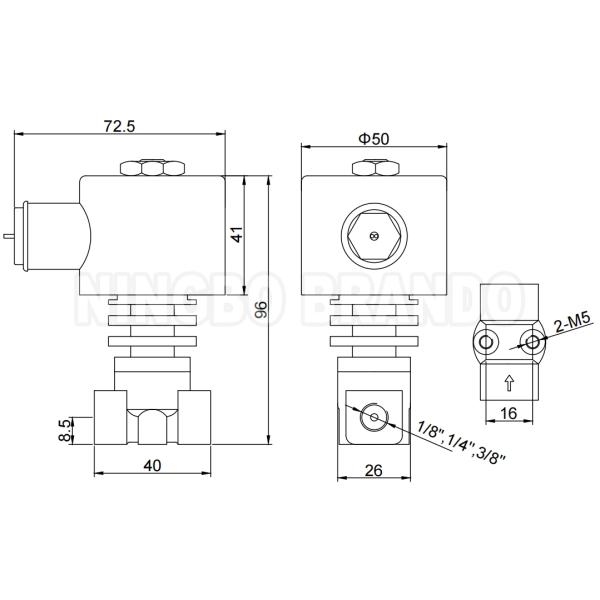

Main Dimension:

Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V

Our Production:

Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Similar Valves:

Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V Ultra High Temperature Steam Brass Solenoid Valve 1/8'' 1/4'' 3/8'' 24V 110V 220V
Max 185℃, 15 bar Max 300℃, 16 bar Max 225℃, 25 bar Max 300℃, 16 bar
