Specifications
Brand Name :
BRANDO
Model Number :
MVSC-220-4E1
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
20pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
Negotiation
Packaging Details :
Plastic bag, Box, Carton, Pallet
Product Name :
Pneumatic Solenoid Valve
Port Size :
In=Out=1/4'', Exhaust=1/8''
Thread Type :
G (Standard), NPT, RC (Optional)
Medium :
Air
Valve Type :
5 Way 2 Position
Operating Pressure :
0.15 to 0.8 MPa
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

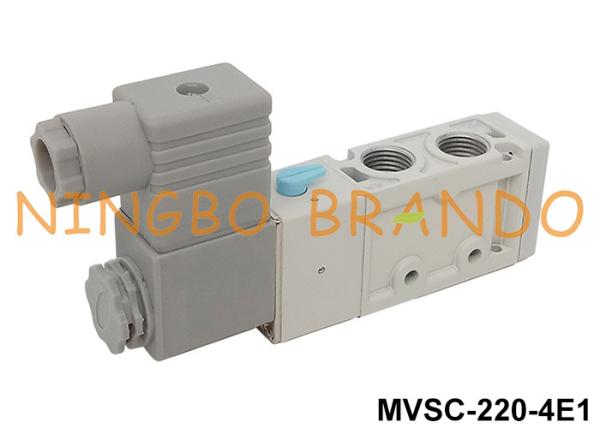

MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V

This pneumatic solenoid valve can replace MINDMAN MVSC-220-4E1, 5 way 2 position, 1/4'' inlet and outlet size, 1/8'' exhaust size, 0.15 to 0.8 MPa working pressure, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc, widely used in pneumatic systems.

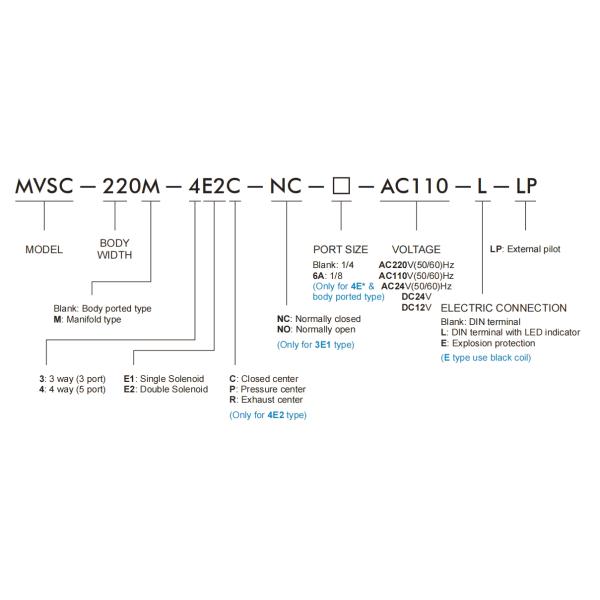

Order Code:

MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V

Technical Data:

Model No
MVSC-220-3E1
MVSC-220-3E2
MVSC-220-4E1
MVSC-220-4E2

MVSC-220-4E2

(C.P.R)
Port Size
In=Out=Exhaust=1/4''
In=Out=1/4'', Exhaust=1/8''
Valve Type
3/2 way
5/2 way
5/3 way
Effective
Orifice
18mm²
16mm²
Working
Pressure
0.15 to 0.8 MPa
Proof Pressure
1 MPa
Fluid
Air
Temperature
-5 to +50℃
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

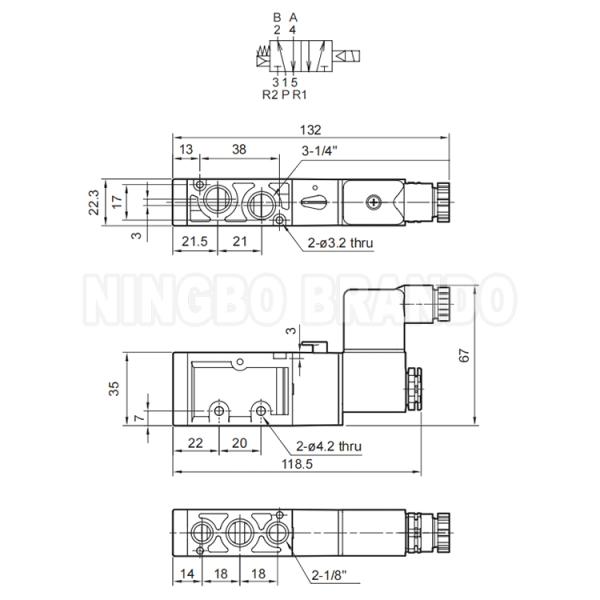

Main Dimension:

MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V

Our Production:

MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V

Related Products:

MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V MVSC-220-4E1 5/2 Way Pneumatic Solenoid Valve 12V 24V 110V 220V
Pneumatic Fitting Pneumatic Silencer Pneumatic FRL Unit Pneumatic Cylinder Pneumatic Tube

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
