C113827 SCG353A047 1-1/2'' Double Diaphragm Valve NBR/Buna Material Diaphragm Repair Kit

This white TPE diaphragm is used in 1 Inch ASCO type dust collector pulse jet valve (Also called diaphragm valve) SCG353A044. As a Replacement diaphragm repair kit, It has strong oil resistance, acid resistance, high temperature resistance and alkali resistance. It can easily ensure complete synchronization with other control components and control the injection of pulse compressed air.

The electromagnetic pulse valve (also known as the diaphragm valve) is the compressed air "switch" of the pulse bag type dust collector cleaning system. Controlled by the output signal of the pulse blowing controller, the filter bag is sprayed and cleaned row by row (room), so that the resistance of the dust collector is kept within the set range to ensure the processing capacity and dust collection efficiency of the dust collector.

Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.

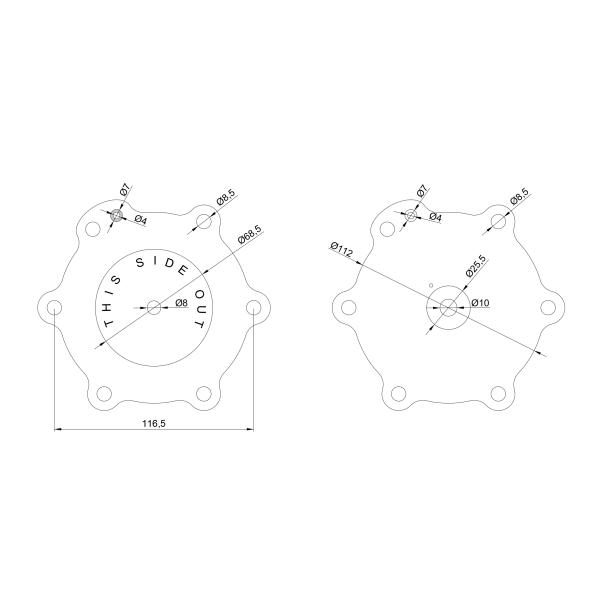

Dimension of C113827 ASCO Type Diaphragm:

Technical:

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
