Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550
Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550
Specifications
Brand Name :
BRANDO
Model Number :
BAPC309036053
Certification :
CE, ISO
Place of Origin :
China, Ningbo
MOQ :
1000
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Product Name :
Truck Solenoid Armature
Plunger Tube :
Brass
Seal Material :
NBR, FKM
Function :
3 Way Normally Closed
Connection Type :
Flange with o-ring groove
OEM Number :
4721950160, 4721950550, 4421977102, 4721950180, 4721950970, 4721950520, 4721951070, 4721950190
Description

Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550

This is solenoid armature plunger is used for Wabco ABS modulator solenoid valve, OEM number: 4721950160, 4721950550, 4421977102, 4721950180, 4721950970, 4721950520, 4721951070, 4721950190. The armature assembly is the very important component of solenoid valve. When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core. When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.

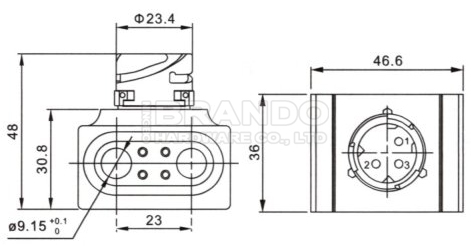

Dimension & Data of ABS Solenoid Valve Armature, Coil:

Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550

BRANDO Model
BAPC309036053
Function
3 Way Normally Closed
Plunger Tube
Brass
Seal Material
NBR, FKM
Connection Type
Flange with o-ring groove

Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550

BRANDO Model
BB09236003
Voltage
24VDC
Power
38W
Other voltage and power can be customized
Connector
3 Pins

Video of ABS Solenoid Valve Armature:

BRANDO Solenoid Valve Armature Production Video:

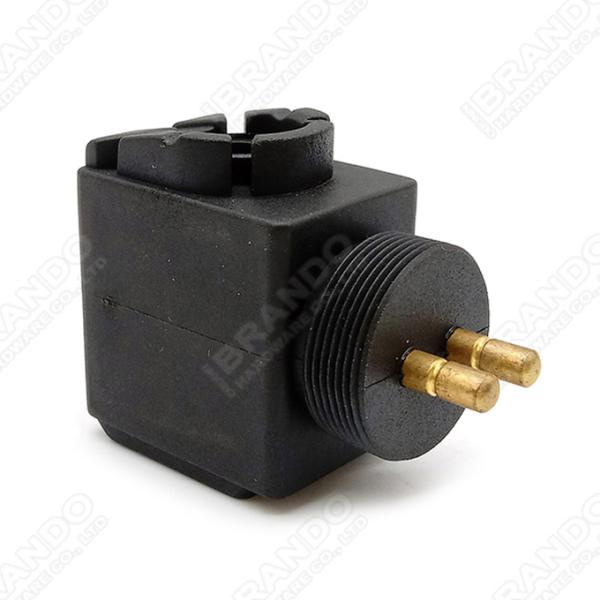

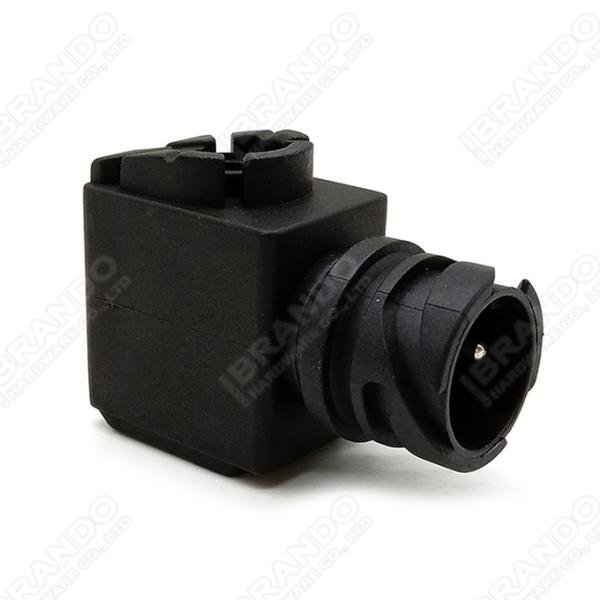

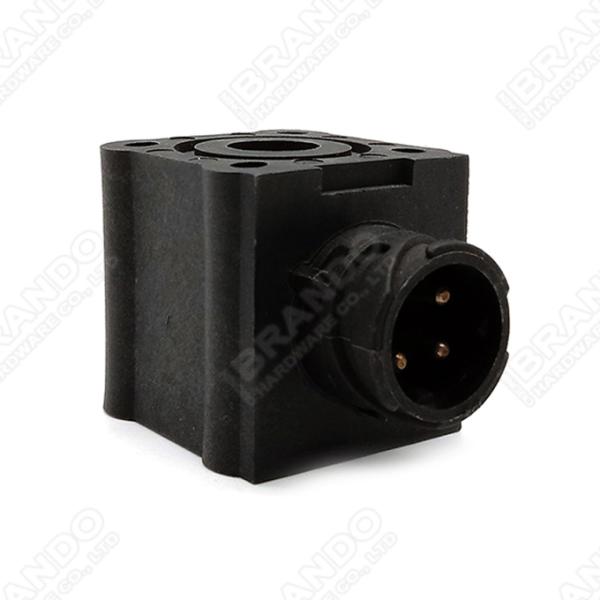

More Truck Solenoid Coils for you to choose:

Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550 Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550 Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550 Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550
Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550 Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550 Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550 Wabco Type Truck ABS Solenoid Valve Armature 4721950160 4721950550


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
