3/4 Inch Plastic Electric Solenoid Valve For Water Air Liquid 12VDC 24VDC 110VAC 220VAC
3/4 Inch Plastic Electric Solenoid Valve For Water Air Liquid 12VDC 24VDC 110VAC 220VAC
Specifications
Brand Name :
Brando
Model Number :
2W200-20
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-8 days
Packaging Details :
Inner boxes, Carton, Pallet
Product Name :
Plastic Electric Solenoid Valve
Operation Mode :
2 Way 2 Position, Normally Closed
Working Fluids :
Air, Liquids, Water, Gas
Port Size (inch) :
1/4'' to 2''
Orifice Size :
2.5mm to 25mm
Operation :
Direct Acting, Semi-Direct
Body Material :
Plastic
Seal Material :
Nitrile
Threaded Type :
G, NPT
Voltages :
12V DC, 24V DC, 24V AC, 110V AC, 220V AC (50/60Hz)
Description

3/4 Inch Plastic Electric Solenoid Valve For Water Air Liquid 12VDC 24VDC 110VAC 220VAC

Product Features:

• For simple applications: Air & water
• Normally closed
• The valves require no differential pressure
• Installation position: any, preferably with magnets upright
• Medium temperature: -5°C to +80°C
• With magnetic coil and device plug
• Protection type: IP65
• Duty cycle: 100% ED
• Quick-closing
• DN2.5-20 (1/4'' to 2'')
• Permissible pressure: 0 - 10 bar
• Seal: NBR
• Body: Plastic
• Media: Air, Water

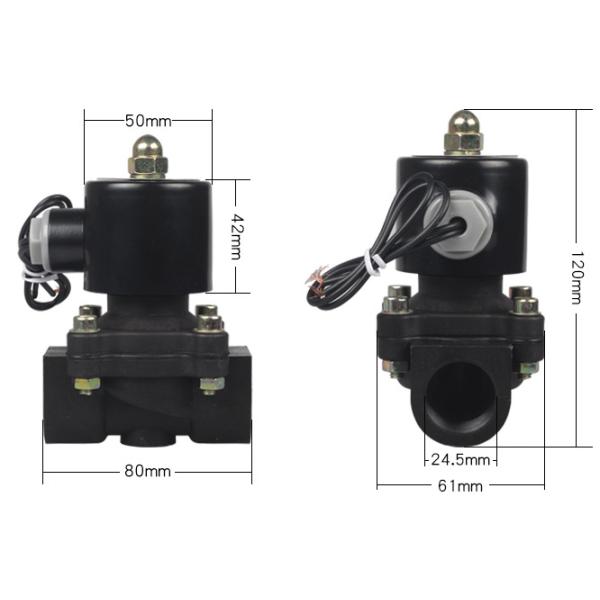

Main Dimension of 3/4 Inch Plastic Solenoid Valve:

3/4 Inch Plastic Electric Solenoid Valve For Water Air Liquid 12VDC 24VDC 110VAC 220VAC

2W Series
B (Width)
C (Length)
D (Height)
E
2W160-15
61
115
69
G1/2''
2W200-20
61
120
80
G3/4''
2W250-25
80
130
99
G1''
2W350-35
80
136
117
G1-1/4''
2W400-40
104
174
120
G1-1/2''
2W500-50
105
185
150
G2''

Technical Data of Plastic Solenoid Valve:

2W Series
2W025-08
2W040-10
2W160-15
2W200-20
2W250-25
2W350-35
2W400-40
2W500-50
Orifice Size
2.5
4
15
20
25
35
40
50
Port Size
1/4''
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Medium
Water, Air, Liquid, Gas
Action
Direct Acting
Semi-Direct
Function
2 Way, Normally Closed
Fluid Viscosity
20 CST below
Pressure
Range
0 to 1.0 Mpa
Temp. Range
-5 to +80℃

These plastic solenoid valves are an affortable but amazingly robust and dependable choice for a variety of water, air, and other general purpose liquid applications. Media being controlled must be compatible with ABS plastic, NBR rubber, and Stainless Steel. These plastic solenoid valves are semi-direct acting, making them suitable for many low differential pressure applications where traditional, pilot operated, solenoid valves may not perform reliably.
