M27 Thread Stainless Steel Plunger Tube Solenoid Valve Armature​

The armature assemblies are constructed of metallic components designed to provide protection against incompatibilities of various fluid medias. However it is necessary to use caution when specifying a solenoid valve for an unfamiliar fluid. Use caution when selecting a material suited specifically for the media.

The Armature Tube is the stainless steel or brass tubular element used as a guide for the movable core which is actuated by the magnetic force generated by the coil.

The Plunger of a solenoid is normally made from a ferrous compound. Ferrous or iron based materials have a natural magnetism as their molecules constantly try to align themselves with the earth's own magnetic fields which are generated from the earth's iron / ferrous core. This process results in a ferrous material having natural magnetic poles created by its own magnetic fields. It is important that the core of a solenoid has ferromagnetic properties as the poles created are a primary component of transforming the electrical energy into mechanical energy.

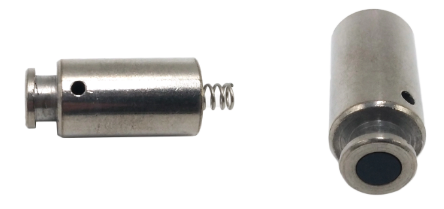

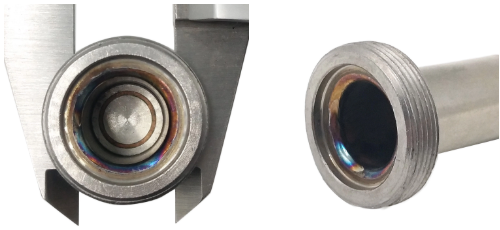

Detailed images of Solenoid Valve Armature Assembly:

Copper Shading Ring M27 Thead Seat

Magnetic Plunger NBR Seal

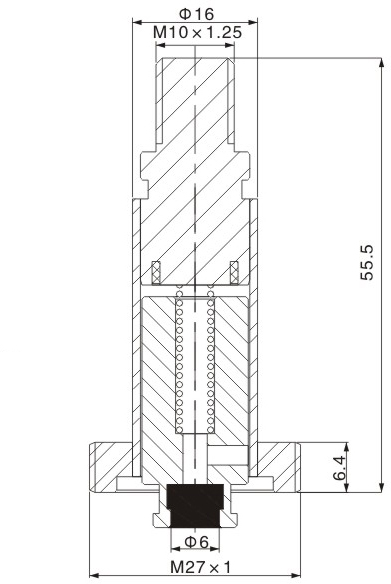

Dimension of Solenoid Valve Armature Assembly:

Data of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Common problems and solutions:

1. Damaged Armature tube :Replace armature tube.

2. Dirt ingress in armature tube:Clean valve armature or replace. Suspended particles of dirt can be filtered out with a strainer, always mount valve with coil upright to reduce wear on the top of the solenoid armature if any dirt gets into the medium. If hard water scale builds up install water softener or dry armature valve, otherwise install Y type strainer to filter out suspended particles.

3. Corrosion:Replace damaged components and check media compatibility with valve. If the armature is pitted due to Cleaning or dosing fluid? Some acids will attack the 430F stainless armature, which is corrosion resistant but not guaranteed to withstand all fluids.
