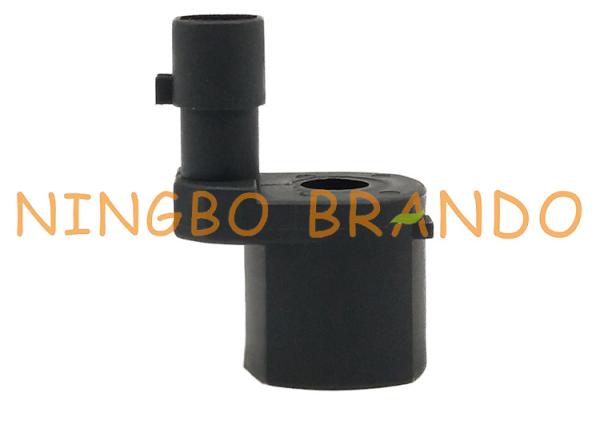

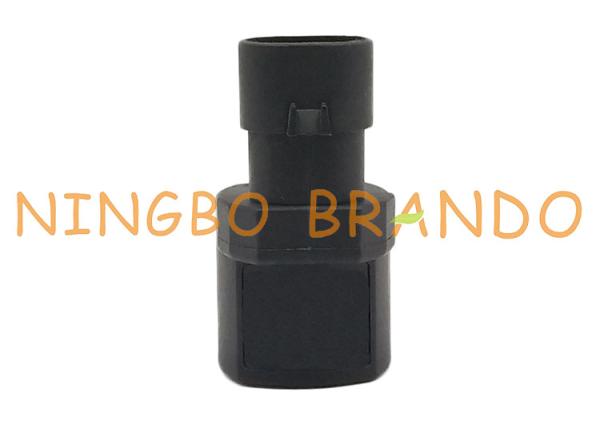

DC10V DC12V 2Ohm 2.8Ohm 3Ohm Taxi BRC 4 Cylinder LPG CNG Fuel Injector Rail Repair Kit Solenoid Coil ​

Standard coils are available for insulation classes E, F and H. The insulation class determines the coil’s maximum operating temperature for a specific life:
-Class F: 20 000 hours
-Class H: 30 000 hours

Class F coils are rated to 155℃, basically the copper wire windings can withstand a working temperature up to but not exceeding 155℃. This are the most common form of solenoid coil and are ideally suited to working ambient temperatures up to 20 ℃ and media up to 100℃.

Class H coils are rated to 180℃, basically the copper wire windings can withstand a working temperature up to but not exceeding 180C. This are the most common form of solenoid coil and are ideally suited to working ambient temperatures up to 50 ℃ and media up to 180℃.

Class N coils are rated to 200℃, basically the copper wire windings can withstand a working temperature up to but not exceeding 200℃. This are the most common form of solenoid coil and are ideally suited to working ambient temperatures up to 80 C and media up to 200℃.

Dimension of Injector Rail Repair Kit Solenoid Coil :

Technical Data:

​Attention:​

1. This air suspension compressor pump solenoid coil is made of high quality components.
2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.

Steps and methods for properly installing a solenoid valve coil:

1. Check if the solenoid valve and the selected parameters are the same, such as differential pressure, etc. If the error occurs, the solenoid valve coil will be burned out. Voltage fluctuations should be within the normal range and meet the rated voltage.

2. Before connecting the pipeline, flush the pipeline and remove the residual dirt in the pipeline. If there are residual stains, it will affect the normal use of the solenoid valve. To prevent this, a filter should be installed in the pipeline.

3. Install the solenoid valve coil of the solenoid valve vertically on the horizontal and ground pipes. If there is a special situation, it cannot be installed vertically. The appropriate solenoid valve should be ordered in advance, otherwise the solenoid valve will not work properly.

4. When installing, add a safety process and install a manual cutting valve to facilitate maintenance in case of failure.

5. Pay attention to the direction when installing, can not be reversed, installed in the direction indicated on the package, and can be reversed in some special cases such as vacuum.

6. If the water may be damaged by the medium, you must take appropriate protective measures or choose a solenoid valve with a waterproof hammer function.

7. The solenoid valve cannot be energized all the time, otherwise it will reduce its life. Note that normally open, normally closed solenoid valves cannot be used with care.
