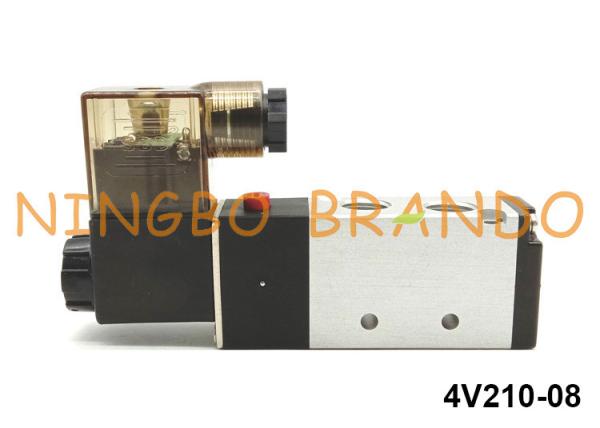

1/4" NPT 4V210-08 Pneumatic Solenoid Valve Airtac Type 5/2 Way 220V

This is 4V210-08 AirTAC type pneumatic solenoid valve, 1/4'' inlet & outlet port size, 1/8'' exhaust port size, single solenoid, 5 way 2 position, 12VDC, 24VDC, 110VAC, 220VAC volatges for you to choose, other voltages can be customized.

Product Video of 4V210-08 Pneumatic Solenoid Valve:

Main dimension of 4V210-08 Pneumatic Solenoid Valve:

Data of 4V Series Pneumatic Solenoid Valves:

Description of 4V Series Pneumatic Solenoid Valves:

1. Aluminum alloy body is strong. The valve body is made of new aluminum alloy material, which has strong pressure resistance, good corrosion resistance and fast heat dissipation;

2. High quality seal ring. High-quality seals for durability and longer life;

3. High-precision valve stem. Imported high-quality lubricant to ensure lubrication and reduce friction during exercise;

4. High frequency sub head. Made of high-quality conductor material, it has 6 times higher strength and high frequency response in 1 second for smoother operation;

5. The coil is easy to remove. Removable core nut, coil can be replaced at any time;

6. High-quality electronic components. The copper coil can work for a long time, and the wiring operation is simple. LED lights when power is on;

7. Pilot or diaphragm for controlling larger valves or small cylinders, or any pressure system that alternates pressurization and exhaust.

Note:

1.Manual button to test product status when power on;

2. When the valve is not energized, p on the product map points to A normally open, B points to S normally closed.
