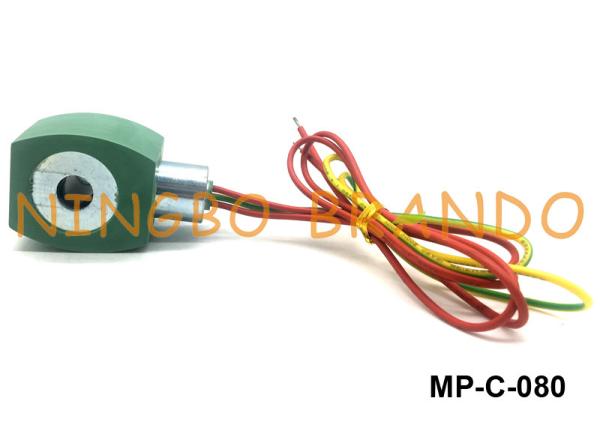

MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W
MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W
MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W
MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W
MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W
MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W
MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W
MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W
Specifications
Brand Name :
BRANDO
Model Number :
MP-C-080
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
1000
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box, Carton, Pallet
Product Name :
MP-C-080 ASCO Type Solenoid Coil
Hole Diameter :
φ14.4mm
Height :
39.3mm
Width :
49.6mm
Voltages :
120V/60Hz, 110V/50Hz, 24V DC
Power :
6.1W, 8.1W, 10.1W, 17.1W, 20.1W
Connector :
Ground Wire
Enamelled Wire Material :
Copper
Duty Cycle :
100% ED
Protection Grade :
IP65
Insulation Class :
F
Description

MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W

MP-C-080 red hat solenoid coil is suitable for ASCO type solenoid valves as follows:

ASCO type 2 way solenoid valves:

8030 series, 8040 series, 8210 series, 8221 series, 8223 series, 8262 series, 8263 series, 8220 series, 8263 series, 8030VM/8215VH Series, 8215VM/8210VH, 8262VH series, 8210LT 8222LT 8262LT/8263LT series, 8264 series, JPIS8262 JPIS8223 series, D8260 D8030 Series, 8210Q 8215Q 8262Q 8262/8263NH series, 8262P series.

ASCO type 3 way solenoid valves:

8300 series, 8314 series, 8316 series, 8317 series, 8321 series, 8320 series, 8327 series, 8360 series, 8380 series, 8314 8316 8317 series, 8553 series, D260 series.

ASCO type 4 way solenoid valves:

8340 series, 8342 series, 8344 8551 8553 series, 8233 8345 series.

ASCO type dust collector valves:

8353 series.

Youtube video of MP-C-080 ASCO Type Red Hat Solenoid Coil:

Main dimension of MP-C-080 ASCO Replacement Solenoid Coil:

MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W

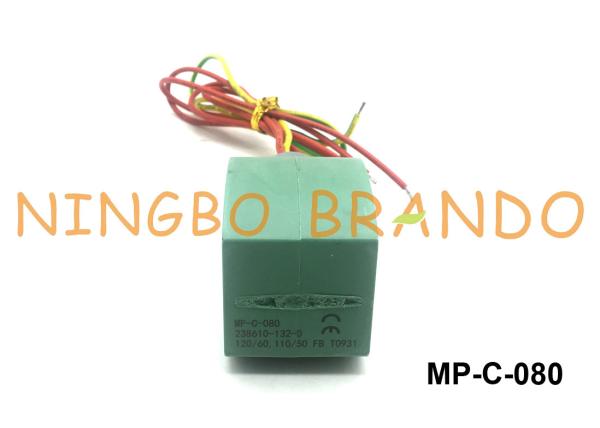

Details of 238610-132-D 120V/60Hz 110V/50Hz MP-C-080 Solenoid Coil:

MP-C-080 F Class Solenoid Valve Coil 120/60VAC 238610-032-D 10.10W 238610-132-D 17.10W

Reference number chart of ASCO Type MP-C-080 Solenoid Coils:

Part No
Voltage
Wattage
Class
238210-032-D
120/60-110/50VAC
6.10/8.10W
F
238210-052-D
208/60VAC
6.10/8.10W
F
238210-132-D
120/60VAC
9.10/11.10W
F
238214-032-D
120/60VAC
6.10/8.10W
F
238310-004-D
12VDC
-
F
238410-032-D
120/60VAC
6.10/8.10W
F
238610-005-D
24/60-22/50VAC
10.10W
F
238610-032-D
120/60VAC
10.10W
F
238610-132-D
120/60VAC
17.10W
F
238612-032
120/60VAC
10.10W
F
238614-005-D
24/60VAC
10.10W
F
238614-032-D
120/60VAC
10.10W
F
238614-132-D
120/60VAC
17.10W
F
238710-006-D
24VDC
F
238810-032-D
120/60VAC
10.10W
F
238812-032
120/60VAC
10.10W
F

Brando Factory Production of Solenoid Valve Coils:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
