NBR Buna Nitrile Material Solenoid Valve Repair Kit Replacement Secondary Diaphragm MD140S MD150S MD162S MD376S

The diaphragm of the electromagnetic pulse valve is an important part of the electromagnetic valve. It is a whole piece of high-quality rubber diaphragm which is installed to block the compressed air pipe or the air outlet of the valve, the rivet head and the air discharge unloading hole, and the bolt hole with fixed support around. It is the key control part of the electromagnetic pulse valve. The electromagnetic pulse valve diaphragm is composed of a special fabric and a thin layer of high-quality elastomer attached to it.

The diaphragm of the electromagnetic pulse valve is mainly used to seal the electromagnetic valve. When the electromagnetic pulse valve receives the signal of dust injection from the pulse controller, the compressed air enters the rear air chamber through the throttle hole. At this time, the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve, and the pulse valve is in the closed state. The pulse controller outputs the signal to move the armature of the pulse valve, and the air vent of the rear air chamber of the valve is opened The pressure of the rear chamber is rapidly lost, which makes the diaphragm move backward. The compressed air is injected through the outlet of the valve. The pulse valve is in the open state and the injection starts. The electrical signal output by the pulse controller disappears. The armature of the electromagnetic pilot head of the pulse valve is reset. The vent hole of the rear chamber is closed. The pressure of the rear chamber increases, which makes the diaphragm of the pulse valve close to the outlet of the valve. The pulse valve is in the closed state and the injection stops, The air volume of the injection time is controlled by the controller.

Data parameter table:

Youtube video of diaphragm repair kit for solenoid valve:

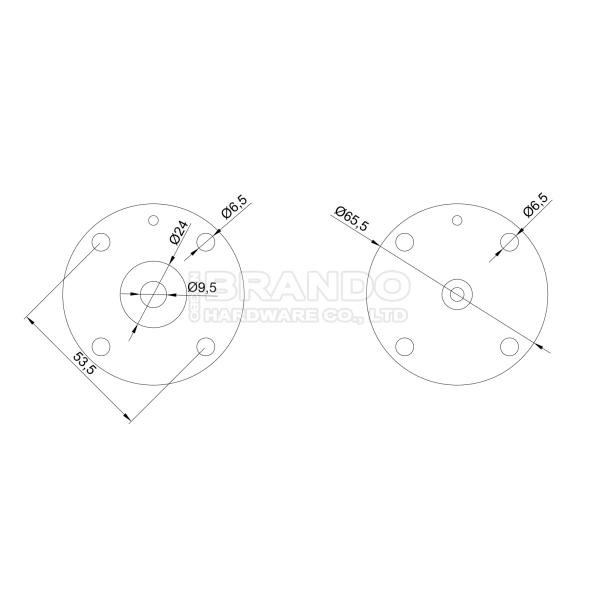

Main dimension


Detail images:

Tips: The related solenoid coils and armature assembly are all supplied.

ODM OEM service

Introduce ourself:

Focus on your demands, Offer you best solution, as the first mission of Ningbo Brando Hardware Co., Ltd, we work on designing and manufacturing solenoid coil, solenoid operator and solenoid valve for more than 10 years.We have served customers from Europe, North America, Middle east, Southeast Asian by designing and manufacturing for their automation fluid control applications, related to industries of pneumatic automation equipment, food beverage dispenser, agricultural irrigation, printing and dyeing, dust collector, home appliance, automobile, textile, refrigeration, etc. Since the company's inception, we are dedicated to providing high quality products and service to our customers. With focusing on our customers' demands, at before production we discuss technical points according to applications with customers to reduce mistake and save cost for both sides. During production, we use high precision CNC machine, machining center to control dimensions and improve productivity. At beginning and mid of machining, our senior inspectors check quality regularly by recording data on documents as per ISO9001 management system. Before shipment, our staff make testing and complete inspection one piece by one piece to ensure the products without defect when reached our customer's hands.Ningbo Brando Hardware Co., Ltd will offer you best service with fast response, let's make the fluid control application more widely and smartly.

Our production

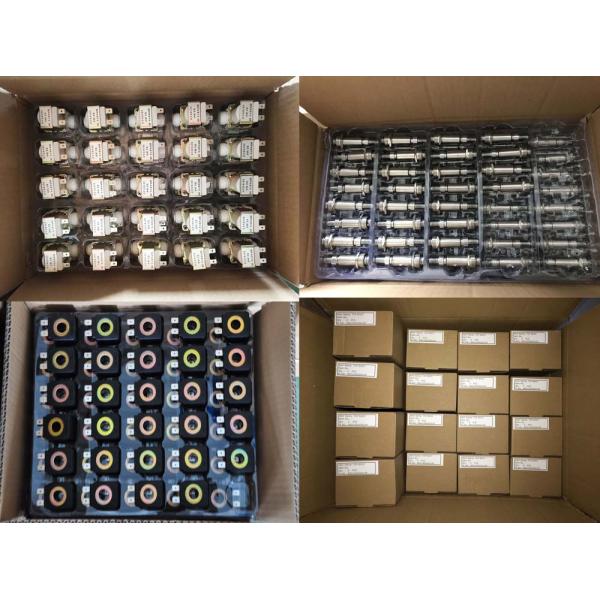

Packing＆shipping:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
