6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W
6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W
6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W
6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W
6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W
6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W
6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W
6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W
Specifications
Brand Name :
BRANDO
Model Number :
BB11741308
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
500pcs
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
10000pcs per month
Delivery Time :
Negotiation
Packaging Details :
Box, Carton, Pallet
Price :
Negotiation
Product Name :
Solenoid Coil
Voltage :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power :
8W, 11W, 15W
Connector :
DIN43650A
Description

6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W

This solenoid coil is popularly used in various Burkert solenoid valves, for example, 6013A, 6014 C, etc. The coil is connected together with a 2508 DIN43650A connector. The standard coil voltage is 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. The standard coil power is 8W, 11W, 15W. Other voltages and powers can be customized according to your requirements.

Technical Data:

BRANDO Model
BB11741308
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power
8W, 11W, 15W
Other voltage and power can be customized
Connector
DIN43650A

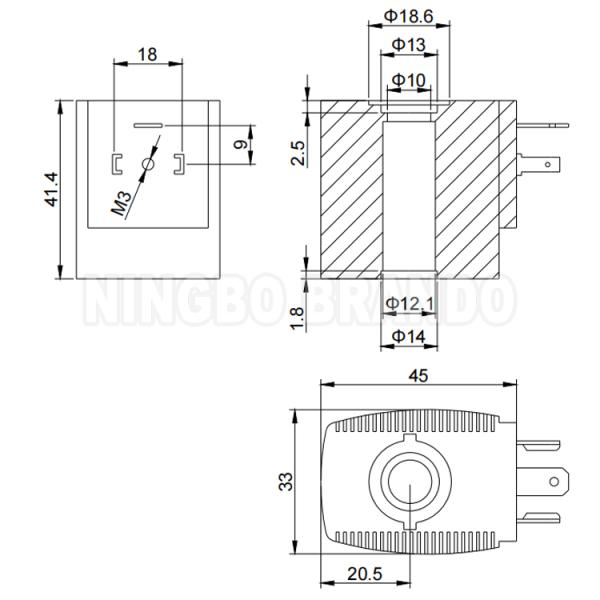

Main Dimension:

6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W

Our Production:

6013 A 6014 C Solenoid Valve Coil 24V DC 110V 230V 50Hz 8W 11W 15W

FAQ: How to choose a matching solenoid coil?

1. Voltage:
The first thing to consider is the type and size of the power supply voltage of the solenoid valve, which is DC or AC. If it is AC voltage, the frequency needs to be provided, because the same coil 50Hz and 60Hz power difference is about 1.2 times.
2. Power or Resistance:
3. Dimension: Outer diameter and height of the solenoid armature or solenoid valve coil’s aperture and height.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leading type, standard interface, etc.
6. Application: Some special application areas require the use of specially designed Solenoid coils. Different general. applications, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
