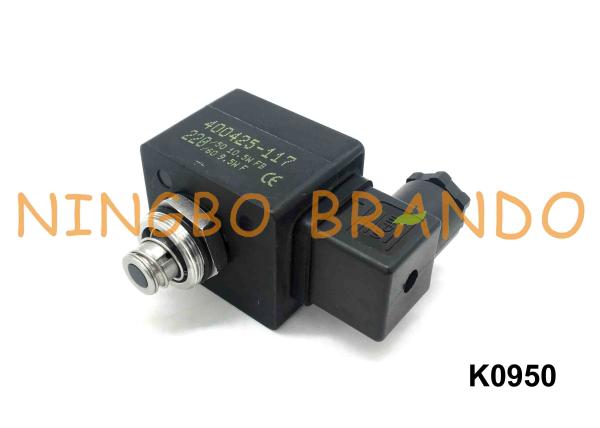

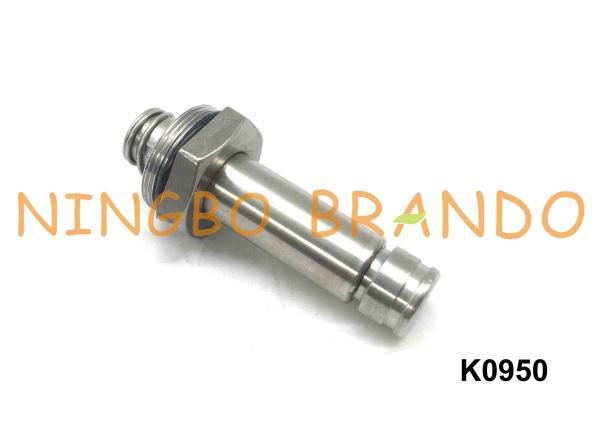

K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51
K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51
K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51
K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51
K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51
K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51
K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51
K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51
Specifications
Brand Name :
Brando
Model Number :
BAPC214041405
Certification :
CE
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
250000 sets per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box, Carton, Pallet
Product Name :
K0950 ASCO Type Solenoid Pilot Repair Kits
Function :
2 Way, NC (Normally Closed)
Seat connection type :
M23.8x1 Thread
Plunger Tube Material :
304 Stainless Steel
Plunger Material :
Stainless Steel 430FR
Seals Material :
NBR (Common), Viton (Available)
Suitable Coil Hole Diameter :
φ14mm
Suitable Coil Height :
40mm
Suitable Orifice Max :
7.6mm
Applicable valve model :
SCG353A047, SCG353050, SCG353051, SCG353060, SCG353A065
Description

K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A07 SCG353A050 SCG353A051

The solenoid valve assembly may include a solenoid driver adapted to generate a first voltage level for initiating movement of the magnetized armature, and a second voltage level for maintaining the magnetized armature in an energized position. The solenoid valve assembly may have a housing, a solenoid, and a magnetized cylindrical armature that is couplingly coupled to the solenoid and located within a hollow center of the solenoid. The armature may have a spring fixed to one end of the armature and one end of the solenoid, wherein the spring and the armature can be linear in the fluid cavity of the valve housing and in the cylindrical plunger guide of the solenoid motion. Linear motion is controlled by the magnetic field of the solenoid and spring so that the magnetized armature can abut the orifice fluid outlet of the orifice plate to prevent fluid from flowing through it.

YouTube video of K0950 ASCO Type Solenoid Valve Pilot Repair Kit:

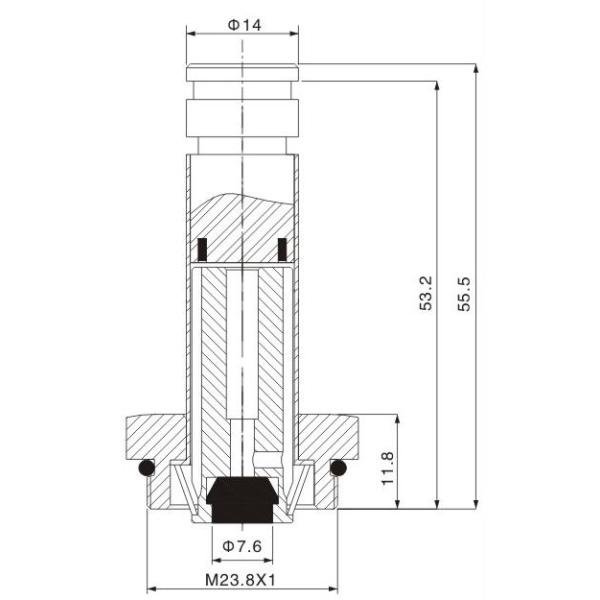

Main dimension of K0950 ASCO Type Pulse Valve Repair Kit:

K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51

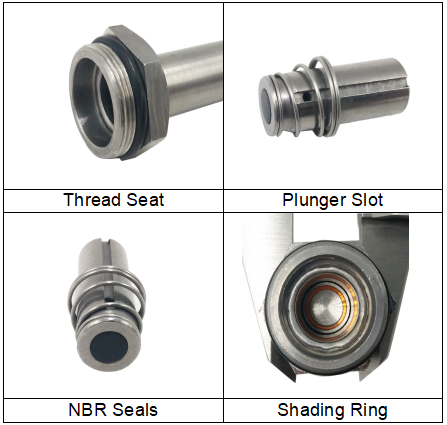

Details display of K0950 ASCO Type Solenoid Valve Rebuild Kit:

K0950 ASCO Type Solenoid Pilot Repair Kit With Armature Assembly For SCG353A47/50/51

Technical parameters of ASCO Type Diaphragm Valve Solenoid Kit:

Model BAPC214041405
Type 2/2 Way
Function Normally Closed (NC)
Core Tube Material 304 Stainless steel
Moving Core Material Stainless steel 430FR
Seal Material NBR (Nitrile), VITON (FKM)
Suitable Coil Hole Diameter 14mm
Suitable Coil Height 40mm
Inlet Orifice Max 7.6mm
Voltage DC, AC
Connection M23.8x1 Thread

ASCO Type diaphragm valve repair kits and coils comparison table:

Valve Repair Kits Coils
AC DC 24VDC 24 VAC 110VAC 220VAC
SCG353A043 C113444 C113444 400325642 400325101 400325118 400325118
ACG353AD44 C113444 C113444 400325642 400325101 400325118 400325118
ACG353052 C113444 C113444 400325642 400325101 400325118 400325118
SCG353053 C113444 C113444 400325642 400325101 400325118 400325118
SCG353AD47 C113827 C113827 400425342 400425101 400425118 400425117
SCG353050 C113685 C113686 400425342 400425101 400425118 400425117
SCG353051 C113685 C113686 400425342 400425101 400425118 400425117
SCG353060 C123432 C123433 400425342 400425101 400425118 400425117
SCG353AD65 C113827 C113827 400425342 400425101 400425118 400425117

Tips: The valves mentioned, related diaphragms and solenoid coils are all supplied.

Factory production of Solenoid Valve Armature Plunger:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
