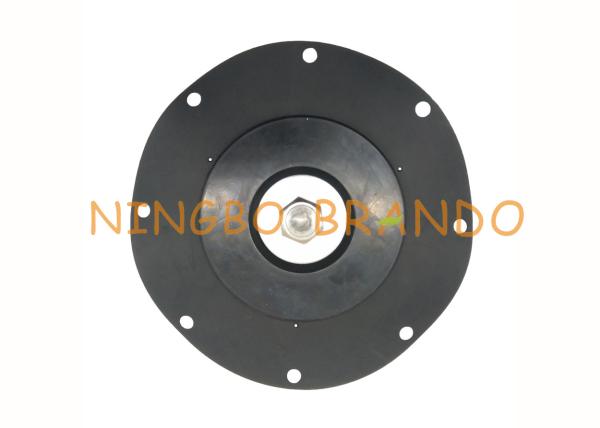

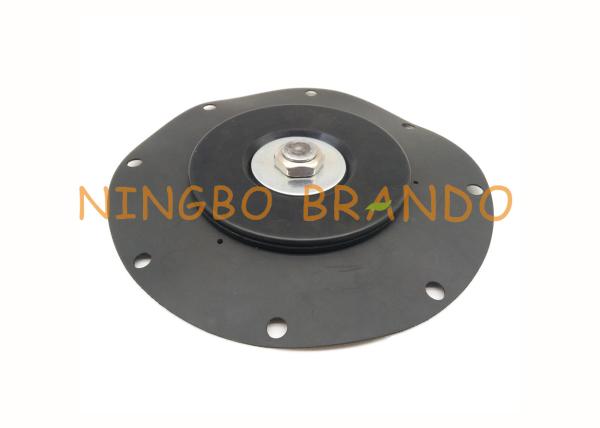

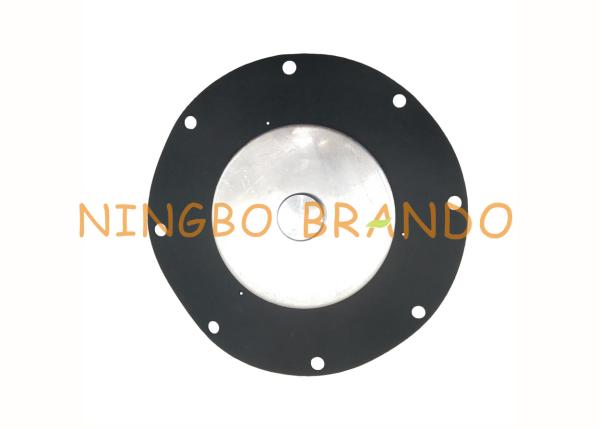

DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type
DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type
DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type
DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type
DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type
DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type
Specifications
Brand Name :
Brando
Model Number :
D102A
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability :
200000 pcs per month
Delivery Time :
4-7 Days
Packaging Details :
Plastic Bags, Cartons, Pallet
Diaphragm material :
NBR/Buna
Diaphragm seat material :
Nylon
Suitable valve number :
DMF-Y-102SA
Mounting hole size :
8.5mm
Diaphragm outer distance :
200mm
Center Distance :
185mm
Spring :
With
Packaging :
Individual sealed
Diaphragm seat OD :
115mm
Diaphragm seat ID :
59.5mm
Description

DMF-Y-102SA Pneumatic Valve Diaphragm For Dust Collector Air Valve Pneumatic Actuator 4 Inch FKM SBFEC Type

This is replacement diaphragm kits for the SBFEC 4'' DMF-Z-102 MF-Z-102 DMF-ZM-102 MF-ZM-102 pulse valves. This kit includes the standard wearing parts of the valve for field replacement.

By registering for a customized catalog, Brando offers a fast and easy way to order your replacements parts. We'll take your system specifications and create a catalog based on your system making it a breeze to find the right products for your installation.

The operating temperature range and pressure range of the diaphragm itself depend on the type of glue, fabric and structure. The diaphragm can work at - 50 ~ 100 ℃, 0.4 ~ 0.8MPa; the fluororubber and silicone rubber diaphragm can work at - 80 ~ 232 ℃. The chlorophenol rubber diaphragm can work under the pressure of 0.4 ~ 0.8MPa, with good air tightness, aging resistance, and the service life equal to that of engine overhaul

BRANDO company welcome clients from all over the world, we attend exhibitions in many countries, such like America, Europe, Australia, Malaysia, Pakistan, Egypt, New Zealand, Poland, Germany, Korea, India, Indonesia, etc. We highly welcome your visit at our booth or our company.

Main dimension of BFEC Replacement Diaphragm Repair Kits:

DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type

Available Models of SBFEC Type DMF/MF Diaphragm Valve Repair Kits:

Ordering Code
Fitted Valve Code
Port Size
DTY
MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
Tip: Secondary Diaphragm
D20A
DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
3/4''
D25
DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
DMF-T-20, MF-T-20
3/4'' & 1''
D40
DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
DMF-T-25S, MF-T-25S
1'' & 1-1/2''
D50
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
DMF-T-50S, MF-T-50S
2''
D62
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
2-1/2''
D76
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
3''
D102
DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
4''
D102A
DMF-Y-102SA, MF-Y-102SA
4''
DZL-20B
DMF-ZL-B, MF-ZL-B
3/4''

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

Application Examples:

DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type

YouTube video of SBFEC Type NBR Diaphragm Valve Repair Kit:

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC TypeDMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type

DMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC TypeDMF-Y-102SA Pneumatic Valve Diaphragm Repair Kits For Dust Collector Solenoid Valve 4 Inch FKM SBFEC Type

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing
