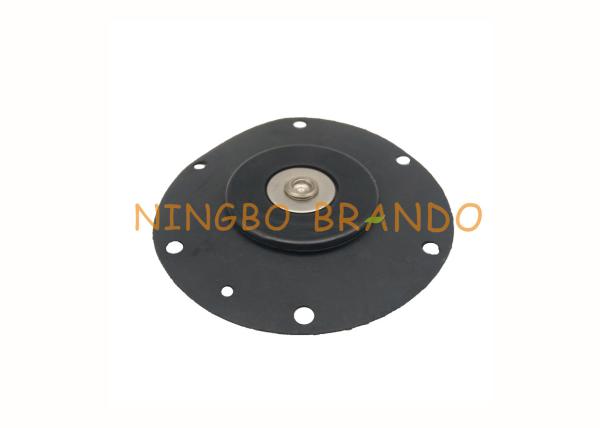

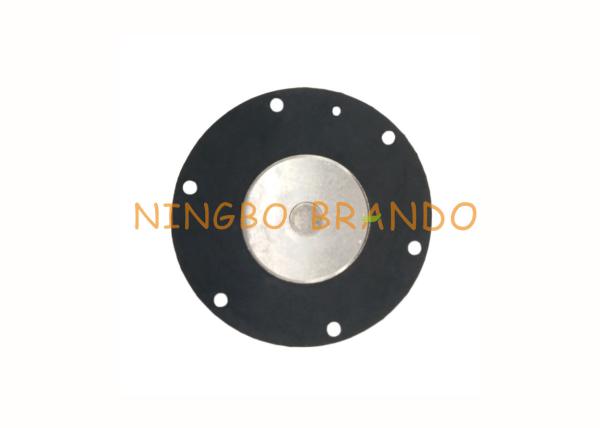

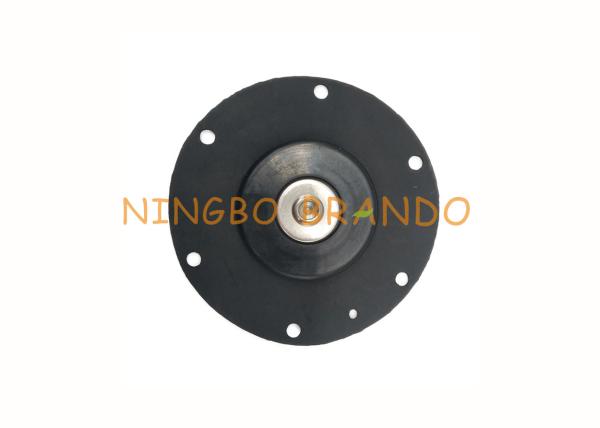

K2500 M1183 K3500 M1581 K4000 M1182 K4502 M2162 K3502 M1591 K4504 M2187 K2503 M1887 CA/RCA 35 Repair Kit
K2500 M1183 K3500 M1581 K4000 M1182 K4502 M2162 K3502 M1591 K4504 M2187 K2503 M1887 CA/RCA 35 Repair Kit
K2500 M1183 K3500 M1581 K4000 M1182 K4502 M2162 K3502 M1591 K4504 M2187 K2503 M1887 CA/RCA 35 Repair Kit
K2500 M1183 K3500 M1581 K4000 M1182 K4502 M2162 K3502 M1591 K4504 M2187 K2503 M1887 CA/RCA 35 Repair Kit
K2500 M1183 K3500 M1581 K4000 M1182 K4502 M2162 K3502 M1591 K4504 M2187 K2503 M1887 CA/RCA 35 Repair Kit
K2500 M1183 K3500 M1581 K4000 M1182 K4502 M2162 K3502 M1591 K4504 M2187 K2503 M1887 CA/RCA 35 Repair Kit
Specifications
Brand Name :
Brando
Model Number :
G35
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
negotiation
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
100000PCS PER MONTH
Delivery Time :
7 working days
Packaging Details :
Inner Box, Carton, Pallet
Diaphragm material :
Nitrile/Buna
Sealing gasket material :
Nitrile/Buna
Suitable valve number :
CA35T RCA35T
Center Distance :
98mm
Diaphragm outer distance :
110mm
Sealing gasket OD :
57mm
Sealing gasket ID :
28mm
Spring :
With
Air hole :
With
Packaging :
Individual sealed
Size :
1-1/2'
Description

K2500(M1183) K3500(M1581) K4000(M1182) K4502(M2162) K3502(M1591) K4504(M2187) K2503(M1887)CA/RCA 35 Repair Kit

Goyen diaphragm valve is a high-performance product developed by Goyen, an Australian valve manufacturer. Goyen is a large valve distributor in Southeast Asia. Its main products include: Goyen diaphragm valve, Goyen electromagnetic pulse valve, Goyen industrial control valve, Goyen dust monitoring system, Goyen blower coil, Goyen pulse solenoid valve, etc

Goyen pulse valve is the actuator and key component of the pulse blowing ash cleaning system. The diaphragm in the valve divides the electromagnetic pulse valve into two chambers, the front and the back. When the compressed air is connected and enters the back chamber through the throttle hole, the pressure of the back chamber will press the diaphragm against the output port of the valve, and the electromagnetic pulse valve is in the "closed" state. The electric signal of the pulse injection controller makes the armature of the electromagnetic pulse valve move, the vent hole of the rear air chamber opens, the rear air chamber grabs quickly, the diaphragm moves backward, the compressed air is injected through the output port of the valve, and the pulse valve is in "open" state. The compressed air is ejected from the valve in an instant to form a jet air flow.

Deference number:

Material Repair kit Fitted Valve Model Port Size
Buna/Nylon K2000(M1204B) CA20, RCA20, RCAC20 3/4''
K2003(M1174B)
K2016
K2034
Buna/Buna K2002(M764)
FKM K2007(M2080B)
K2004(1328B)
K2017
K2033
Buna/Nylon K2501(M1183B) CA25, RCA25, RCAC25 1''
K2529
K2549
K2531
K2545
K2546
Buna/Buna K2502(M736)
FKM K2503(M1887)
K2530
K2532
K2551
Buna/Nylon K2500(M1183)
CA32, RCA32, CA35, RCA35,
CA40, RCA40, CA45, RCA45
 1-1/2''
K3500(M1581)
K4000(M1182)
K4502(M2162)
Buna/Buna K3502(M1591)
K4504(M2187)
FKM K2503(M1887)
K4004(M1761)
K4007(M1156)
K4503(M2163)

Buna/Nylon

Buna/Buna

 K5004(M1638A) CA50, RCA50, CA62, RCA62 2'' , 2-1/2''
K5005(M1639A)
FKM K5000(M1157A)
K5002(M1528A)

Buna/Nylon

Buna/Buna

 K7600 CA76, RCA76 3''
K7604
K7610
FKM K7602
Buna/Nylon K10200 CA102, RCA102 4''
Buna/Buna K10203
FKM K10201

Buna/Nylon

Buna/Buna

 K8000 CA8, RCA8 8''
FKM


Dimension Diagram:
