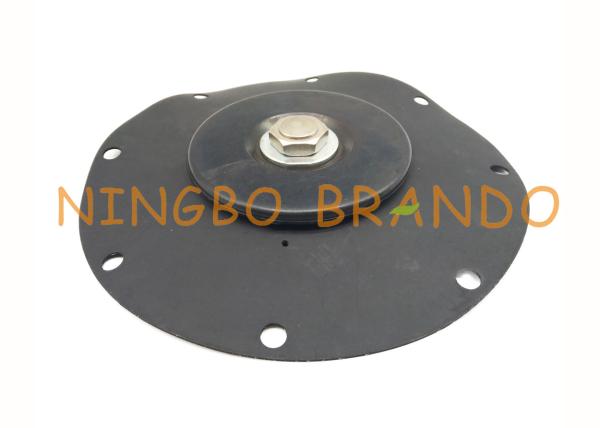

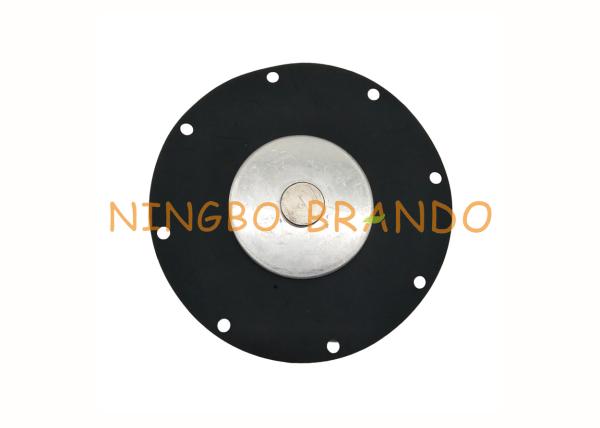

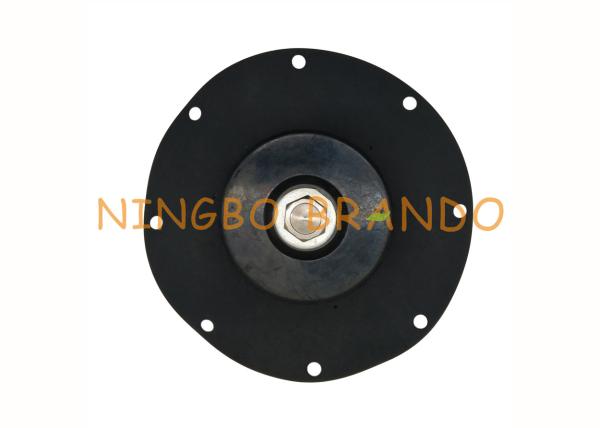

K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve
K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve
K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve
K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve
K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve
K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve
Specifications
Brand Name :
Brando
Model Number :
G76
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 pc
Price :
negotiation
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
100000PCS PER MONTH
Delivery Time :
7 working days
Packaging Details :
Inner Box, Carton, Pallet
Diaphragm material :
Nitrile/Buna
Sealing gasket material :
Nitrile/Buna
Suitable valve number :
CA76, RCA76
Center Distance :
184.5mm
Diaphragm outer distance :
200mm
Sealing gasket OD :
103mm
Sealing gasket ID :
50mm
Spring :
With
Air hole :
With
Packaging :
Individual sealed
Size :
3''
Description

K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve

The pulse valve diaphragm is suitable for the production of electromagnetic pulse valve diaphragm rubber plate, with strong oil and acid resistance, alkali resistance and other characteristics, which can easily ensure synchronous operation with other control components and control the injection of pulse compressed air. Even in the harsh working environment, it can ensure its normal operation and long service life. At the ambient temperature of - 20-80 ℃ and working pressure difference of 0.8MPa, the working life of the diaphragm is not less than 1 million times.

Pulse valve diaphragm features:

1. Develop all kinds of large, small, thick and thin cloth sandwiched diaphragms. 2. The compressive strength of the cloth clip can be based on the customer's needs, using suitable adhesive and cloth adhesive synthetic type. 3. Rubber materials include NBR, EPDM FDA, Cr, NR, silicon, FKM, etc. 4. Fiber cloth, nylon with various warp and weft yarns, dacron, cotton canvas, stretch fabric, etc

Deference number:

Material Repair kit Fitted Valve Model Port Size
Buna/Nylon K2000(M1204B) CA20, RCA20, RCAC20 3/4''
K2003(M1174B)
K2016
K2034
Buna/Buna K2002(M764)
FKM K2007(M2080B)
K2004(1328B)
K2017
K2033
Buna/Nylon K2501(M1183B) CA25, RCA25, RCAC25 1''
K2529
K2549
K2531
K2545
K2546
Buna/Buna K2502(M736)
FKM K2503(M1887)
K2530
K2532
K2551
Buna/Nylon K2500(M1183)
CA32, RCA32, CA35, RCA35,
CA40, RCA40, CA45, RCA45
 1-1/2''
K3500(M1581)
K4000(M1182)
K4502(M2162)
Buna/Buna K3502(M1591)
K4504(M2187)
FKM K2503(M1887)
K4004(M1761)
K4007(M1156)
K4503(M2163)

Buna/Nylon

Buna/Buna

 K5004(M1638A) CA50, RCA50, CA62, RCA62 2'' , 2-1/2''
K5005(M1639A)
FKM K5000(M1157A)
K5002(M1528A)

Buna/Nylon

Buna/Buna

 K7600 CA76, RCA76 3''
K7604
K7610
FKM K7602
Buna/Nylon K10200 CA102, RCA102 4''
Buna/Buna K10203
FKM K10201

Buna/Nylon

Buna/Buna

 K8000 CA8, RCA8 8''
FKM


Dimension Diagram:

K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve

Detailed Images:

K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve

Youtube video of diaphragm videos:

Our Production:

K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve

Packing＆shipping

K7600 K7604 K7610 K7602 3 Inch CA/RCA 76 Repair Kit Solenoid ValveDiaphragm Valve Pulse Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
