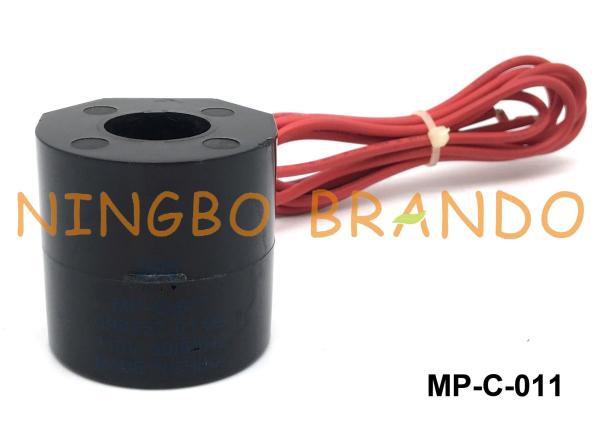

Henny Penny Solenoid Valve Coil MP-C-011 099257-014G 110V 50/60Hz
Henny Penny Solenoid Valve Coil MP-C-011 099257-014G 110V 50/60Hz
Specifications
Brand Name :
BRANDO
Model Number :
MP-C-011
Certification :
None
Place of Origin :
Ningbo, China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
300000 set per month
Delivery Time :
Negotiation
Packaging Details :
Inner Box, Carton, Pallet
Product Name :
MP-C-011 Solenoid Coil
Voltage :
24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz)
Reference No :
099257-009-D, 099257-016-D, 099257-005-D, 099257-008-D, 099257-001-D 099257-004G, 099257-014G, 099257-006G
Connection Type :
Flying Leads
Insulation Class :
F, H
Temperatrue Class :
T, B
Repair Solenoid Valve Model :
29515, 29547, 29698, 18724, 18721, 17120, 17121
Application :
Henny Penny Fryer
Description

Henny Penny Solenoid Valve Coil MP-C-011 099257-014G 110V 50/60Hz

The purpose of a solenoid valve coil is to convert electrical energy into linear motion. The coil consists of copper wire wound around a hollow form. When electric current flows through the coil, a magnetic field is created. This is accomplished by placing a ferromagnetic core inside the coil. In a solenoid valve, the ferromagnetic core is called the valve plunger. When the current flows through the coil, the lines of magnetic flux turn the plunger into an electromagnet. The magnetic field causes the plunger to slide further up into the coil, opening the valve body orifice or pilot orifice.

Dimension & Data of MP-C-011 Solenoid Coil:

Henny Penny Solenoid Valve Coil MP-C-011 099257-014G 110V 50/60Hz

Model
MP-C-011
Connection Type
Flying Leads
Voltage
24VAC, 110VAC, 120VAC, 220VAC, 240VAC (50/60Hz)
Insulation Class
H, F
Temperature Class
T, B

Henny Penny Solenoid Valve Coil MP-C-011 099257-014G 110V 50/60Hz

Model
BAPC216049003
Function
2/2 Way, Normally Closed
Tube Material
Stainless Steel
Shading Ring Material
Copper
Seat Type
Thread
Fitted Coil
MP-C-011
Application Example
Henny Penny Fryer

Multi-angle display of MP-C-011 solenoid coil:

Henny Penny Solenoid Valve Coil MP-C-011 099257-014G 110V 50/60Hz

MP-C-011 Coil surface parameter printing display:

Henny Penny Solenoid Valve Coil MP-C-011 099257-014G 110V 50/60Hz

Brando Factory Production Video of Solenoid Coils:

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
