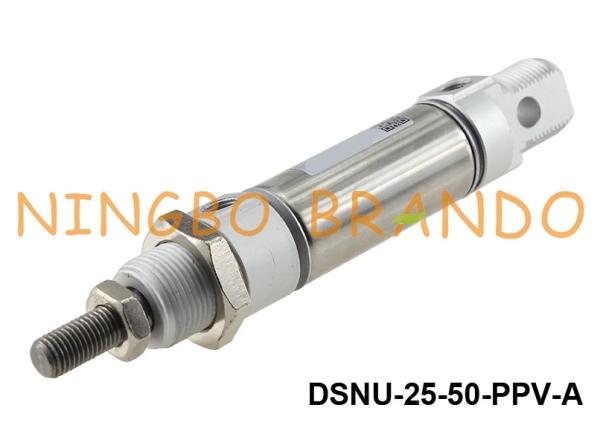

Festo Type DSNU-25-50-PPV-A Pneumatic Cylinder Double-Acting ISO 6432
Festo Type DSNU-25-50-PPV-A Pneumatic Cylinder Double-Acting ISO 6432
Specifications
Brand Name :
BRANDO
Model Number :
DSNU
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
4-7 work days
Packaging Details :
Inner Box, Carton, Pallet
Product Series :
Piston Rod Cylinder
Bore Size (mm) :
8, 10, 12, 16, 20, 25, 32, 40, 50, 63
Standard Stroke (mm) :
10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 200, 250, 300, 350, 400, 450, 500
Mode of Operation :
Double Acting
Operating Pressure Range :
0.1 to 1.0 MPa
Conforms to Standard :
ISO 6432
Description

Festo Type DSNU-25-50-PPV-A Pneumatic Cylinder Double-Acting ISO 6432

Pneumatic cylinders or actuators give direct movement and apply power on hardware for different mechanical procedures. They push, pull, pivot and clip. They move and position items or machine parts. Pneumatic cylinders are basic, practical, simple to-introduce gadgets. They can create high power and a surfeit of speeds. Their movement can be slowed down without causing internal damage.

Pneumatic cylinders are the most befitting answer to your prayers regarding force and motion needs in OEM applications. The explanations behind this is they are basic in design strength, easy to establish, affordable in cost, and solid in execution. Pneumatic cylinders are structured in an assortment of sizes, styles, and designs. OEMs need to pick the pneumatic cylinder cautiously, with the goal that it will buck up the application well.


Specifications of DSNU Series Pneumatic Cylinder:

Bore Size (mm) 8 10 12 16 20 25 32 40 50 63
Acting Type DSNU Double Acting
ESNU Single Acting
Port Size M5 G1/8'' G1/4'' G3/8''
Piston Rod thread M4 M6 M8 M10x1.25 M12x1.25 M16x1.25
Cushioning Type - Adjustable Cushion
Cushioning Length (PPV) - 12mm 15mm 17mm 14mm 18mm 20mm 21mm
Fluid Air (to be filtered by 40μm filter element)
Operating Pressure Range 0.1 to 1.0 MPa
Temprature (℃) -20 to +70


Stroke of DSNU Series Pneumatic Cylinder:

Bore Size (mm) Standard Stroke (mm) Max. Std Stroke Stroke Tolerance
Double Acting 8

10, 25, 40, 50, 80, 100

 100 +1
10

10, 25, 40, 50, 80, 100

 100 +1
12

10, 25, 40, 50, 80, 100, 125, 150, 160, 200

 200 +1.5

Double Acting,

Adjustable Cushion

 16

10, 25, 40, 50, 80, 100, 125, 150, 160, 200

 200 +1.5
20 10, 25, 40, 50, 80, 100, 125, 150, 160, 200, 250, 300 300 +1.5
25

10, 25, 40, 50, 80, 100, 125, 150, 160,

200, 250, 300, 350, 400, 450, 500

 500 +2
32 500 +2
40 500 +2
50 500 +2
63 500 +2
Single Acting 8 10, 15, 20, 25, 30, 40, 50 50 +1
10 50 +1
12 50 +1
16 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100 100 +1
20 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150 150 +1
25 150 +1
32 150 +1
40 150 +1
50 150 +1
63 150 +1


Ordering Code of DSNU Series Pneumatic Cylinder:

Festo Type DSNU-25-50-PPV-A Pneumatic Cylinder Double-Acting ISO 6432

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
