Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''
Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''
Specifications
Brand Name :
BRANDO
Model Number :
D
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
5 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability :
10000000pcs per month
Delivery Time :
1 week after payment
Packaging Details :
PVC bag, then inner box, then carton, then pallet
Product Name :
Pneumatic Silencer Muffler
Tube OD (Inch) :
1/8", 1/4'', 3/8'', 1/2'', 3/4'', 1''
Material :
Brass
Working Pressure Range :
0 to 0.8MPa
Working Temperature :
-10 To +250℃
Working Medium :
Compressed Air
Description

Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''

Pneumatic Silencers are installed directly into the exhaust port of pneumatic valves and equipment. They work by diffusing the released air via a larger surface area. This, in turn, reduces the turbulence and decreases noise levels.

The two most common types of silencer are conical or flat. Both designs come in a range of different working pressure and temperature ratings, connection types and housing materials both metal and plastic. The application will influence the type of silencer selected.

Technical data of Pneumatic Silencer Muffler:

Model
Working Medium
Working Pressure
(MPa)
Working Temp
(℃)
Circulation Capacity
Noise Effect
"S" data
Nominal Flux
-2.5
Compressed Air
0 to 0.8
-10 to +250
5
200L/Min
≥20dB
-6
20
960L/Min
-8
40
1920L/Min
-10
60
2880L/Min
-15
110
5280L/Min
-20
190
9120L/Min
-25
300
10000L/Min
-32
400
19200L/Min
≥25dB
-40
650
31200L/Min
-55
700
33600L/Min

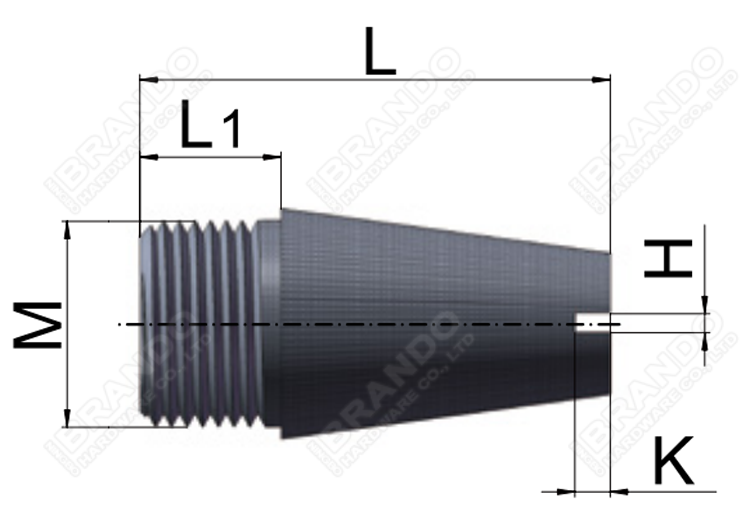

Dimension of Pneumatic Silencer Muffler:

Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''

Model No
M
L1
L
H
K
D-6
G1/8''
6
21
2
2
D-8
G1/4''
9
27
2
2
D-10
G3/8''
11
36
2
2
D-15
G1/2''
11
44
2
3
D-20
G3/4'
12
65
3
3
D-25
G1''
15
75
4
4

List of other Brass Pneumatic Air Muffler:

Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''
Throttle Valve C Type Throttle Valve PTV Throttle Valve SD Timing Muffler
Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''
Muffler (Sintered) Muffler (Flat Head) LM Aluminous Muffler G Type Muffler
Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''
D Type Muffler E Type Muffler PSU Plastic Muffler SU Plastic Muffler

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valve 3/2 Way Pneumatic Valve 5/2 Way Pneumatic Valve 5/3 Way Pneumatic Valve
Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''
Namur Solenoid Valve Air Filter Regulator Lubricator Pneumatic Cylinder Silcencers And Fittings
Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4'' Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''

Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''

Brass Pneumatic Solenoid Valve Exhaust Silencer Muffler 1/8'' 1/4''

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
