Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''
Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''
Specifications
Brand Name :
BRANDO
Model Number :
G
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
5 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability :
10000000pcs per month
Delivery Time :
1 week after payment
Packaging Details :
PVC bag, then inner box, then carton, then pallet
Product Name :
Pneumatic Silencer Muffler
Tube OD (Inch) :
1/8", 1/4''
Material :
Brass
Working Pressure Range :
0 to 0.8MPa
Working Temperature :
-10 To +250℃
Working Medium :
Compressed Air
Description

Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''

Housing Materials:

The housing material of your silencer should be carefully considered when making your selection, application and environment will influence this. There are various housing materials available, the most common being sintered brass, sintered bronze and stainless steel.

Connection Types:

Most pneumatic silencers have a threaded male connection, or alternatively, they can have a push-in hose connection. Thread standards include BSP (British Standard Pipe) these can be BSPP (parallel or G) or BSPT (tapered or R). Other threads types are NPT (National Pipe Thread) or Metric, M3, M5, M7.

Technical data of Pneumatic Silencer Muffler:

Model
Working Medium
Working Pressure
(MPa)
Working Temp
(℃)
Circulation Capacity
Noise Effect
"S" data
Nominal Flux
-2.5
Compressed Air
0 to 0.8
-10 to +250
5
200L/Min
≥20dB
-6
20
960L/Min
-8
40
1920L/Min
-10
60
2880L/Min
-15
110
5280L/Min
-20
190
9120L/Min
-25
300
10000L/Min
-32
400
19200L/Min
≥25dB
-40
650
31200L/Min
-55
700
33600L/Min

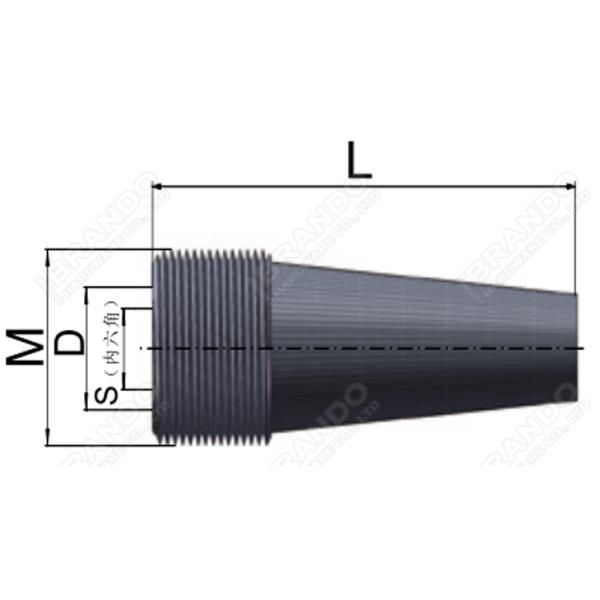

Dimension of Pneumatic Silencer Muffler:

Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''

Model No
M
L
D
S
G-6
1/8''
60
7
5
G-8
1/4''
64
8
5


List of other Brass Pneumatic Air Muffler:

Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''
Throttle Valve C Type Throttle Valve PTV Throttle Valve SD Timing Muffler
Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''
Muffler (Sintered) Muffler (Flat Head) LM Aluminous Muffler G Type Muffler
Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''
D Type Muffler E Type Muffler PSU Plastic Muffler SU Plastic Muffler

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valve 3/2 Way Pneumatic Valve 5/2 Way Pneumatic Valve 5/3 Way Pneumatic Valve
Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''
Namur Solenoid Valve Air Filter Regulator Lubricator Pneumatic Cylinder Silcencers And Fittings
Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4'' Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''

Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''

Brass Solenoid Valve Pneumatic Muffler Filter Noise Silencer 1/8'' 1/4''

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
