Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''
Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''
Specifications
Brand Name :
BRANDO
Model Number :
SU
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
5 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability :
10000000pcs per month
Delivery Time :
1 week after payment
Packaging Details :
PVC bag, then inner box, then carton, then pallet
Product Name :
Pneumatic Silencer Muffler
Tube OD (Inch) :
1/8", 1/4'', 3/8'', 1/2'', 3/4'', 1''
Material :
Plastic
Working Pressure Range :
0 to 0.8MPa
Working Temperature :
-10 To +250℃
Working Medium :
Compressed Air
Description

Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''

A Pneumatic silencer’s function is to vent pressurized air after it has performed work at a safe noise level and to prevent contaminants from exiting (if it is combined with a filter). Excessive noise may be produced as the pressurized air is released to the environment. Noise is the result of turbulent air which is produced when the fast-moving air released from the vent collides with the static air of the environment. Typically, silencers are installed directly at the exhaust port of a valve and diffuse the released air through a larger surface area which reduces turbulence and thus decreases noise levels. Pneumatic exhaust silencers are commonly designed with a porous material to increase the surface area of the exhaust port which it covers. They can also be installed on hoses.

Technical data of Pneumatic Silencer Muffler:

Model
Working Medium
Working Pressure
(MPa)
Working Temp
(℃)
Circulation Capacity
Noise Effect
"S" data
Nominal Flux
-2.5
Compressed Air
0 to 0.8
-10 to +250
5
200L/Min
≥20dB
-6
20
960L/Min
-8
40
1920L/Min
-10
60
2880L/Min
-15
110
5280L/Min
-20
190
9120L/Min
-25
300
10000L/Min
-32
400
19200L/Min
≥25dB
-40
650
31200L/Min
-55
700
33600L/Min

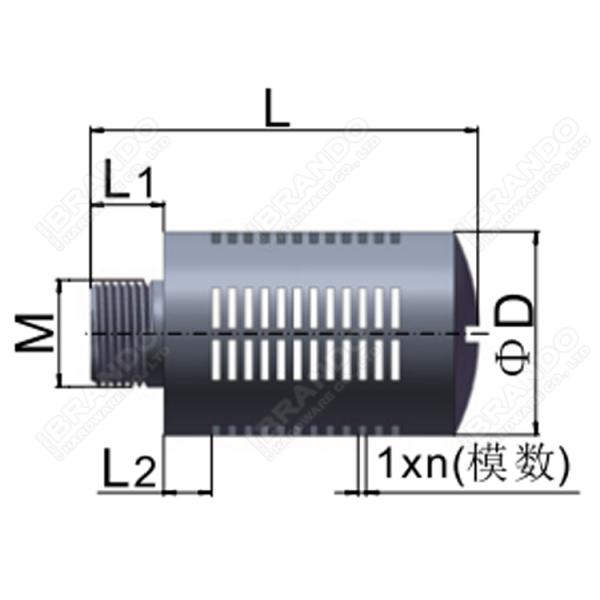

Dimension of Pneumatic Silencer Muffler:

Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''

Model No
M
φD
L1
L2
L
n
SU-1/8''
1/8''
16
7
2
32
12
SU-1/4''
1/4''
20
8
3
42
15
SU-3/8''
3/8''
24
10
4
56
19
SU-1/2''
1/2''
24
10
4
56
19
SU-3/4''
3/4'
48
19
8
114
39
SU-1''
1''
48
19
8
114
39

List of other Brass Pneumatic Air Muffler:

Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''
Throttle Valve C Type Throttle Valve PTV Throttle Valve SD Timing Muffler
Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''
Muffler (Sintered) Muffler (Flat Head) LM Aluminous Muffler G Type Muffler
Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''
D Type Muffler E Type Muffler PSU Plastic Muffler SU Plastic Muffler

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valve 3/2 Way Pneumatic Valve 5/2 Way Pneumatic Valve 5/3 Way Pneumatic Valve
Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''
Namur Solenoid Valve Air Filter Regulator Lubricator Pneumatic Cylinder Silcencers And Fittings
Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2'' Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''

Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''

Plastic Pneumatic Valve Exhaust Silencer Muffler 1/8'' 1/4'' 3/8'' 1/2''

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
