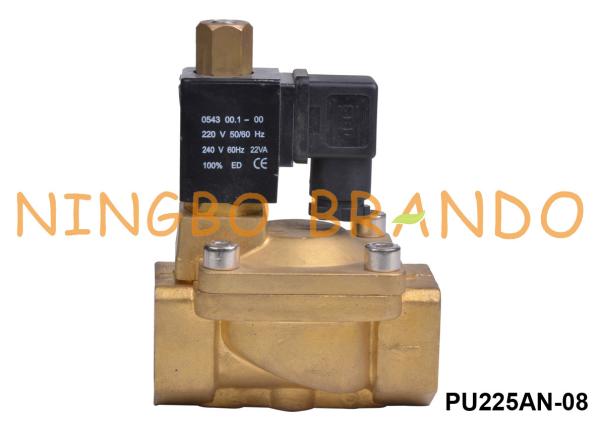

1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt
1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt
Specifications
Brand Name :
Brando
Model Number :
PU225AN-08
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability :
300000 sets per month
Delivery Time :
4-8 days
Packaging Details :
Inner Box, Carton, Pallet
Port Size :
1''
Orifice Size :
25mm
Function :
2 Way, Normally Open
Operation :
Diaphragm Pilot Operated
Body Material :
Brass
Seal Material :
NBR
Voltages :
24VDC, 110VAC, 220VAC
Working Pressure Range :
0.05 to 1 MPa
Description

1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt

Shako type PU225A series solenoid valve features:


1. Port thread 3/8, 1/2, 3/4, 1, 11/4, 11/2, 2" BSP/NPT or Flange (F) JIS10K, (F3) ANSI150Lb, (F4) PN16.
2. Sealing NBR, EPDM or Viton.
3. 0.5 to 10 bar differential, 15 bar maximum working.
4. PU225A 2/2 normally closed, PU225AN 2/2 normally open.
5. Pilot acting for low starting pressure
6. Large flow rate and high working pressure.
7. Quick response.
8. Stainless steel stem provides exceptional durability.
9. Most voltages available from 12v, 24volt, 48volt, 110volt, 230volt and 380 volt AC or DC, optional ATEX coil.
10. Suitable media NBR - air, water, neutral gases and mineral oils - Viton fuel oil, gasoline, hi-test gasoline and diesel fuels - EPDM hot water and liquid detergents.

Main Dimension of PU225A series Solenoid Valve:

1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt

PU225A Series
A
B
C
R
PU225A-03
66.5
106.5
48
3/8''
PU225A-04
66.5
106.5
48
1/2''
PU225A-06
96
126
70
3/4''
PU225A-08
96
126
70
1''
PU225A-12
131
145.5
96
1 1/4''
PU225A-14
131
145.5
96
1 1/2''
PU225A-20
160
160
112
2''

Technical Data of PU225A series Solenoid Valve:

Model
PU225A-03
PU225A-04
PU225A-06
PU225A-08
PU225A-12
PU225A-14
PU225A-20
PU225AN-03
PU225AN-04
PU225AN-06
PU225AN-08
PU225AN-12
PU225AN-14
PU225AN-20
Orifice Size
13mm
25mm
38mm
50mm
Port Size
3/8''
1/2''
3/4''
1'
1 1/4''
1 1/4''
2''
Medium
Water, Light Oil, Compressed Air
Action
Diaphragm Pilot Operated
NC/NO
2 Way, Normally Closed, Normally Open
Body Material
Brass
Seal Material
NBR (Standard); EPDM, FKM, Si (Optional)
Pressure
Range
0.05 to 1 MPa
Temperature Range
-5 to +80℃ (NBR), -5 to +150℃ (EPDM, FKM)
Voltages
24VDC, 110VAC, 220VAC, other voltage is optional

Ordering Code of PU225A series Solenoid Valve:

1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt


Brando Solenoid Valve Factory Production Video:

More Shako Type Solenoid Valves for you to choose:

1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt 1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt
PU220A Series PU225A Series
1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt 1'' Brass Solenoid Valve 2 Way Normally Open 24 110 220 Volt
SPU225A Series PU225S Series

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
