VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V
VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V
Specifications
Brand Name :
Brando
Model Number :
VF3130
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Individual box, Carton, Pallet
Valve Type :
5 Way 2 Position
Port Size :
In=Out=1/4'', Exhaust=1/8''
Pressure Range :
0.15 to 0.8MPa
Max Pressure Resistance :
1.2 MPa
Body Material :
Aluminum Alloy
Wiring Form :
Lead Wire or DIN43650 Connector
Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V

Pneumatic valve is where air or an inert gas is the pneumatic drive force. These type of pneumatic valves control or manage the source air within an automated system. While frequently referred to as pneumatic valves, they can be actuated (operated) by manually, by pneumatic actuation (Air Pilot Valve), by solenoid actuation (Pneumatic Solenoid Valve), or by motorized actuation. Ultimately, they all serve the same purpose: they modulate or control the source air for an automated system.

Technial Data of VF & VZ Series Pneumatic Solenoid Valves:

Model
VF3130
VF33(4/5)30
VF5120
VF53(4/5)50
VZ5120
VZ53(4/5)50
VF3230
VF5220
VZ5220
Valve Type
5/2 way
5/3 way
5/2 way
5/3 way
5/2 way
5/3 way
Orifice Size
16mm²
(Cv=0.89)
12mm²
(Cv=0.67)
25mm²
(Cv=1.4)
18mm²
(Cv=1)
12mm²
(Cv=0.67)
9mm² (Cv=0.50)
Fluid
Air (to be filtered by 40 μm filter element)
Operating Pressure
0.15 to 0.8 MPa
Proof Pressure
1.2 MPa
Body
Material
Aluminum Alloy
Max
Frequency
5 cycle / sec
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Wire Form
Lead Wire or DIN43650 Connector

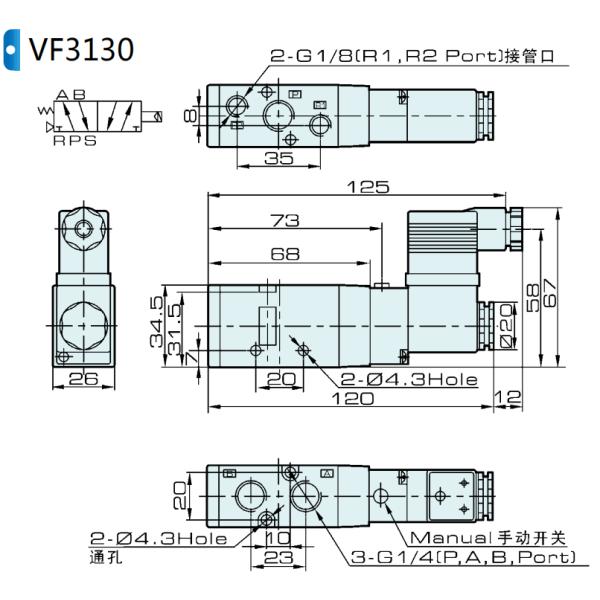

Dimension of VF3130 Pneumatic Solenoid Valve:

VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V

Production Video of Pneumatic Solenoid Valve:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Namur Solenoid Valves Air Pilot Valves Pneumatic Cylinders Silencers and Fittings
VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V VF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220VVF3130 SMC Type Pneumatic Solenoid Valve 5 Way 2 Position 24V 220V

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
