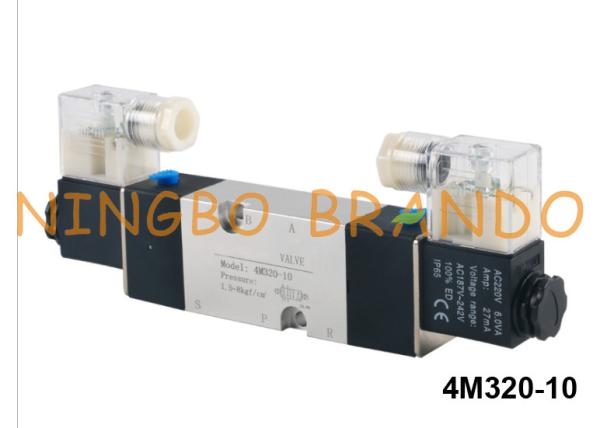

4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way
4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way
Specifications
Brand Name :
Brando
Model Number :
4M320-10
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Individual box, Carton, Pallet
Valve Type :
5 Way 2 Position
Port Size :
In=3/8'', Out=1/4''
Pressure Range :
0.15 to 0.8 MPa
Max Pressure Resistance :
1.2 MPa
Body Material :
Aluminum Alloy
Max Frequency :
4 Cycle/ Second
Acting :
Internal Pilot
Temperature Range :
-20 to +70℃
Fluid :
Air (to be filtered by 40μm filter element)
Description

4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way

NAMUR valves can be used in a variety of pneumatic and hydraulic systems to control actuators, larger industrial valves or fluid power motors. They come in a range of sizes, including compact in-line versions which can be used individually or in a manifold. These provide high flow rates for their small size. The standard interfaces of NAMUR valves and direct mounting make them simpler and faster to install than integrated pneumatic solenoids, and therefore help to reduce installation costs. There is also less damage to pipelines, and more room for installers to refit the other components.


Technical Data of 4M Series Namur Solenoid Valve:

Model No

4M110-M5

4M120-M5

4M110-06

4M120-06

4M210-06

4M220-06

4M210-08

4M220-08

4M310-08

4M320-08

4M310-10

4M320-10
Fluid Air (to be filtered by 40 μm filter element)
Port Size In=Out=M5 In=Out=1/8'' In=Out=1/8'' In=1/4'', Out=1/8'' In=Out=1/4'' In=3/8'', Out=1/4''
Orifice Size

5.5mm²

(Cv=0.31)

12.0mm²

(Cv=0.67)

14.0mm²

(Cv=0.78)

16.0mm²

(Cv=0.89)

25.0mm²

(Cv=1.40)

30.0mm²

(Cv=1.67)
Valve Type 5 Way 2 Position
Operating Pressure 0.15 to 0.8MPa (21 to 114 PSI)
Proof Pressure 1.5MPa (215PSI)
Temperature (℃) -20 to +70
Body Material Aluminum Alloy
Max. Frequency 5 Cycle / Second 4 Cycle / Second
Coil Voltages 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Protection Class IP65
Activating Time 0.05 second and below


Dimension of 4A320-10 Namur Solenoid Valve:

4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way


Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Air Pilot Valve FRL Unit Pneumatic Cylinders Silencers and Fittings
4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way 4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way 4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way 4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way4M320-10 Airtac Type Solenoid Pneumatic Valve Namur 5/2 Way

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
