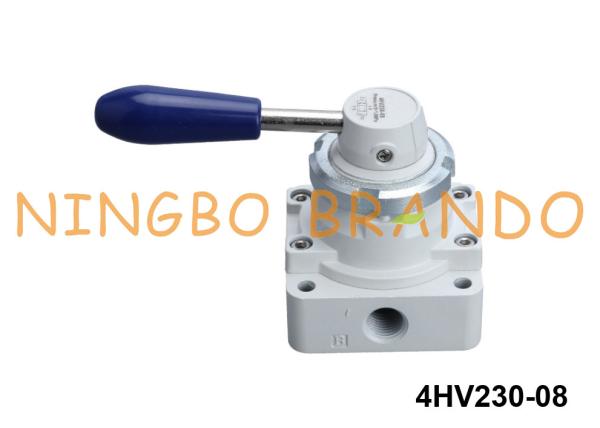

4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic
4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic
Specifications
Brand Name :
Brando
Model Number :
4HV230-08
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Individual box, Carton, Pallet
Fluid :
Air (to be filtered by 40μm filter element)
Operation :
Manual control direct acting type
Port Size :
1/4''
Valve Type :
4 Way 3 Position
Pressure Range :
0 to 1.0 MPa
Max Pressure Resistance :
1.5 MPa
Temperature Range :
-20 to +70℃
Body Material :
Aluminum Alloy
Description

4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic

4HV series are compact rotary hand valves with a variety of flow rates. Suitable for applications that require manual directional control. These valves are easy to operate while offering a high tolerance to contamination.

Features:
1. Made of high quality aluminium alloy, durable to use.
2. There is 3 position 4 way hand lever valve, three central function for your choice.
3. It is easy to reverse rotation, comfortable handle and accurate positioning.
4. The effective circulation area of this product is large.
5. Widely in packaging, food, textile, plastic machinery, medical and other industries.


Technical Data of 4HV series Hand Lever Valve:

Model 4HV2□□-06(L) 4HV2□□-08(L) 4HV3□□-08(L) 4HV3□□-10(L) 4HV4□□-15(L) 4HV4□□-20(L)
Fluid Air (to be filtered by 40μm filter element)
Operating Manual control direct acting type
Port Size

1/8''

 1/4''

1/4''

 3/8''

1/2''

 3/4''
Orifice Size (Cv)

14.0mm²

(Cv=0.78)

16.0mm²

(Cv=0.89)

30.0mm²

(Cv=1.67)

33.0mm²

(Cv=1.83)

88.0mm²

(Cv=4.89)

95.0mm²

(Cv=5.27)
Valve Type 4/2 way, 4/3 way
Pressure Range 0 to 1.0 MPa (0 to 145 psi)
Proof Pressure 1.5 MPa (215 psi)
Temperature -20 to +70℃
Body Material Aluminum Alloy
Operating Angle 90° (4/3 Way: 45°)


Ordering Code of 4HV series Hand Lever Valve:

4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic


Dimension of 4HV series Hand Lever Valve:

4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic


Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Namur Solenoid Valves FRL Unit Pneumatic Cylinders Silencers and Fittings
4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic 4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic 4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic4HV230-08 Airtac Type 4/3 Way Rotary Hand Lever Valve Pneumatic
