3'' CA76MM Goyen Type Dust Collector Pulse Jet Valve

Submerged pulse jet valve for pulse jet dust bag filter . This type of pulse valve using submerged in the air bag in the structure , compared with other structure, reducing the channel resistance , reducing the supply pressure blowing spray , which can be applied in low pressure situations , and can reduce energy consumption and extend the membrane life.

Product Structure:

Housing: valve housing and cover are made ​​of die cast aluminum alloy , good appearance, high intensity , to ensure that no air leaks . Pressure flow channel valve design is reasonable, the valve opening and closing and basically located in the air bag , truly a "submerged" by the air bag directly into the air injection tube , which really achieve the low pressure , high volume injection requirements.

Solenoid valve: a large displacement of the diaphragm in a short time can be 0.08 to 0.1 seconds to ensure the opening degree of the valve . Optional imported materials developed synthetic rubber diaphragm when applied to a cold climate. Operating temperature between -40 ℃ to 55 ℃, and ensures the longest working life.

Technical data of Full Immerse Pulse Jet Valve:

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

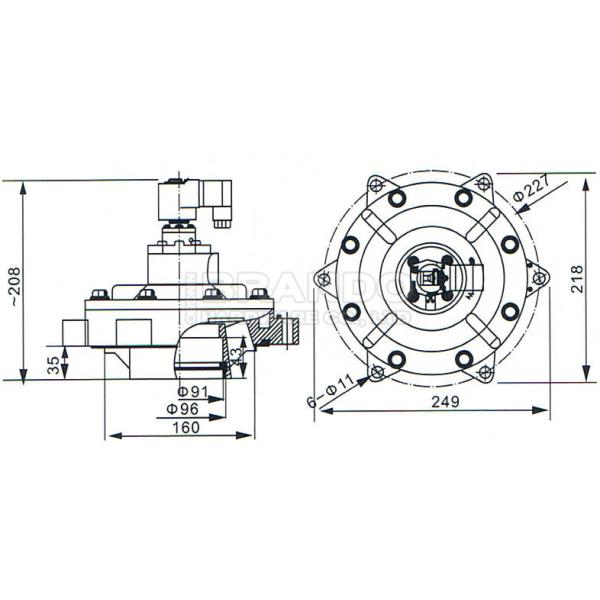

Main Dimension of CA76MM Pulse Jet Valve:

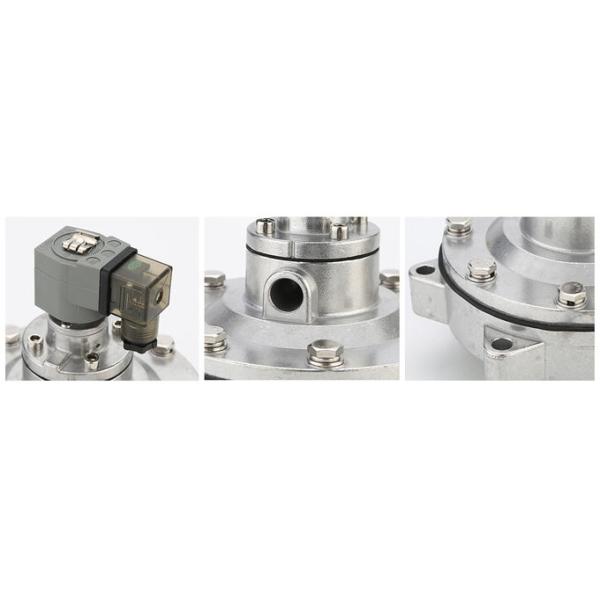

Detail images of Goyen Type Pulse Jet Valves:

Video of CA76MM Goyen Type Pulse Jet Valve:

More Goyen Type Pulse Valve For You to Choose:

Threaded Type Immersion Type Dresser Nut Type Flanged Type

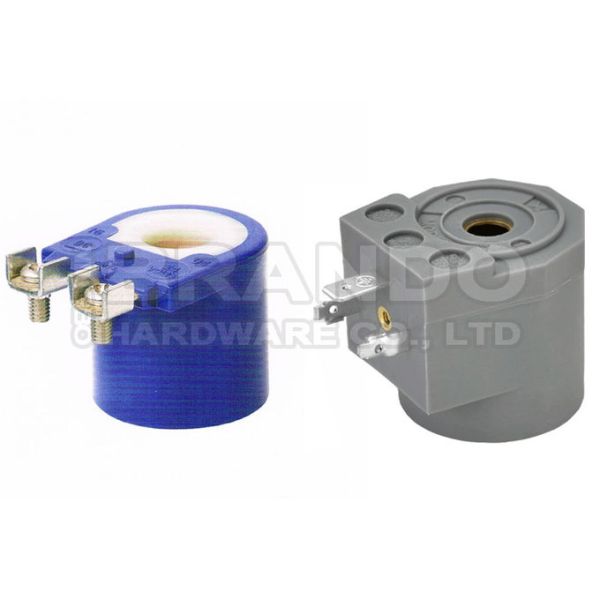

RCA Series Solenoid Coil Armature Assembly Pulse Controller
