JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve
JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve
Specifications
Brand Name :
Brando
Model Number :
BADV01
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
7 working days
Material :
Brass
Pressure :
16bar (232psi)
Strainers :
With
Media :
air, neutral gas, water, oil ≤20CST
Port Size :
1/4", 3/8", 1/2"
Structure :
Electric
Voltage :
24--230V AC/DC 50/60Hz
Connection :
G Threaded
Operation :
Direct-acting
Type :
OPTIMUM
Description

JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve

The OPTIMUM(split) timer controlled condensate drain is a direct acting solenoid valve With Strainers. widely used in air compressor.coolor. separator,dryer,filter,gas tank etcs compressed air system components ,discharge time and the internal time can be adjusted.

Timer Drain Valves automatically eliminate condensate that has collected up in compressed air lines. These timers can be used on a wide variety of our 2-way solenoid Normally Closed valves as well as 3-way valves for piloting our larger Angle Body control valve, using DIN 43650A / ISO 440 coils. Timers are available to control both the duration and frequency of the valves energized period during which condensate is evacuated.

Applications:
• Air Compressors
• Air Drying Systems
• Refrigerated Dryer Systems

Technical Data of Water Drain Valve:

Model
BADV01
BADV02
Port Size
1/8'', 1/4'', 3/8'', 1/2''
Valve Type
OPTIMUM
COMBO
Operation Type
2/2 Way, Direct Acting
Power Connection
DIN 43650 FormA
Voltages
24V DC, 110V AC, 220V AC (50/60Hz)
Body Material
Brass, Stainless Steel (For High Pressure)
Seal Material
FKM
Insulation Class
H
Protection Class
NEMA4(IP65)
Timer Cycle Range (ON / OFF)
0.5 - 10seconds / 0.5 - 45 minutes
Timer Cycle Indicatin
Bright LED illumination
Test Feature
Yes
Pressure Range
0 - 230 PSI
Medium Temperature
34 - 131.F

DIMENSION :

Dimension of OPTIMUM Type BADV01 Water Drain Valve:

JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve

Dimension of COMBO Type BADV02 Water Drain Valve:

JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve

More Details About Auto Drain Valve:

JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve

BAPC213037016

Solenoid Armture

 BB13241002
0200 Solenoid Coil		 STRAINERS

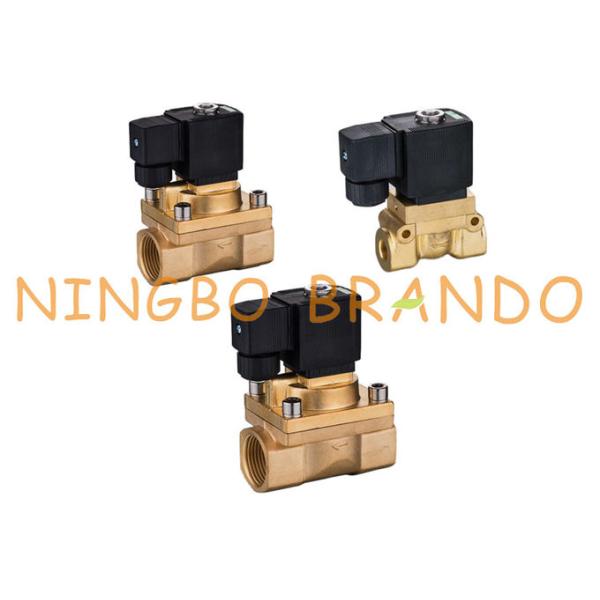

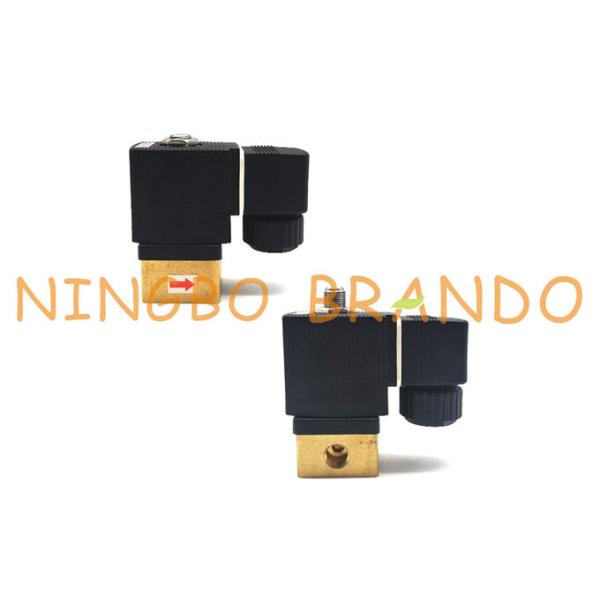

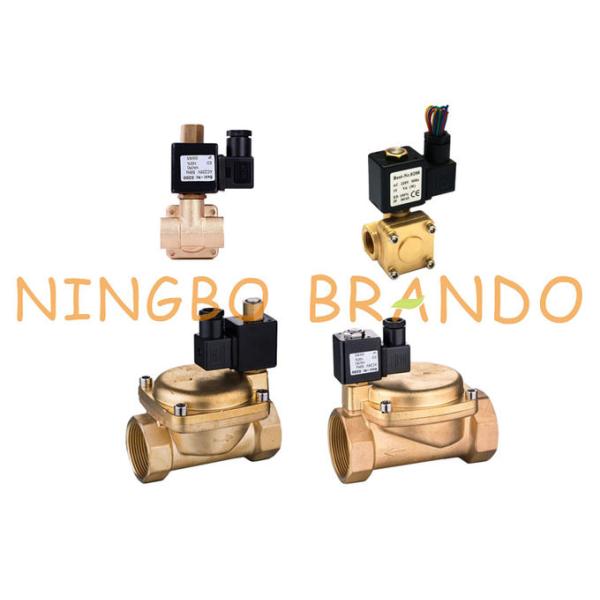

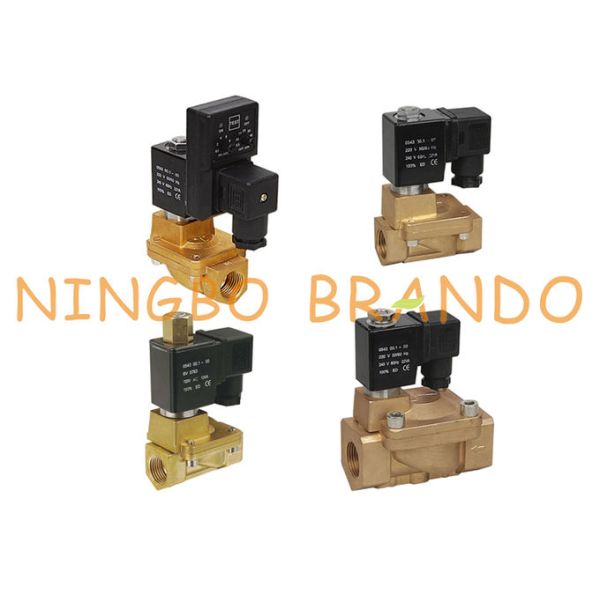

More Air Compressor Solenoid Valve for you to choose:

JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain ValveJORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve

JORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain ValveJORC Type OPTIMUM Digital Timer Air Compressor Automatic Drain Valve

Features of OPTMUM Water Drain Valve for Air Compressor:

1. Private labelling possible, offering you product personalisation.
2. Does not air-lock during operation.
3. Suitable for any type of compressed air systems.
4. Also available in Stainless steel and High pressure.
5. Accurate time cycles.
6. Large (4.5 mm) valve orifice.
7. Voltage range 12 – 380VAC/DC.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing


Welcome to your any question and inquiry!
