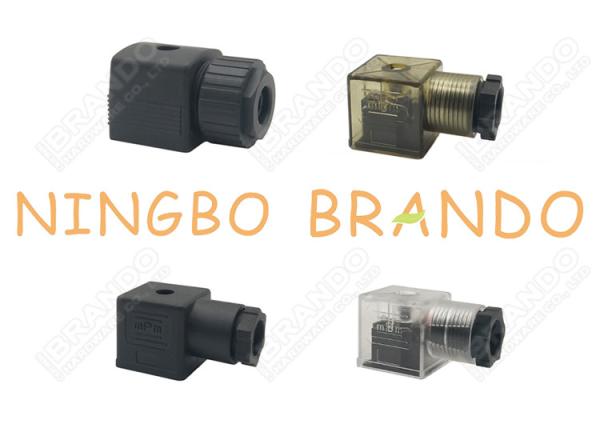

18mm MPM Brown Nylon DIN43650A Solenoid Coil Connector For Pneumatic Electrical Industies

Solenoid valve type A solenoid valve plug connector-2+PE/3+PE; pin spacing is 18mm, round or square base
B-type solenoid valve plug connector-2+PE; there are two specifications of pin spacing 9mm or 11mm
C-type solenoid valve plug connector-2+PE/3+PE; pin spacing is 8mm or 9.4mm

ELECTRICAL
Max. Current: 16.0A
Contact Resistance: ≤ 15 miliohms max.
Insulation Resistance: 100 Megohms min.
Max. Conductor: 1.50mm² / 16AWG

MECHANICAL
Insertion and Withdrawal Force: 2+GND ≤ 60N

Certification
UL recognized cURus marked, file E218123 (product available upon request or specific part number)

PHYSICAL
Durability: min. 50 cycles
Contact Area: Silver
Solder Tail Area: Silver
Operating Temperature with:
Nitrile Rubber (NBR) Gasket: -40° to +90°C
Silicone Gasket: -40° to +125°C
Cable Diameter Range: 4.00-9.00mm
Live Contact Distance: 18.00mm

ENVIROMENTAL
IP67 Sealing Protection

Dimension of Soelnoid Valve Connector:

DIN 43650A Connector:

Dimension	DIN Type	DIN 43650 Form A
	Distance	18mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x28
	Nomical Current	10A
	Contact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN43650B Connector:

Dimension	DIN Type	DIN 43650 Form B
	Distance	11mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Srew	M3x30
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN43650C Connector:

Dimension	DIN Type	DIN 43650 Form C
	Distance	9.4mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x25
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

More Solenoid Connectors:

DIN43650A	DIN43650B	DIN43650C

Product Features:

The connectors is used extensively to provide electrical connection in a wide range of applications.
The most common application for connectors is in conjunction with pneumatic, hydraulic or electromagnetic devices, including solenoid valves.
Other applications include, for example, pressure transducers, proximity switches, level sensors, limit switches and low energy motors.
BRANDO company manufactures an extensive and comprehensive range of connectors with standard options including for example LED illuminated devices as well as VDR, diodes or transil diodes (with or without illuminated device) to offer protection against over voltage peaks.
Our connectors offer protection from dust and water (IP65 or IP67 on specific request) when correctly installed with screw and gasket which are supplied together with the connector.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
