PMF Bulkhead Female Straight Pneumatic Push-In Fittings 1/8'' 1/4'' 3/8'' 1/2''
PMF Bulkhead Female Straight Pneumatic Push-In Fittings 1/8'' 1/4'' 3/8'' 1/2''
Specifications
Brand Name :
BRANDO
Model Number :
PMF
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
5 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability :
10000000pcs per month
Delivery Time :
1 week after payment
Packaging Details :
PVC bag, then inner box, then carton, then pallet
Product Name :
Pneumatic Hose Fittings
Type :
Bulkhead Female Straight
Tube OD (Inch) :
1/8", 1/4", 3/8", 1/2"
Tube OD (Mertric) :
4mm, 6mm, 8mm, 10mm, 12mm
Color :
Blue, Black, Gray
Material :
Plastic
Working Pressure Range :
0 To 0.8MPa
Working Temperature Range :
0 To +60℃
Description

PMF Bulkhead Female Straight Pneumatic Push-In Fittings 1/8'' 1/4'' 3/8'' 1/2''

Push to connect pneumatic straight connection fittings enable quick tubing connection and disconnection. These pneumatic components feature stainless steel gripping collets and internal O-rings to ensure a leakproof proper fit. Additionally, the quick-connect collet prevents the tube from being released through a connection that can be released through the push of a button.
Most popular straight push-in fittings with male or female threads. Fittings have hexagonal body allowing tightening with wrench, additionally our fittings can be screwed with tool, which is especially convenient where there is limited access to installation place. In this category you can find push-in fittings with threads in following sizes: M5, 1/8'', 1/4'', 3/8'' and 1/2'' for hoses with diameter from 4 mm to 16 mm.

Technical data of Pneumatic Hose Fittings:

Material
Plastic / Brass
Threaded Connection
BSP
BSPP
Metric Thread
NPT
Working Pressure
0 to 0.8MPa
Connecting Tube
PA
PU
Connecting Diameter Tube
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm (Outer Diameter)
Medium
Compressed Air
Working Temperature
~60℃

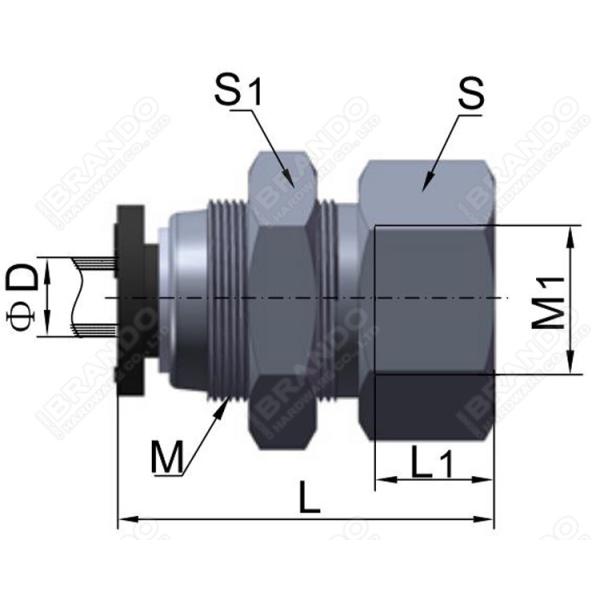

Specifications of PMF Bulkhead Female Straight Pneumatic Hose Fittings:

PMF Bulkhead Female Straight Pneumatic Push-In Fittings 1/8'' 1/4'' 3/8'' 1/2''

Model No
M1
M
φD
L1
L
S
S1
PMF4
M5x0.8
M12X1
4
6
23
14
16
M6X1
6
23
14
G1/8''
7
24
14
G1/4''
8
25
14
G3/8''
9
26
19
G1/2''
10
27
24
PMF6
M5X0.8
M14X1
6
6
24
16
17
M6X1
6
24
16
G1/8''
7
25
16
G1/4''
8
26
16
G3/8''
9
27
19
G1/2''
10
28
24
PMF8
G1/8''
M16X1
8
7
27
17
19
G1/4''
8
28
17
G3/8''
9
29
19
G1/2''
10
30
24
PMF10
G1/8''
M18X1
10
7
29
19
21
G1/4''
8
30
19
G3/8''
9
31
19
G1/2''
10
32
24
PMF12
G1/8''
M20X1
12
7
31
22
24
G1/4''
8
32
22
G3/8''
9
33
22
G1/2''
10
34
24


List of All Push To Connect Pneumatic Hose Fittings:

PMF Bulkhead Female Straight Pneumatic Push-In Fittings 1/8'' 1/4'' 3/8'' 1/2''

Choosing the Right Fittings for Your Pneumatic System:

Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
