PLL Extended Male Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''
PLL Extended Male Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''
Specifications
Brand Name :
BRANDO
Model Number :
PLL
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
5 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability :
10000000pcs per month
Delivery Time :
1 week after payment
Packaging Details :
PVC bag, then inner box, then carton, then pallet
Product Name :
Pneumatic Hose Fittings
Type :
Extended Male Elbow
Tube OD (Inch) :
1/8", 1/4", 3/8", 1/2"
Tube OD (Mertric) :
4mm, 6mm, 8mm, 10mm, 12mm
Color :
Blue, Black, Gray
Material :
Plastic, Brass
Working Pressure Range :
0 To 0.8MPa
Working Temperature Range :
0 To +60℃
Description

PLL Extended Male Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

Elbow fittings connect hoses at 90 or 45-degrees to change the direction of air flow. They have a male or female threaded secondary port. Normal elbows have arms that are the same length, whereas long elbows will have one longer arm.

Pneumatic fittings are predominantly made from three different types of material; plastic, stainless steel and polymer. Pneumatic fittings are used to connect lengths of tubing, pipes and hose in pressurised pneumatic systems. They typically have tighter seals and lower pressure requirements compared to hydraulic fittings and can be commonly found in robotics within production lines as well as products we use within our daily lives such as vacuums and tyre pressure gauges.

Technical data of Pneumatic Hose Fittings:

Material
Plastic / Brass
Threaded Connection
BSP
BSPP
Metric Thread
NPT
Working Pressure
0 to 0.8MPa
Connecting Tube
PA
PU
Connecting Diameter Tube
3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm (Outer Diameter)
Medium
Compressed Air
Working Temperature
~60℃

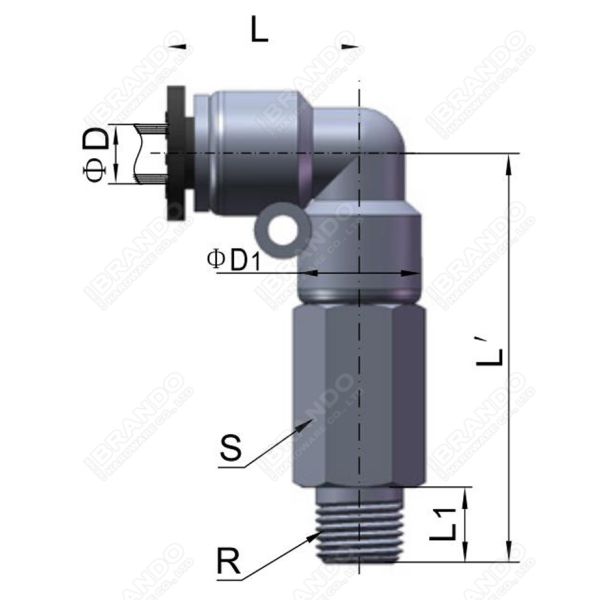

Specifications of PLL Extended Male Elbow Pneumatic Hose Fittings:

PLL Extended Male Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

Model No
R
φD
φD1
L1
L
L'
S
PLL4
M5X0.8
4
11
6
19
38
10
M6X1
6
38
10
R1/8''
8
30
12
R1/4''
9
41
14
R3/8''
10
43
17
R1/2''
11
44
21
PLL6
M5X0.8
6
13
6
20
41
12
M6X1
6
41
12
R1/8''
8
43
12
R1/4''
9
44
14
R3/8''
10
46
17
R1/2''
11
47
21
PLL8
R1/8''
8
14
8
23
47
14
R1/4''
9
48
14
R3/8''
10
50
17
R1/2''
11
51
21
PLL10
R1/8''
10
18
8
27
56
17
R1/4''
9
57
17
R3/8''
10
58
17
R1/2''
11
59
21
PLL12
R1/8''
12
21
8
30
56
19
R1/4''
9
57
19
R3/8''
10
57
19
R1/2''
11
60
21


List of All Push To Connect Pneumatic Hose Fittings:

PLL Extended Male Elbow Pneumatic Hose Fittings 1/8'' 1/4'' 3/8'' 1/2''

Choosing the Right Fittings for Your Pneumatic System:

Fittings help control the force and directional flow of compressed gas or air used in pneumatic systems. One of the first considerations in choosing a connector is the type of vessel that you will be connecting to such as the flexibility of the hose or tube, as well as the inner diameter (ID) and outer diameter (OD) of the vessel to ensure an adequate seal and secure connection. Fitting material choice for your pneumatic connector is also important, including gas compatibility or resistance to heat or corrosion.

Other considerations in choosing the right pneumatic system connector include:
1. Type of connection and the function it performs
2. Operational pressure of the pneumatic system
3. Operating temperature range
4. P.S.I. requirements for your application
5. Amount of vibration produced by the pneumatic system
6. Thread type of the receiving fitting

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
