4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC
4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC
Specifications
Brand Name :
Brando
Model Number :
4V220-06
Certification :
CE
Place of Origin :
China
MOQ :
200 PCS
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Individual box, Carton, Pallet
Type :
5/2 Way, Double Solenoid
Port Size :
In=Out=Exhaust=1/8''
Pressure Range :
0.15 to 0.8MPa (21 to 114PSI)
Max Pressure Resistance :
1.5MPa (215PSI)
Body Material :
Aluminum Alloy
Max. Frequency :
5 Cycle / Second
Description

4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC

5/2 way pneumatic solenoid valves are used for controlling double acting pneumatic cylinders. They have 2 output ports, commonly designated A & B or 2 & 4. They have one inlet port, designated P or 1, and two exhaust ports, designated R & S or 3 & 5.

In one position, inlet port P or 1 is connected to output port A or 2, while the port B or 4 is exhausted through exhaust port S or 4. This means the pneumatic cylinder is extended.

In the other position of the valve, P or 1 is connected to port B or 4, and port A or 2 is connected to the exhaust port R or 3. This means the cylinder is retracted.

The valve is shifted from one position to the other by various means; for example, a couple of solenoids or pilot connections. Many a time, one default position is achieved by means of a spring and the other through a solenoids or a pilot connection.


Data of 4V200 Series Pneumatic Solenoid Valves:

Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid
Air (to be filtered by 40 μ m filter element)
Acting
Internal Pilot
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'', Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 way 2 position
5 way 3 position
5 way 2 position
5 way 3 position
Working Pressure
0.15~0.8MPa (21~114psi)
Max. Pressure Resistance
1.5MPa (215psi)
Temperature
5~50 ℃
Material of Body
Aluminum Alloy
Max. frequency
5 cycle/sec

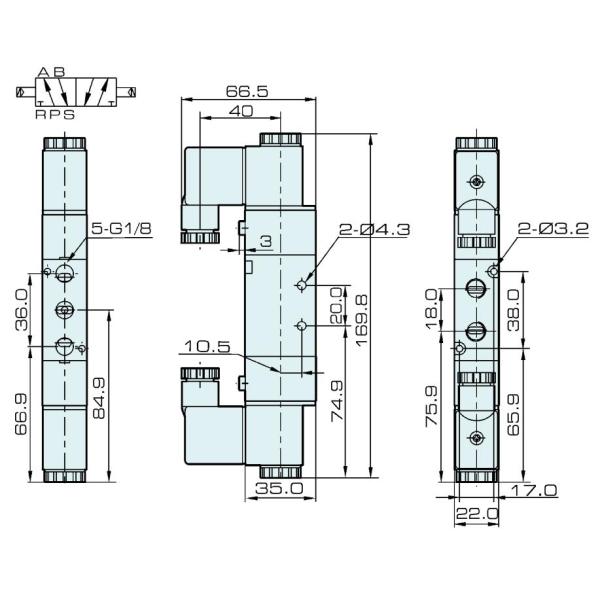

Dimension of 4V220-06 Pneumatic Solenoid Valve:

4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC

Product Video of 4V220-06 Pneumatic Solenoid Valve:


Production Video of Pneumatic Solenoid Valve:

More Pneumatic Products for you to choose:

4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC4V220-06 Airtac Type Pneumatic Solenoid Valve 4V220-06-DC24V 24V DC

Solenoid Operator Manifold Silencer Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
