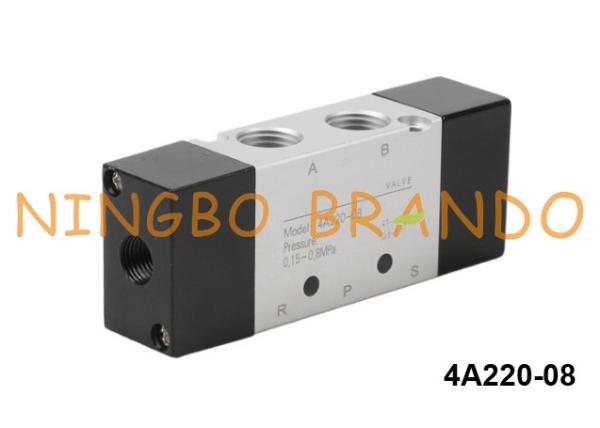

4A220-08 Airtac Type Double Air Pilot Pneumatic Valve 5 Way 2 Position
4A220-08 Airtac Type Double Air Pilot Pneumatic Valve 5 Way 2 Position
Specifications
Brand Name :
Brando
Model Number :
4A220-08
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Individual box, Carton, Pallet
Valve Type :
5 Way 2 Position
Port Size :
In=Out=1/4'', Exhaust=1/8''
Pressure Range :
0.15 to 0.8MPa (21 to 114PSI)
Max Pressure Resistance :
1.5MPa (215PSI)
Body Material :
Aluminum Alloy
4A200 Series :
4A210-06, 4A210-08, 4A220-06, 4A220-08, 4A230C-06, 4A230C-08, 4A230E-06, 4A230E-08, 4A230P-06, 4A230P-08
Max Frequency :
5 cycle/sec
Acting :
Exterior Control
Description

4A220-08 Airtac Type Double Air Pilot Pneumatic Valve 5 Way 2 Position

In the pneumatic world, valves are the equivalent of relays controlling the flow of electricity in automation systems. Instead of distributing electric power to motors, drives, and other devices, pneumatic valves distribute air to cylinders, actuators, and nozzles.

Pneumatic valves, also called directional control valves, are activated in a variety of ways including manual, solenoid-operated, and air-piloted. In their simplest form, 2-way and 3-way valves can be normally open (NO) or normally closed (NC) — terms that refer to their normal states without power applied. Another very common valve is a 4-way valve, which switches supply and exhaust between two outlet ports.


Data of 4A200 Series Pneumatic Control Valves:

Model
4A210-06
4A220-06
4A230C-06
4A230E-06
4A230P-06
4A210-08
4A220-08
4A230C-08
4A230E-08
4A230P-08
Fluid
Air (to be filtered by 40 μ m filter element)
Acting
Exterior Control
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'', Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 way 2 position
5 way 3 position
5 way 2 position
5 way 3 position
Working Pressure
0.15~0.8MPa (21~114psi)
Max. Pressure Resistance
1.5MPa (215psi)
Temperature
5~50 ℃
Material of Body
Aluminum Alloy
Max. frequency
5 cycle/sec

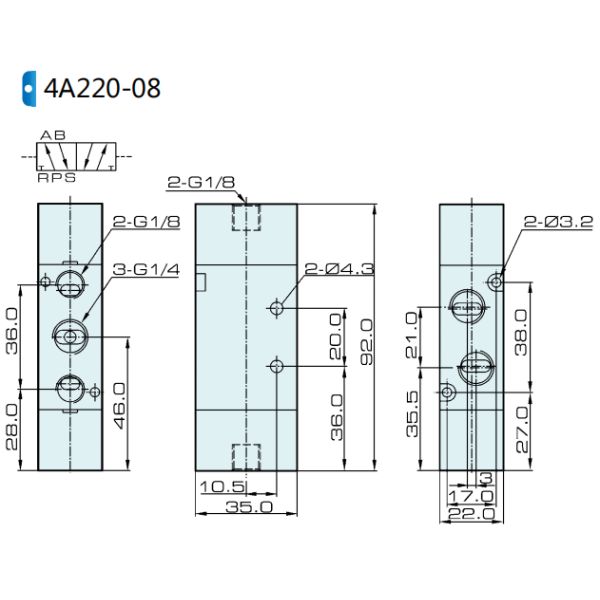

Dimension of 4A220-08 Pneumatic Air Pilot Valve:

4A220-08 Airtac Type Double Air Pilot Pneumatic Valve 5 Way 2 Position


Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

4A220-08 Airtac Type Double Air Pilot Pneumatic Valve 5 Way 2 Position4A220-08 Airtac Type Double Air Pilot Pneumatic Valve 5 Way 2 Position4A220-08 Airtac Type Double Air Pilot Pneumatic Valve 5 Way 2 Position

Manifold Silencer Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
