4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position
4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position
Specifications
Brand Name :
Brando
Model Number :
4M220-08
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Individual box, Carton, Pallet
Valve Type :
5 Way 2 Position
Port Size :
In=Out=1/4''
Pressure Range :
0.15 to 0.8MPa (21 to 114PSI)
Max Pressure Resistance :
1.5MPa (215PSI)
Body Material :
Aluminum Alloy
Max. Frequency :
5 Cycle / Second
Voltages :
220V AC, 110V AC, 24V AC, 24V DC, 12V DC
Description

4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position

Combination 3 way and 4 way, 3/2 - 5/2 solenoid valve that directly mounts to all NAMUR interface actuators. Standard features include a manual override and safety position by mechanical spring. The solenoid pilots both spring return and double acting actuators. It is available in standard, explosion proof, or Atex.

NAMUR interface, the NAMUR soenoid valve has anodized aluminum body, stainless steel spool, and brass internal parts. Spring return allows fail-safe operation in case of power loss, and screened exhaust nut protects valve function during outdoor use. Multiple solenoid valves can be placed together on a valve manifold.

Data of NAMUR Pneumatic Solenoid Valves:

Model No

4M110-M5

4M120-M5

4M110-06

4M120-06

4M210-06

4M220-06

4M210-08

4M220-08

4M310-08

4M320-08

4M310-10

4M320-10
Fluid Air (to be filtered by 40 μm filter element)
Port Size In=Out=M5 In=Out=1/8'' In=Out=1/8'' In=Out=1/4'' In=Out=1/4'' In=Out=3/8''
Orifice Size

5.5mm²

(Cv=0.31)

12.0mm²

(Cv=0.67)

14.0mm²

(Cv=0.78)

16.0mm²

(Cv=0.89)

25.0mm²

(Cv=1.40)

30.0mm²

(Cv=1.67)
Valve Type 5 Way 2 Position
Operating Pressure 0.15 to 0.8MPa (21 to 114 PSI)
Proof Pressure 1.5MPa (215PSI)
Temperature (℃) -20 to +70
Body Material Aluminum Alloy
Max. Frequency 5 Cycle / Second 4 Cycle / Second
Coil Voltages 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Protection Class IP65
Activating Time 0.05 second and below

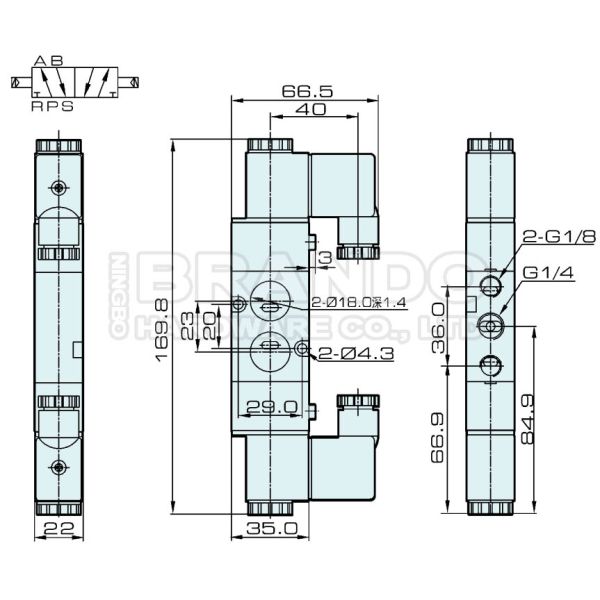

Dimension of 4M220-08 Namur Solenoid Valve:

4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position

Production Video of Pneumatic Solenoid Valve:

More Pneumatic Products for you to choose:

4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position

2/2 Way 3/2 Way 5/2 Way, Single Solenoid 5/2 Way, Double Solenoid 5/3 Way, Double Solenoid

4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position4M220-08 Airtac Type Namur Solenoid Valve 5 Way 2 Position

Solenoid Operator Manifold Silencer Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
