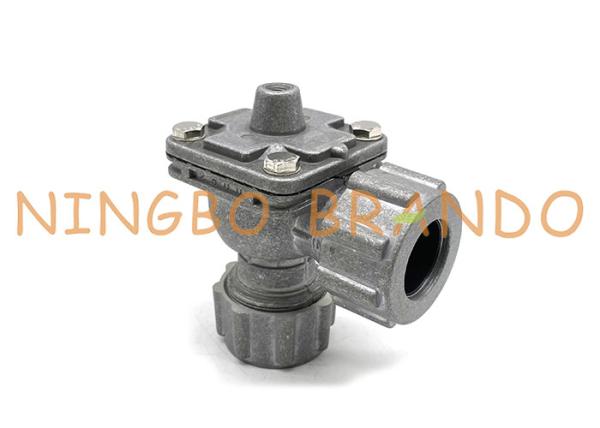

RCA25DD RCA25DD010 RCA25DD000 1'' Inch Remote Pilot Dresser Nut Pulse Jet Valve
RCA25DD RCA25DD010 RCA25DD000 1'' Inch Remote Pilot Dresser Nut Pulse Jet Valve
Specifications
Brand Name :
Brando
Model Number :
RCA25DD
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
inner boxes,cartons,pallets
Type :
Dresser Nut Diaphragm Valve
Power :
Pneumatic
Media :
Air
Port Size :
1''Inch
Pilot or Remote :
Remote
Body Material :
Aluminum Alloy
Diaphragm Material :
NBR(Common), FKM(Available)
Number of Diaphragm :
1
Pressure :
0.1 to 0.8MPa
Temperature :
-25 to +80℃
Price :
Negotiation
Description

RCA25DD RCA25DD010 RCA25DD000 1'' Inch Remote Pilot Dresser Nut Pulse Jet Valve

Pulse Jet Valve in Dust Collector System:

The dust cleaning device of the bag filter is an important component device. According to the different cleaning methods, the bag filter can be divided into the following categories. The periodic operation of the machine is used to shock the filter bag to achieve the purpose of cleaning. This method can also be divided into two types, namely continuous shock and intermittent shock. These two types of choices According to the actual situation and the density of dust to choose; the use of compressed air instead of mechanical shock, the principle is the same as the principle of mechanical shock, but the way of shock is different; when the dust is deposited, you can choose pulse cleaning, release compression The moment of air will affect the atmospheric pressure of the surrounding air.

Technical Data of Goyen Pulse Jet Valve:

Model
CA20DD
CA25DD
CA45DD
Nominal Size
20
25
45
Port size
mm
20
25
40
in
3/4
1
1 1/2
Number of Diaphragms
1
1
2
Flow
Kv
12
20
44
Cv
14
23
51
Pressure (Psi)
5 to 125
5 to 125
5 to 125
Temperature℃
NBR
-40 to 82
-40 to 82
-40 to 82
FKM
-29 to 232
-29 to 232
-29 to 232


Main Dimension:

RCA25DD RCA25DD010 RCA25DD000 1'' Inch Remote Pilot Dresser Nut Pulse Jet Valve

CA RCA Series Pulse Jet Valve For Dust Collector System:

Thread Valve
1/2''
3/4''
1''
1.5''
1.5''
2''
2.5''
3''
CA15T
CA20T
CA25T
CA35T
(Single Diaphragm)
CA45T
(Double Diaphragm)
CA50T
CA62T
CA76T
Dresser Nut Valve
1''
1.5''
CA25DD
CA45DD
Flanged Valve
1.5'' Inlet
2'' Inlet
CA25FS
CA45FS
Immersion Valve
φ60 Outlet
φ75 Outlet
φ89 Outlet
φ86 Outlet
CA50MM
CA62MM
CA76MM
CA89MM
Remote Pilot Valve
1/8''
1''
1.5''
2''
RCA3D2
RCA25DD
RCA45T
RCA50T

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
