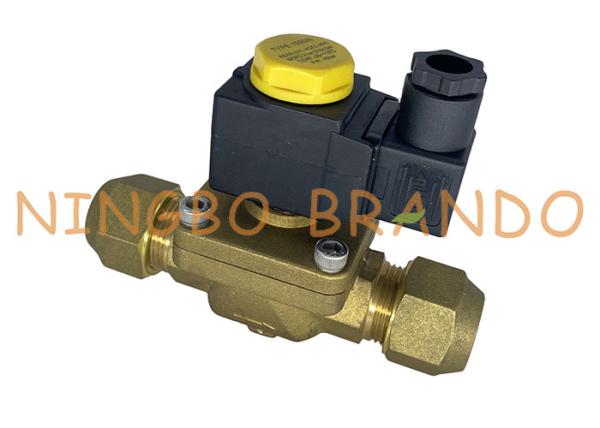

1090/6 3/4 Inch SAE Flare Brass Refrigeration Solenoid Valve
1090/6 3/4 Inch SAE Flare Brass Refrigeration Solenoid Valve
1090/6 3/4 Inch SAE Flare Brass Refrigeration Solenoid Valve
1090/6 3/4 Inch SAE Flare Brass Refrigeration Solenoid Valve
Specifications
Brand Name :
Brando
Model Number :
1090/6
Certification :
CE
Place of Origin :
China
MOQ :
50 PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs per month
Delivery Time :
7 working days
Packaging Details :
inner boxes,cartons,pallets
Screw connections :
3/4"SAE
Power :
Solenoid
Media :
Refrigerant
Structure :
Diaphragm Pilot Operated
Material :
Brass
Function :
Normally Closed
Voltages :
AC110V, AC220V, DC24V
Ambient temperature :
-35 - 105 °C
Application :
Refrigeration Parts
Refrigerants :
R125 R134a R152a R22 R404A R407A R407C
Description

1090/6 3/4 Inch SAE Flare Brass Refrigeration Solenoid Valve

Technical Data:

Operating Principles
Model Number
SAE Port
Seat size nominal Ø [mm]
Kv Factor
[m3/h]
PS
[bar]
TS[℃]
TA[℃]
min
max
min
max
Direct Acting
1020/2
1/4''
2, 5
0, 175
45
-35
+110
-35
+50
1020/3
3/8''
3
0, 23
Diaphragm Pilot Operated
1064/3
3/8''
6, 5
0, 80
45
-35
+105
-35
+50
1064/4
1/2''
1070/4
1/2''
12, 5
2, 20
1070/5
5/8''
2, 61
1090/5
5/8''
16, 5
3, 80
1090/6
3/4''
4, 80
Piston Pilot Operated
1034/3
3/8''
6, 5
1, 00
45
-35
+110
-35
+50
1034/4
1/2''
1040/4
1/2''
12, 5
2, 40
1040/5
5/8''
3, 00
1050/5
5/8''
16, 5
3, 80
1050/6
3/4''
4, 80

Dimension:

1090/6 3/4 Inch SAE Flare Brass Refrigeration Solenoid Valve

Replacement Castel Type Solenoid Coil:

1090/6 3/4 Inch SAE Flare Brass Refrigeration Solenoid Valve


Fruit storage cabinet Working Principle
The fresh-keeping cabinet rolling piston compressor is generally a vertical structure. The compressor is installed in the lower part of the fresh-keeping cabinet. The motor is in the upper part. The outer part of the whole cylinder is almost immersed in the lubricating oil. The cylindrical piston is installed in the cylinder and is placed on the eccentric shaft. Eccentric turn, eccentric axis. For the shaft to drive the piston in the cylinder along the cylinder wall surface of the cylinder wall has a through slot, the slot is equipped with a slider, the slider and the rotor fit in the slot sliding, under the action of the spring force and the rolling rotor outer wall surface The dynamic seal is formed by contact, and the crescent-shaped space between the rolling rotor and the cylinder wall is divided into a helium chamber and a compression chamber. During the process of rotating the eccentric shaft around the center of the cylinder, the helium chamber completes the intake process, and the compression chamber completes the compression. And the exhaust process.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
