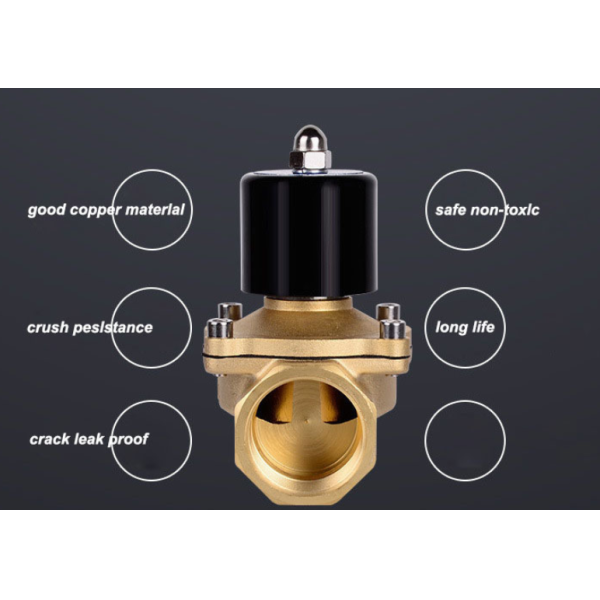

24V DC 3/8 Inch Brass Water Solenoid Valve 2W160-10 for Water Treatment

The solenoid valve itself is simple in structure and low in price, making it easier to install and maintain than other actuators such as regulator valves. What is more remarkable is that the composed automatic control system is much simpler and much cheaper. Because the solenoid valve is a switch signal control, and industrial computer connection is very convenient

. In today's computer popularity, the price of a substantial decline in the era, the advantages of solenoid valve is more obvious.

Action express, small power, light appearance. Solenoid valve response time can be as short as a few milliseconds, even the pilot solenoid valve can be controlled in a few tens of milliseconds. It is more sensitive than other automatic control valves because of its self - loop. Properly designed solenoid valve coil power dissipation

Very low consumption, is an energy saving product; Can also do only trigger action, automatically maintain the valve position, usually no power consumption. Solenoid valve small size, both save space, and light and beautiful.

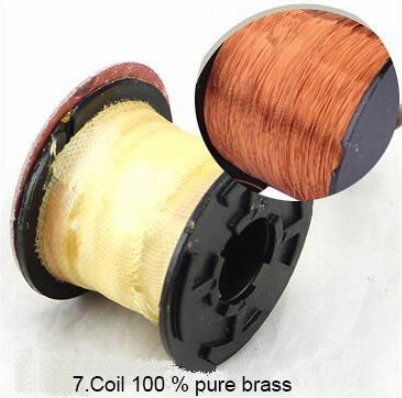

Solenoid Coil of 2W160-10

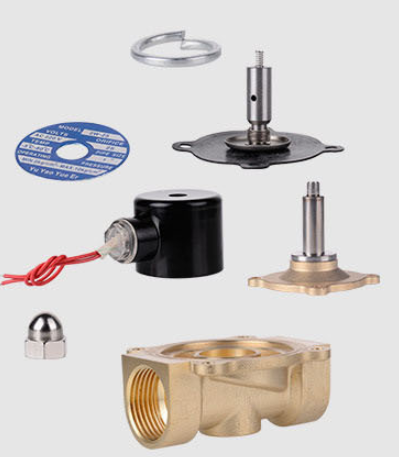

each part of Electromagnetic Water Valve 2W160-10

Notes for installation of brass solenoid valve

1, brass solenoid valve installation should pay attention to the arrow valve body should be consistent with the flow of media. Do not install it where there are direct drops or splashes. Brass solenoid valve should be installed vertically upward.

2. The brass solenoid valve shall be guaranteed to work normally within the range of 15%-10% fluctuation of the rated voltage of the power supply.

3, brass solenoid valve installed, the pipeline shall not have the reverse pressure difference. It needs to be electrified several times to make it warm before it can be officially put into use.

4, brass solenoid valve installation should be thoroughly clean the pipeline. The medium through should be free from impurities. Install strainer before valve.

5, when the brass solenoid valve failure or cleaning, in order to ensure that the system continues to operate, should be installed bypass device.

Brass solenoid valve working principle

Brass solenoid valve solenoid valve in the closed cavity, in different positions open through holes, each hole to a different pipeline, cavity is the middle of the valve, two sides are two electromagnet, which side of the magnet coil energized valve body will be attracted to which side, by controlling the movement of the valve body to block or

Leakage of different oil drainage hole, and the oil inlet hole is often open, the hydraulic oil will enter the different drainage pipe, and then through the oil pressure to push the piston cylinder, piston and piston rod drive the mechanical device to move. This is controlled by controlling the current flow of the electromagnet

Mechanical motion.
