Solenoid Coil For 50 10 360 034 / 50 10 360 036 Febi Bilstein Type Solenoid Valve

This solenoid coi is widely applied in Febi Bilstein type 27356 / 27357 solenoid valve for compressed air system. There is an iron bracket combined outside the magnetic coil. The hole diameter is 15 mm, the height is 33 mm and the width is 33 mm.

The "new battlefield" of electromagnetic coils - automotive field

There are many forms of electromagnetic coils used as actuators for control systems in automobiles, but there are two types of energy conversion methods:

1) Directly powered by electromagnetic energy;

2) The method of driving the oil pressure and the air pressure control valve with a solenoid coil.

Mode 1 is limited to a limited range of automatic door locks for convenience and safety, and fixed gears for automatic transmissions.

Mode 2 has been widely used in various electro-hydraulic systems for the purpose of improving the basic performances such as driving, steering, braking, and comfort of automobiles, in which the electromagnetic coil converts hydraulic pressure or air pressure according to a computer instruction, and drives the electronic Hydraulic control valve or electronic pneumatic control valve.

Technical parameter of 50 10 360 034 / 50 10 360 036 Solenoid Valve Coils:

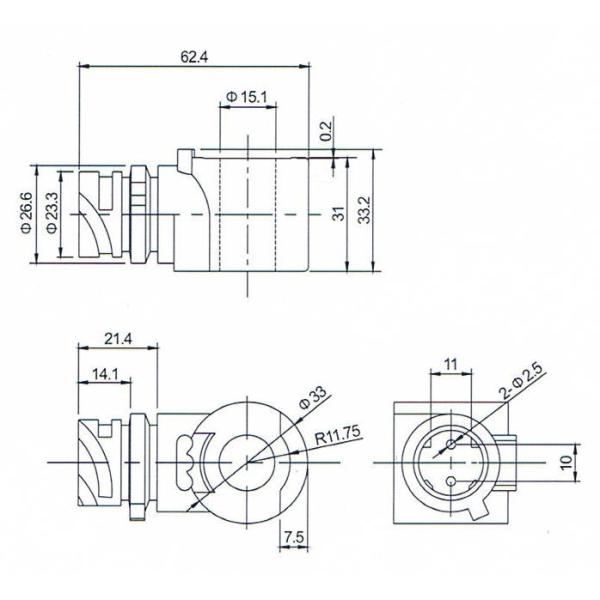

Main dimension of Febi Bilstein Type 27357 / 27356 Solenoid Valve Coils:

Deconstruction diagram of Magnetic Coil For 50 10 360 034 / 50 10 360 036 FEBI Type Solenoid Valve:

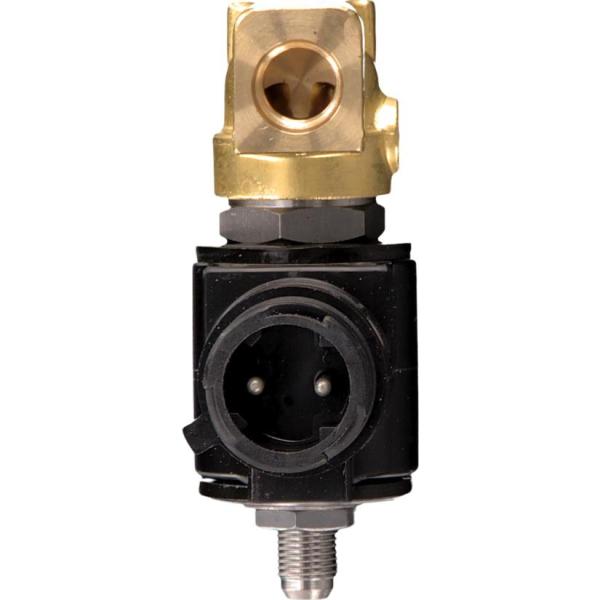

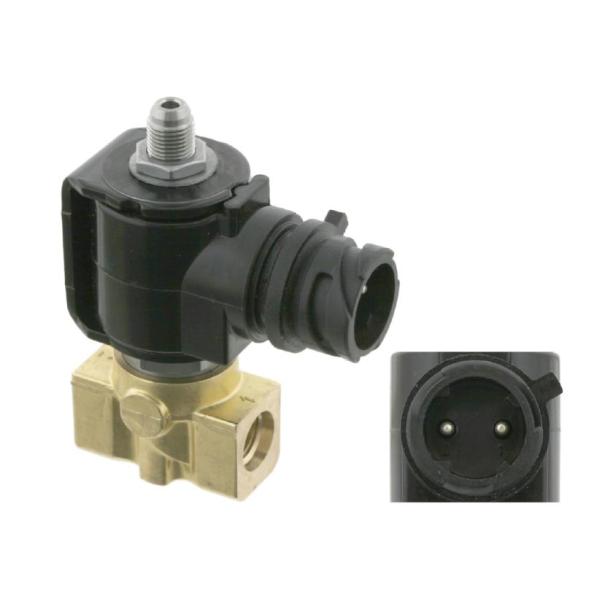

Applied in 50 10 360 034 / 50 10 360 036 Febi Bilstein Type Solenoid Valve:

More details about 50 10 360 034/50 10 360 036 FEBI Type Solenoid Coil in below Youtube Video:

Solenoid valve coils have become an important force in the development of the automotive industry

With the continuous development of the economy and technological innovation, solenoid valve coils are widely used in various industries. Especially in the automotive industry, solenoid valve coils play a large role as control system actuators.

On the one hand, the direct use of electromagnetic power as a means of power, this can only be used in a limited range of automatic transmissions and automatic door locks for the purpose of convenience and safety.

On the other hand, the solenoid valve coil is used to drive the hydraulic pressure and the air pressure control valve. In recent years, it has been widely used in various electronic hydraulic systems for improving the braking, steering, running, and comfort of automobiles. Moreover, the solenoid valve coil exchanges air pressure or hydraulic pressure according to the instruction of the computer to drive the electronic air pressure control valve or the electronic hydraulic control valve.

The emergence of solenoid valve coils has quickly become an extremely important force in the development of the automotive industry, which has played a role in promoting the development of China's automobiles. At present, China's solenoid valve coils are not very mature, and there is still a need for improvement in technology and equipment. We are striving to introduce innovative products that are used in more fields to meet the various needs of consumers.

Welcome to your inquiry!
